Thermostat Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki Aerio and 2003 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain coolant and tighten drain plug.
  2. Remove radiator outlet hose at thermostat cap.
  3. Remove thermostat cap (1).
  4. Remove thermostat.

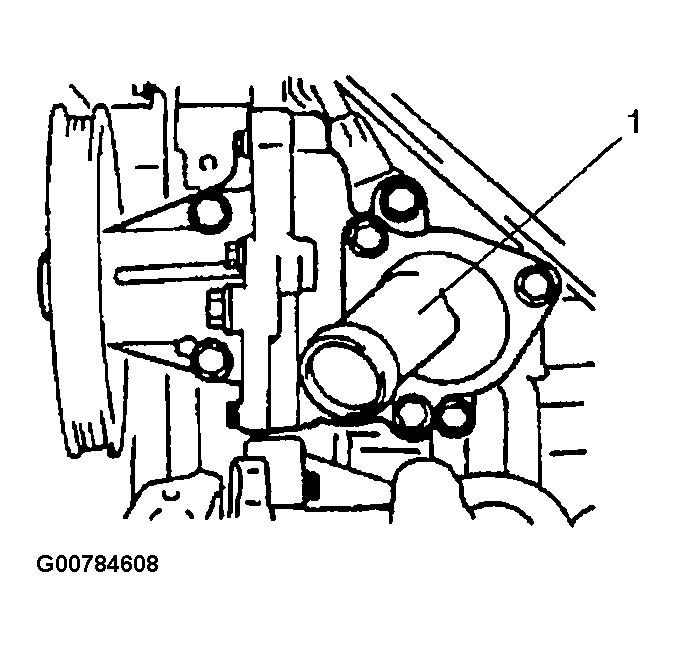

Fig 1: Removing Thermostat
G00784608Courtesy of SUZUKI OF AMERICA CORP.
