Radiator Cooling Fan Removal and Installation: Removal
WARNING: This page is about a different car, the 2004 Suzuki Aerio and 2003 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative cable at battery.
- Remove condenser cooling fan (if equipped with A/C).
- Disconnect connector of radiator cooling fan motor.

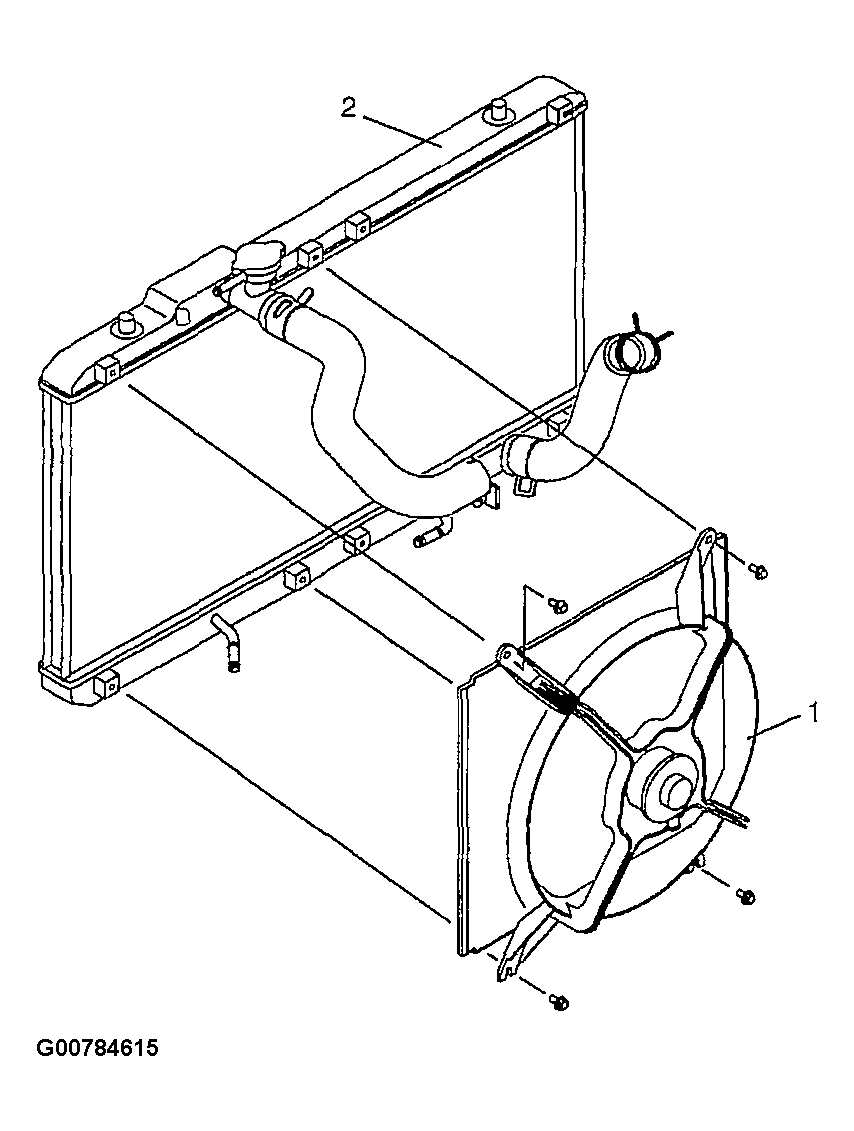

- Remove radiator cooling fan motor (1) from radiator (2)
Courtesy of SUZUKI OF AMERICA CORP.
