Radiator Cooling Fan On-Vehicle Inspection
WARNING: This page is about a different car, the 2004 Suzuki Aerio and 2003 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

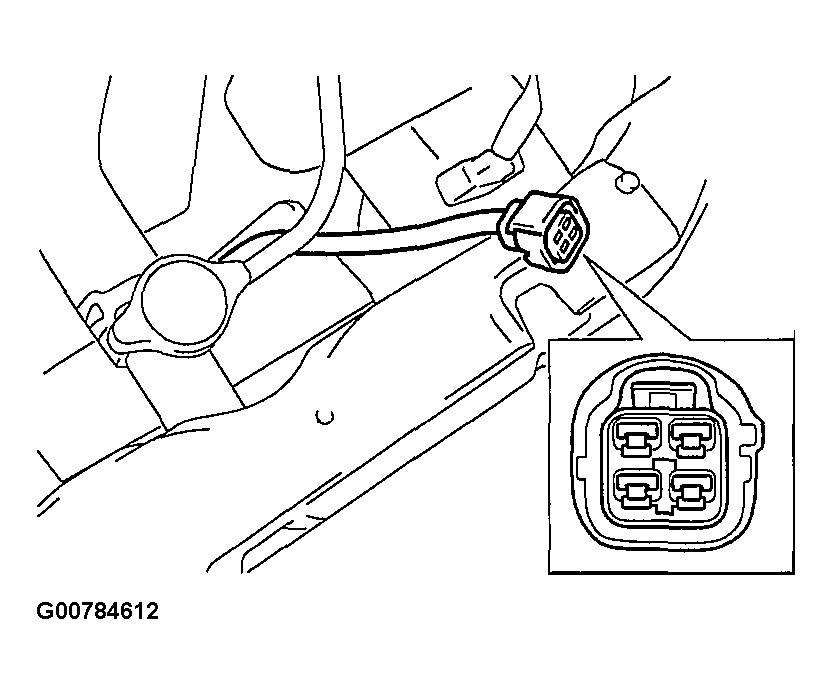

- Check continuity between each terminals.
If there is no continuity, replace radiator fan motor.

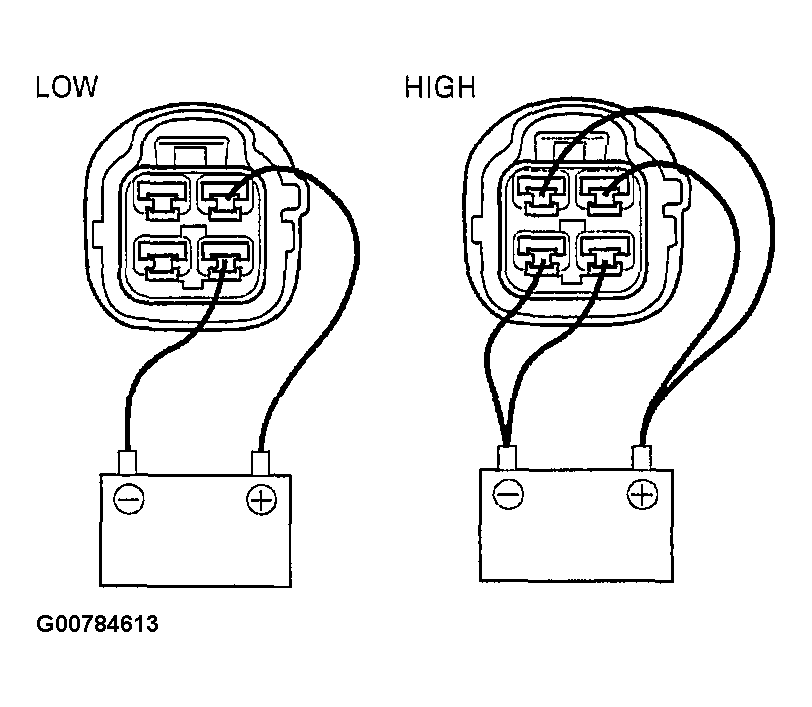

- Connect battery to radiator fan motor coupler as shown in figure, then check that the radiator fan motor operates smoothly, fan speed varies and that specified current.
- If radiator fan motor does not operate smoothly, replace motor.
Radiator cooling fan motor specified current at 12 V
LOW: 10 A maximum
HIGH: 15 A maximum
