EVAP Control System Diagnosis

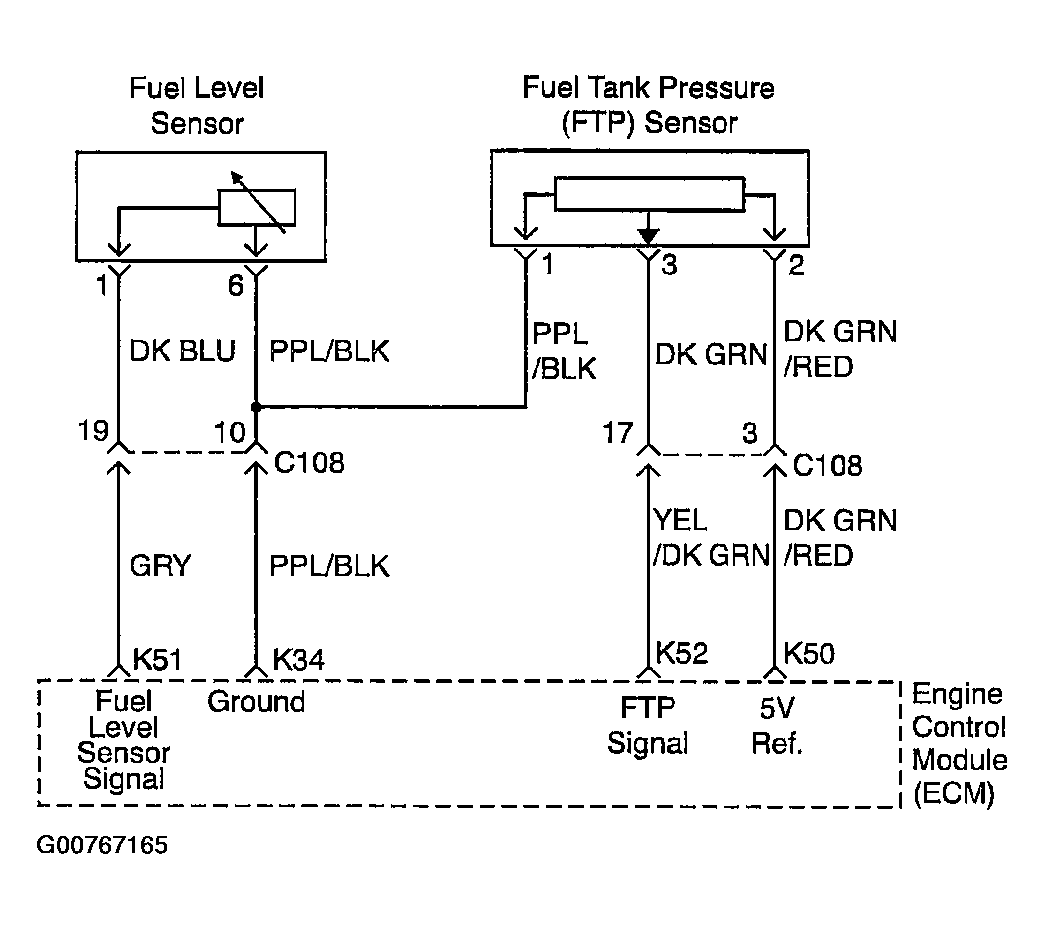

Fig 1: EVAP Control System Diagnosis - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
