Electronic Ignition System Ignition Coil Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the electronic ignition (EI) system ignition coil connector.
  3. Note the ignition wire location and remove the ignition wires.
  4. Remove the EI system ignition coil retaining bolts.
  5. Remove the EI system ignition coil.

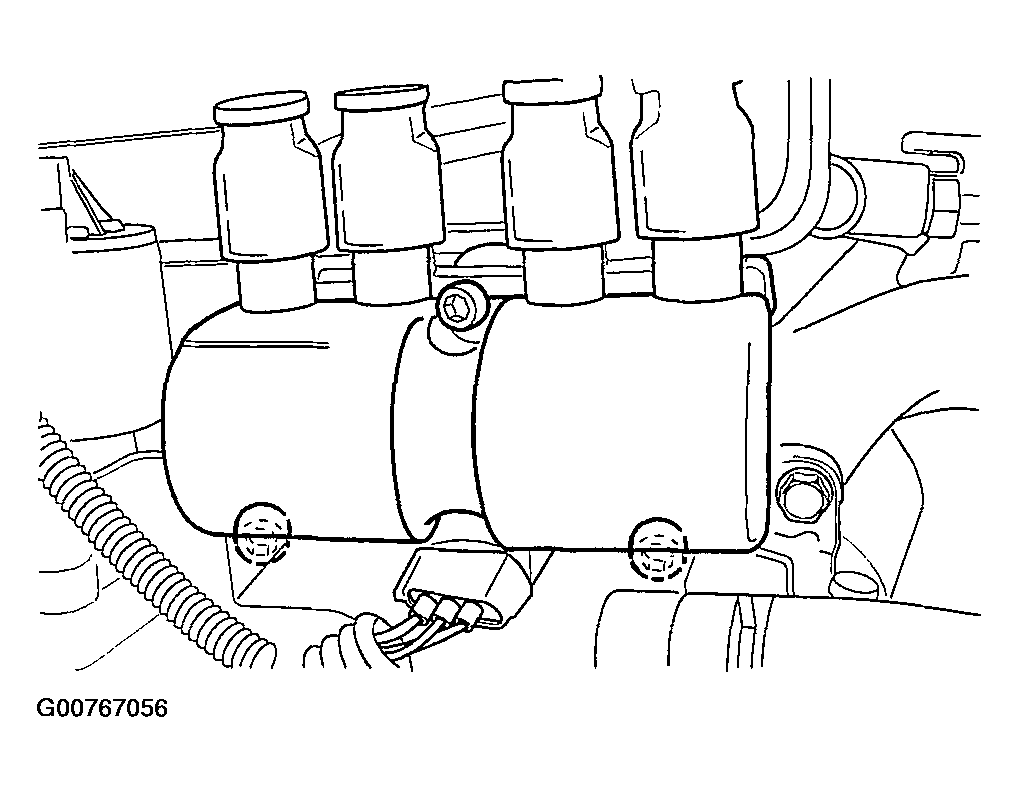

    Fig 1: Removing The EI System Ignition Coil
    G00767056Courtesy of SUZUKI OF AMERICA CORP.
