Electronic Ignition System Ignition Coil Removal and Installation: Installation

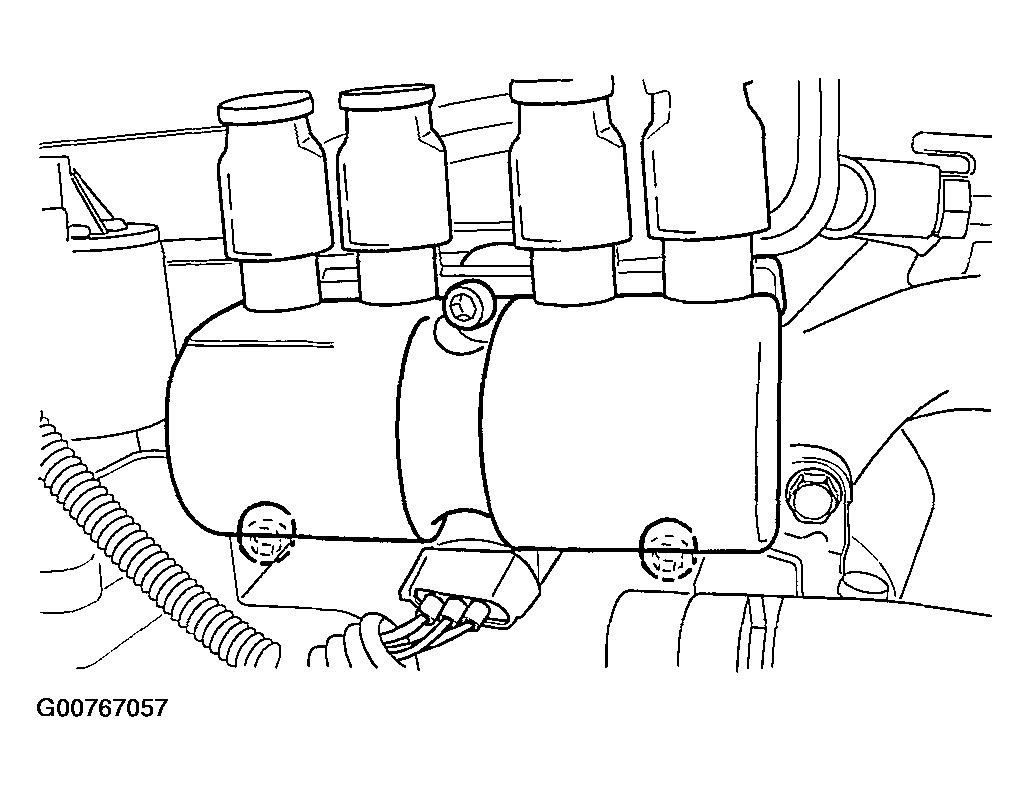

- Install the EI system ignition coil into the mounting location and install the retaining bolts.
Tighten
Tighten the electronic ignition system ignition coil retaining bolts to 10 N.m (89 lb-in).
- Connect the EI system ignition coil connector.
- Install the ignition wires.
- Connect the negative battery cable.
