ECM Wiring Diagrams

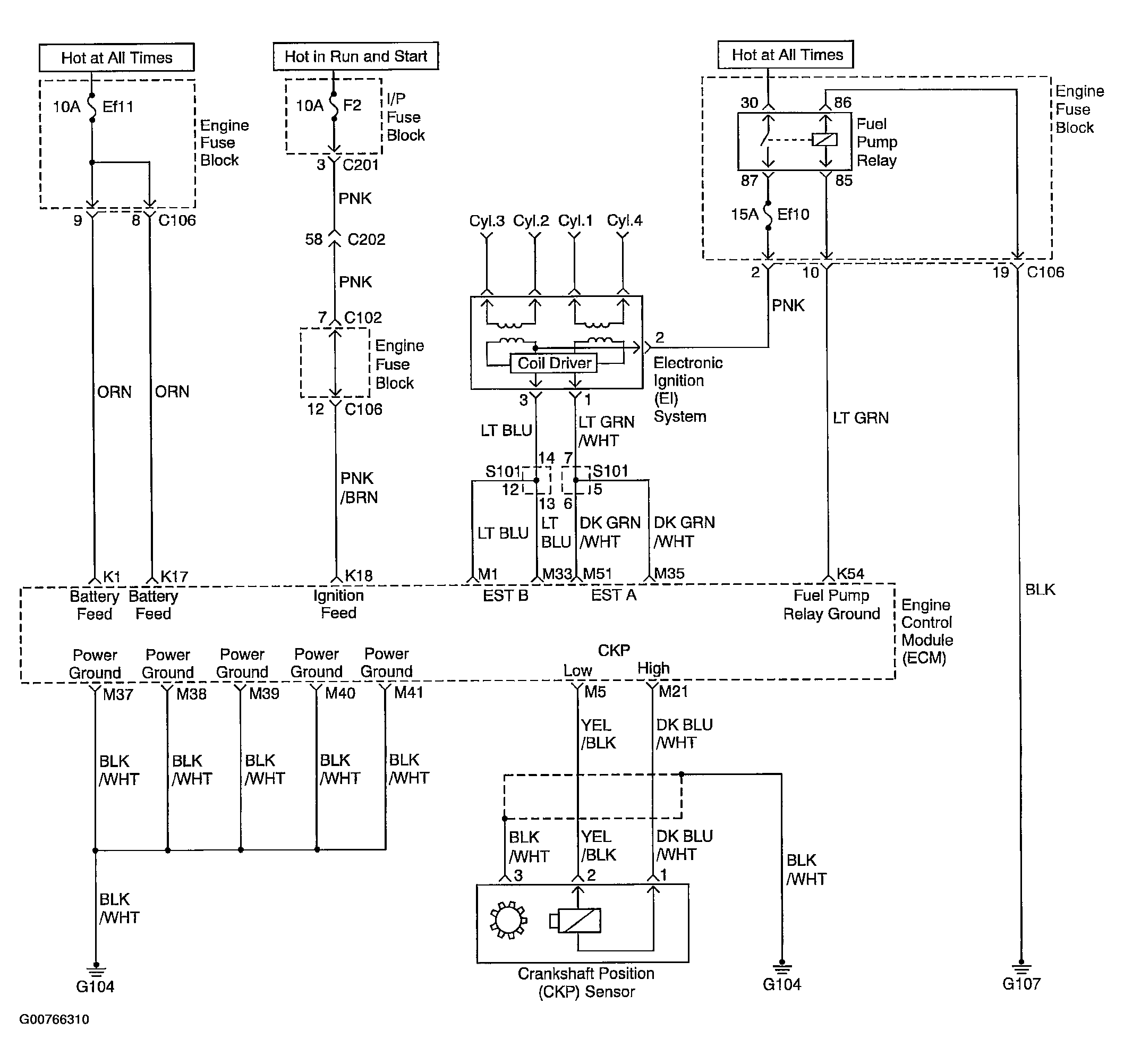

Fig 1: ECM Wiring Diagram (1 Of 6)

G00766310

Courtesy of SUZUKI OF AMERICA CORP.

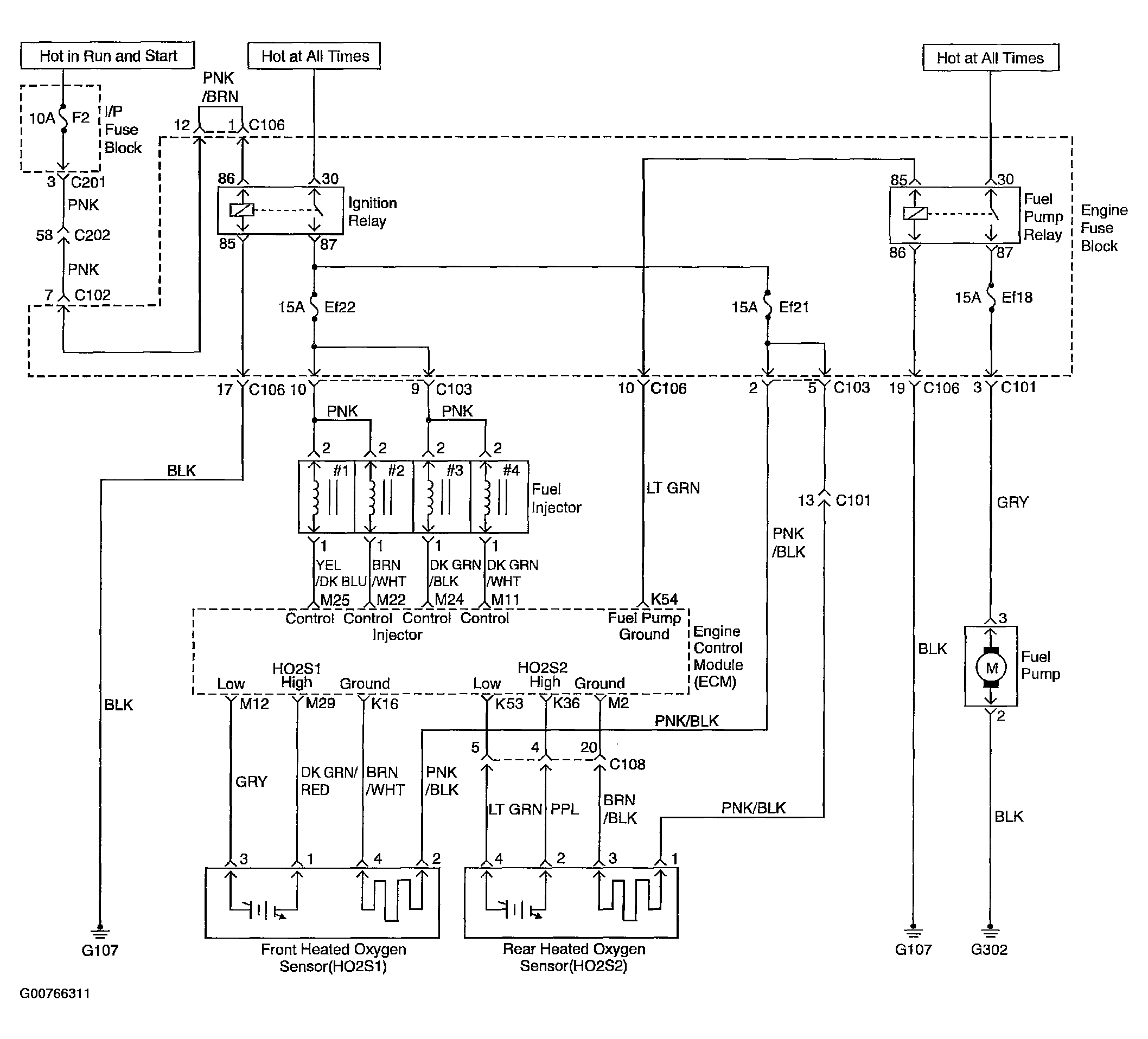

Fig 2: ECM Wiring Diagram (2 Of 6)

G00766311

Courtesy of SUZUKI OF AMERICA CORP.

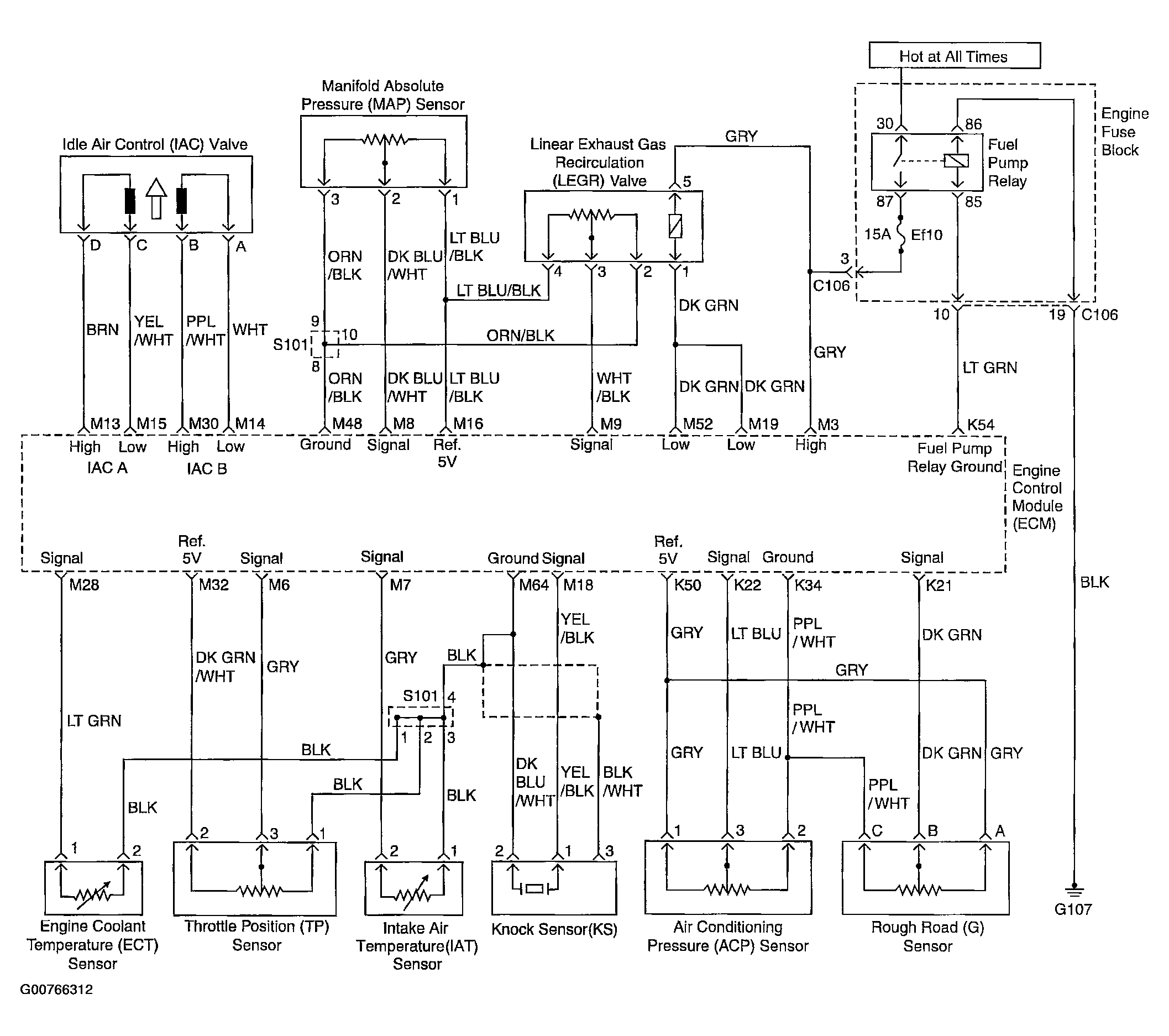

Fig 3: ECM Wiring Diagram (3 Of 6)

G00766312

Courtesy of SUZUKI OF AMERICA CORP.

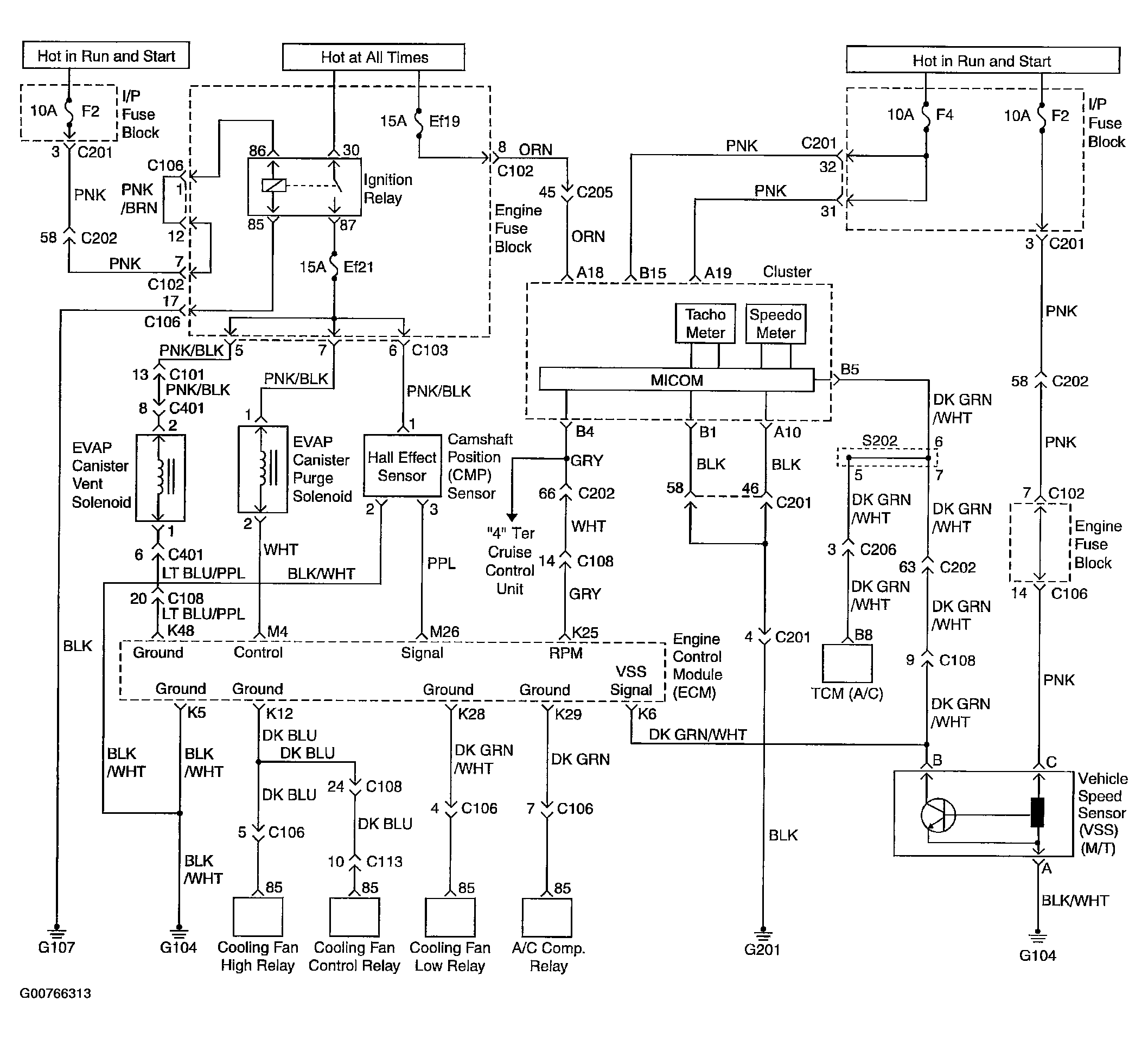

Fig 4: ECM Wiring Diagram (4 Of 6)

G00766313

Courtesy of SUZUKI OF AMERICA CORP.

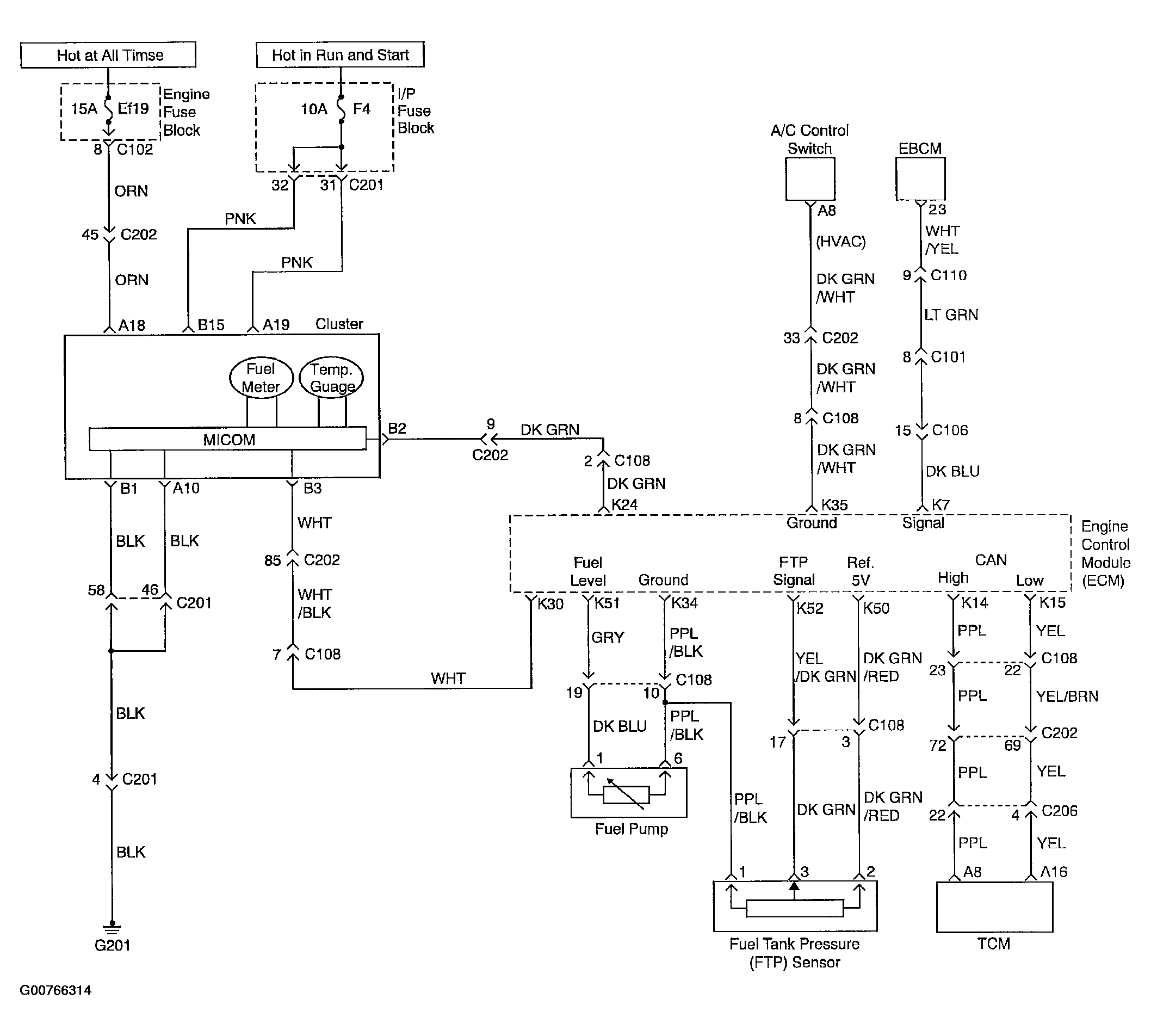

Fig 5: ECM Wiring Diagram (5 Of 6)

G00766314

Courtesy of SUZUKI OF AMERICA CORP.

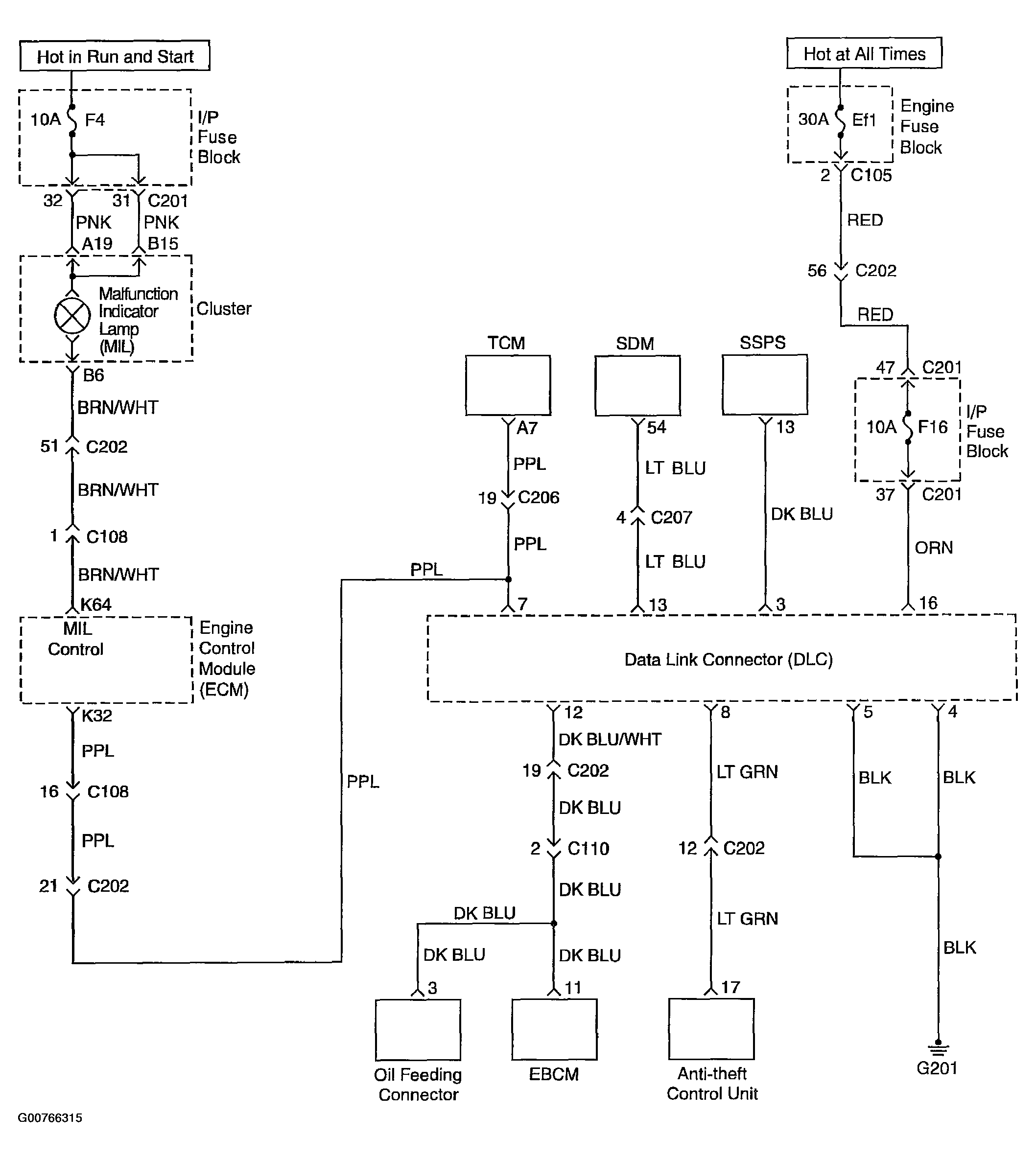

Fig 6: ECM Wiring Diagram (6 Of 6)

G00766315

Courtesy of SUZUKI OF AMERICA CORP.
