Connector End View Diagram

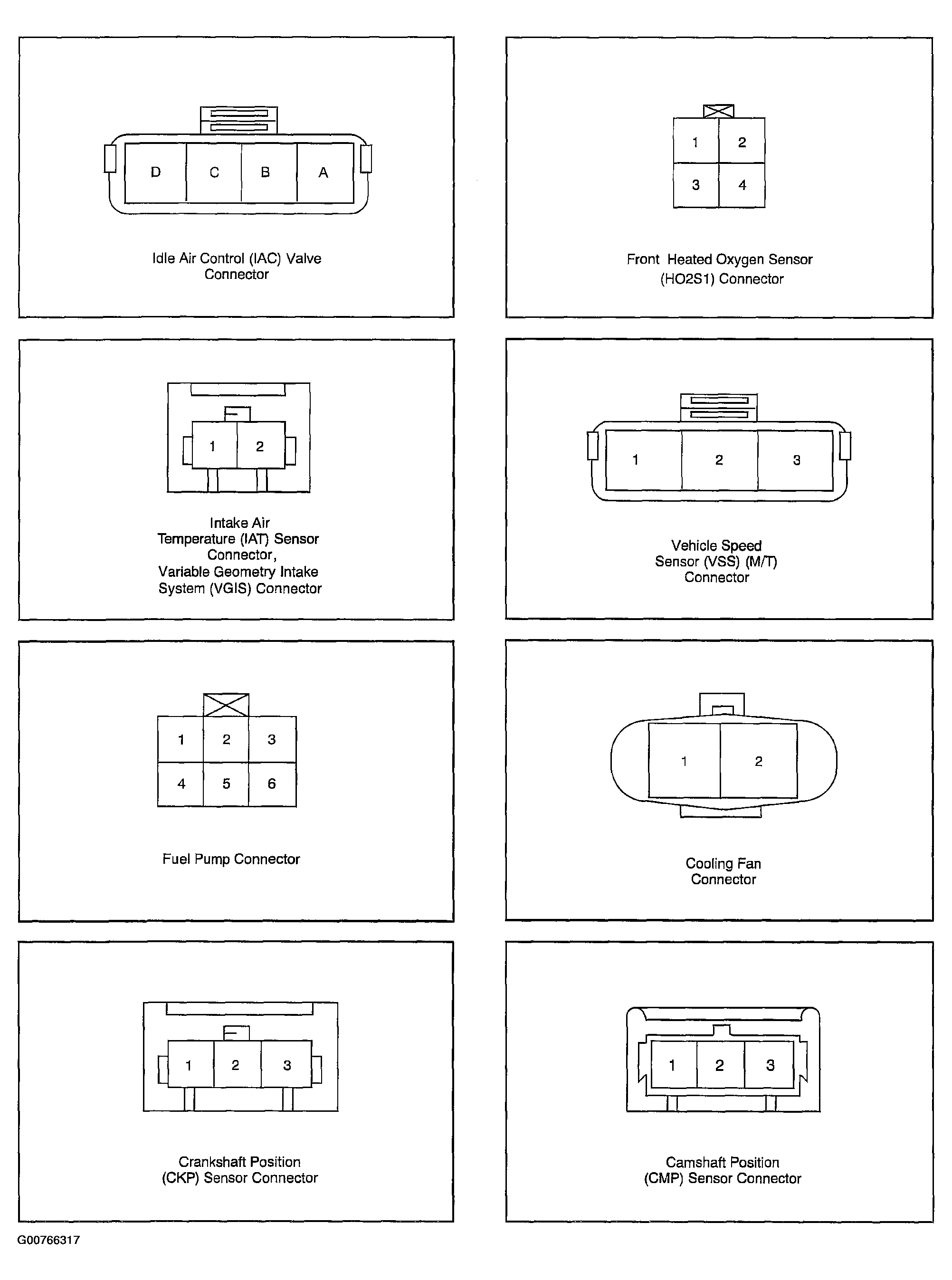

Fig 1: Connector End Views (1 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

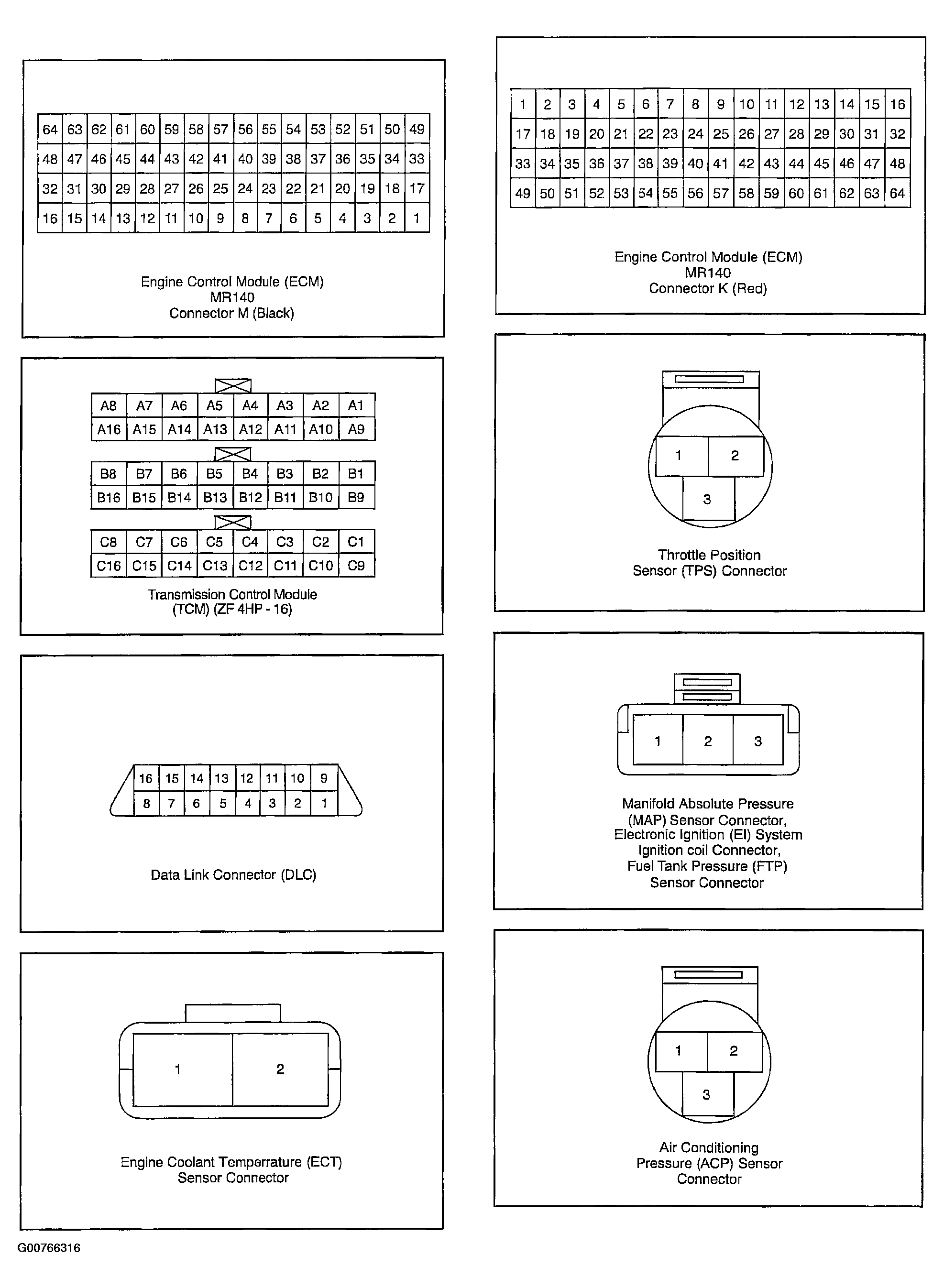

Fig 2: Connector End Views (2 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

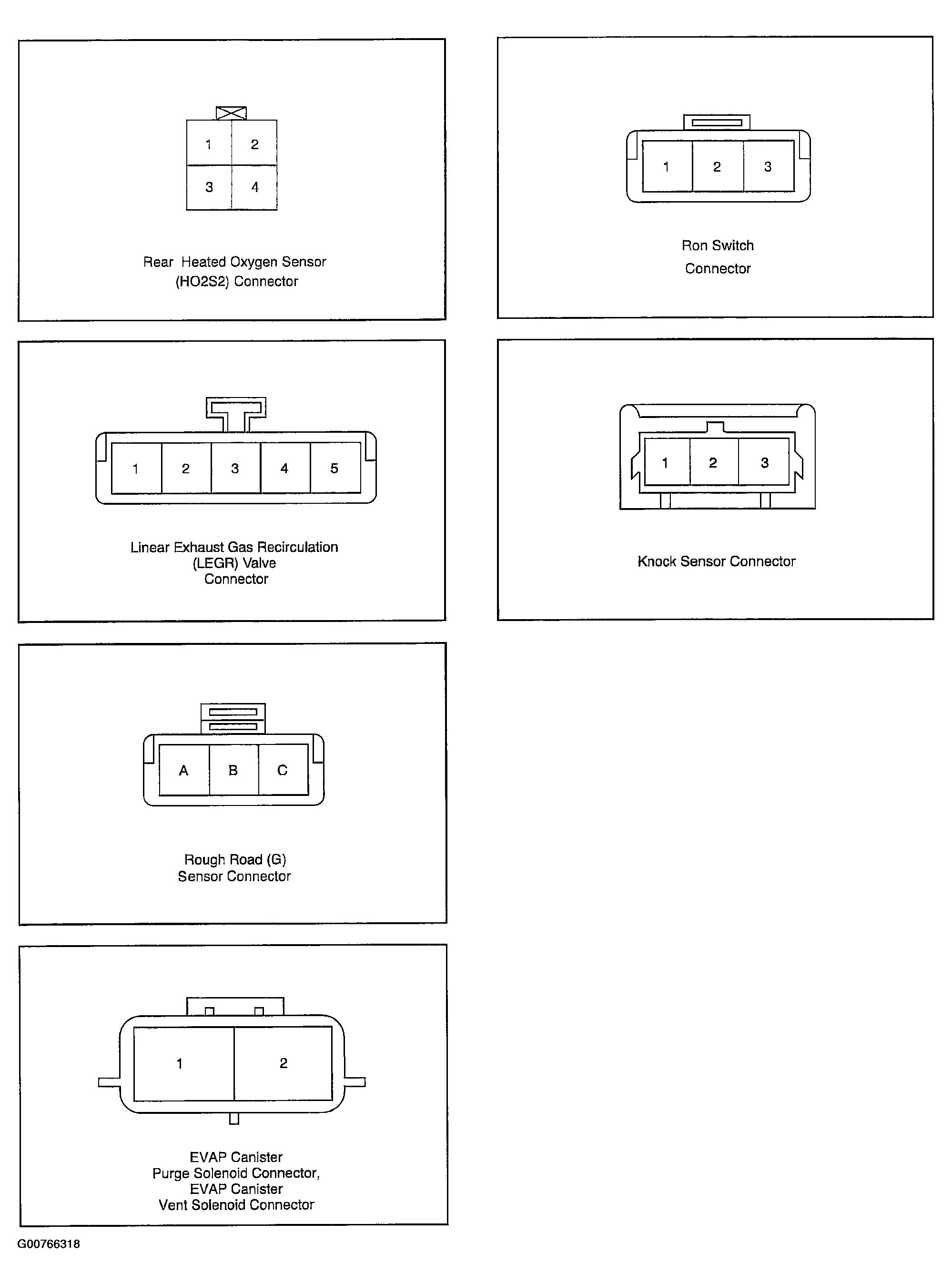

Fig 3: Connector End Views (3 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
