Detonation / Spark Knock

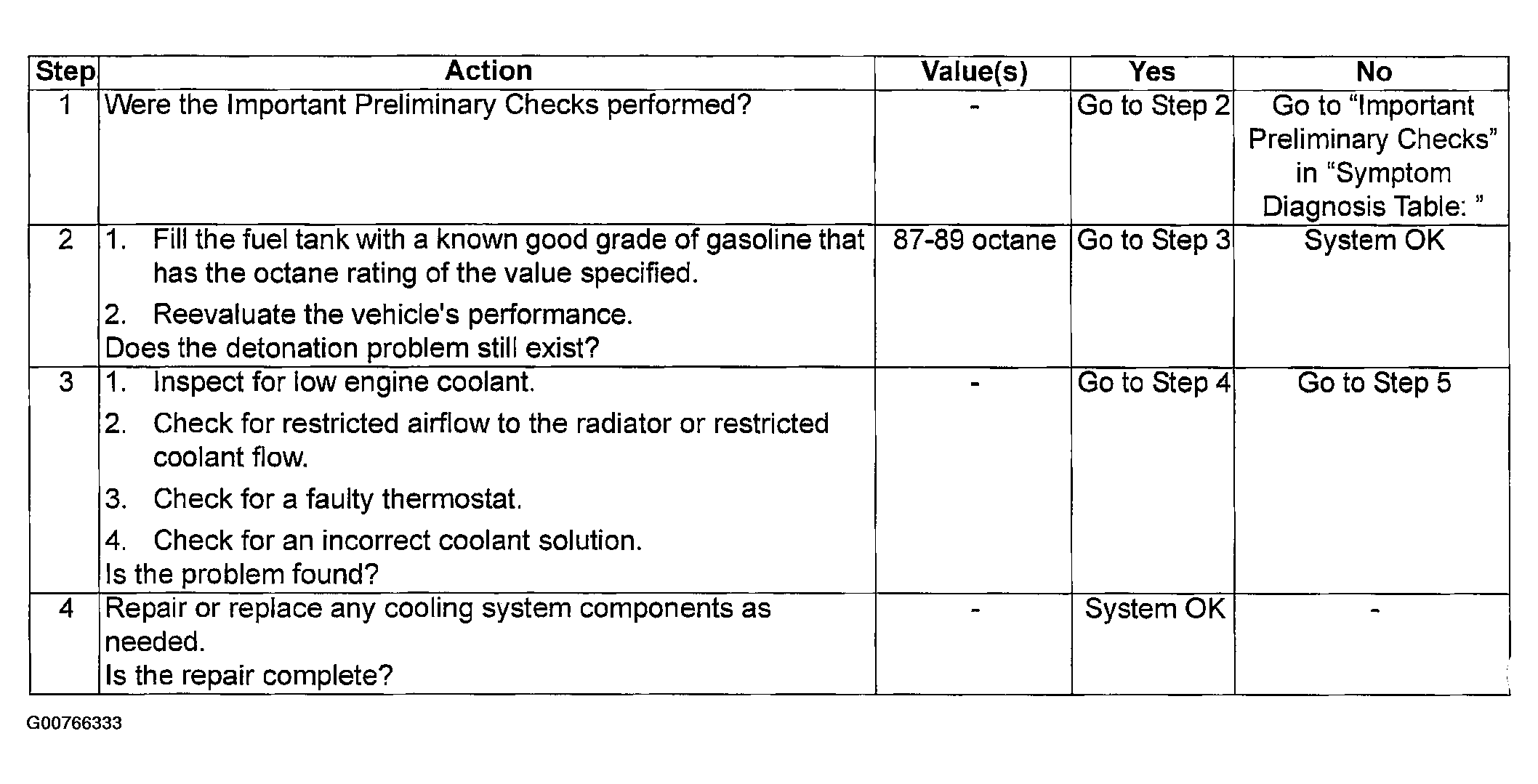

Fig 1: Detonation / Spark Knock Chart (1 Of 2)
G00766333Courtesy of SUZUKI OF AMERICA CORP.

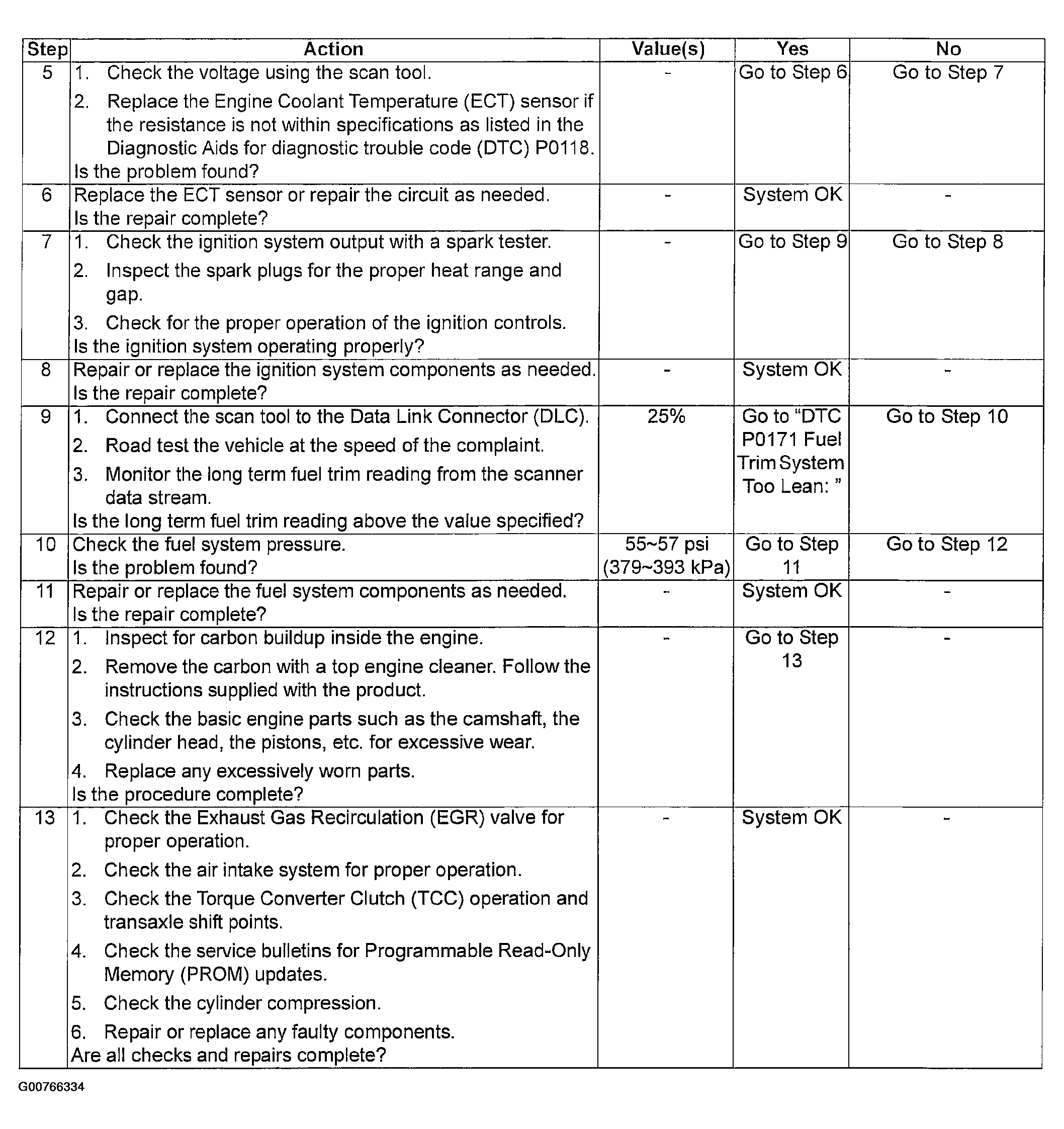

Fig 2: Detonation / Spark Knock Chart (1 Of 2)
G00766334Courtesy of SUZUKI OF AMERICA CORP.
