Cuts Out, Misses

Definition:  This involves a steady pulsation or jerking that follows engine speed, usually more pronounced as engine load increases. The exhaust has a steady spitting sound at idle or low speed.

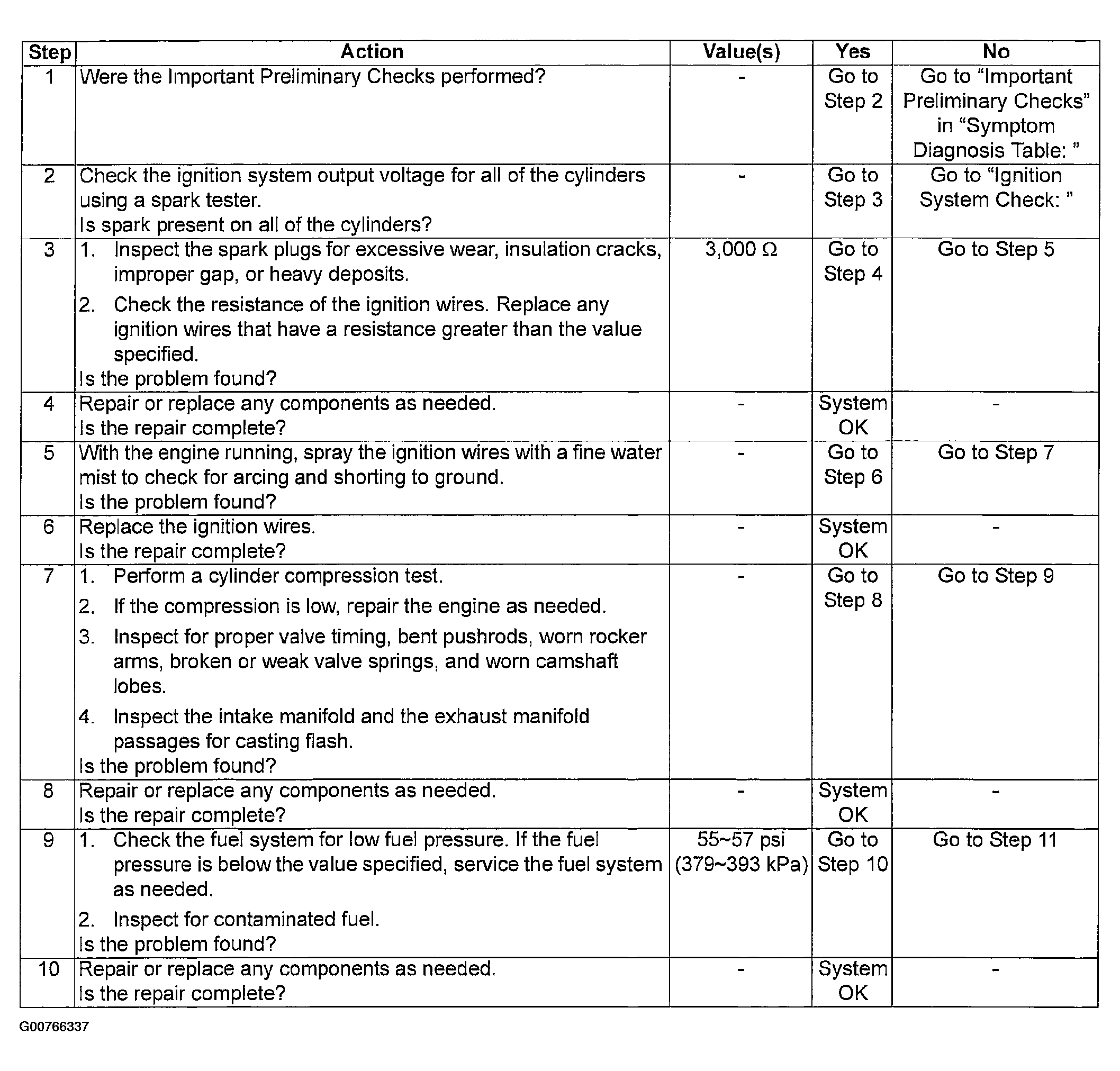

Fig 1: Cuts Out, Misses Chart (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

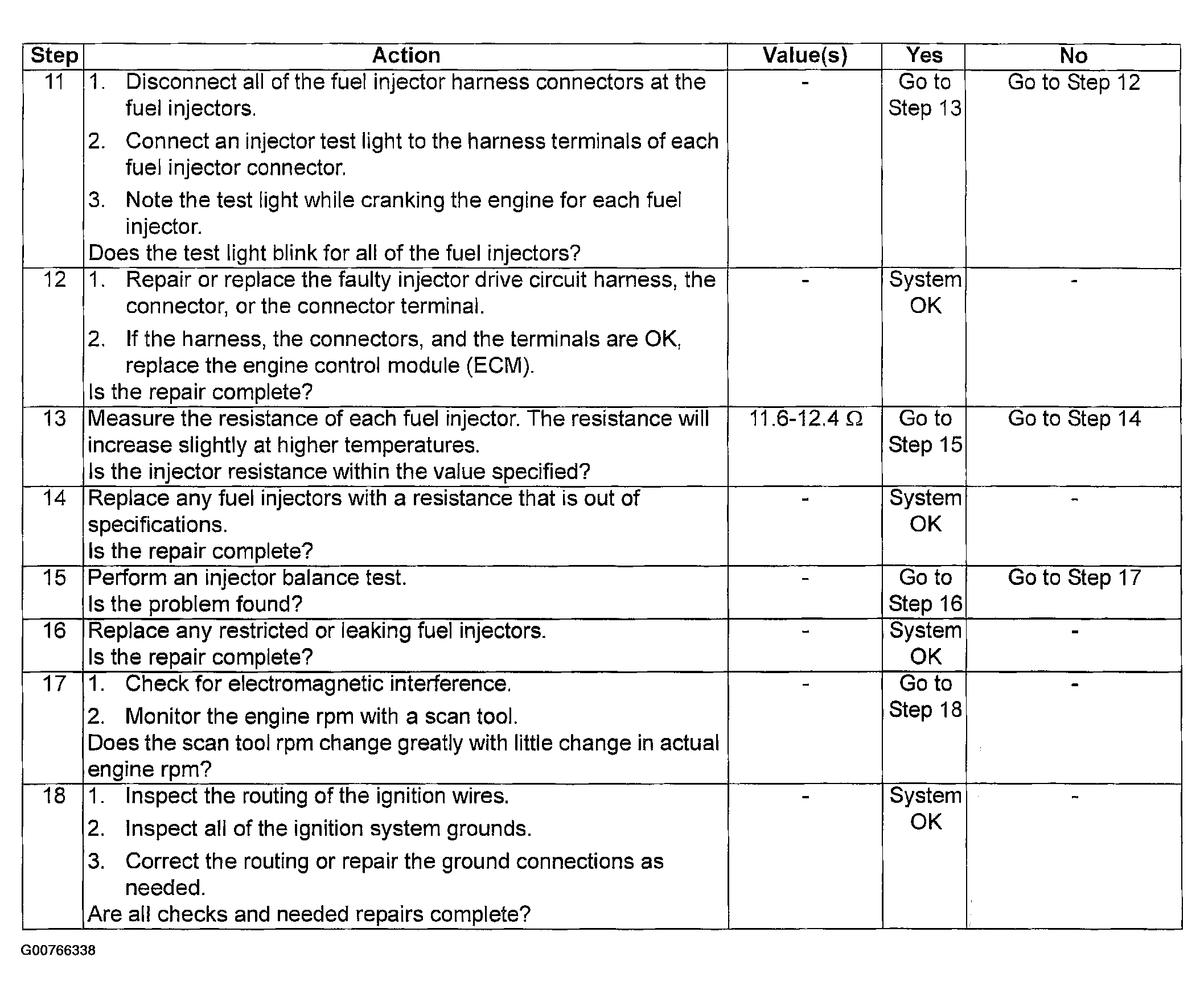

Fig 2: Cuts Out, Misses Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
