DTC P1397: WSSD Rough Road
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P1397: WSSD Rough Road: Notes

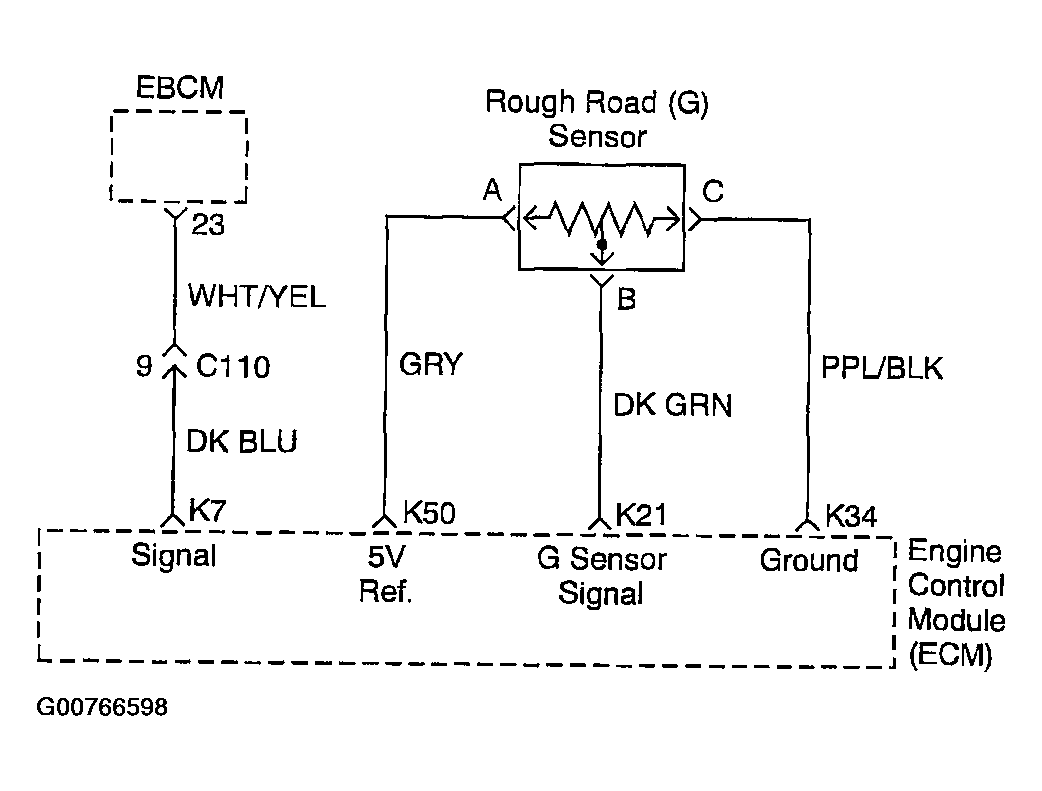

Fig 1: DTC P1397 WSSD Rough Road - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
