DTC P0645: A/C Clutch Output Circuit Fault: Notes

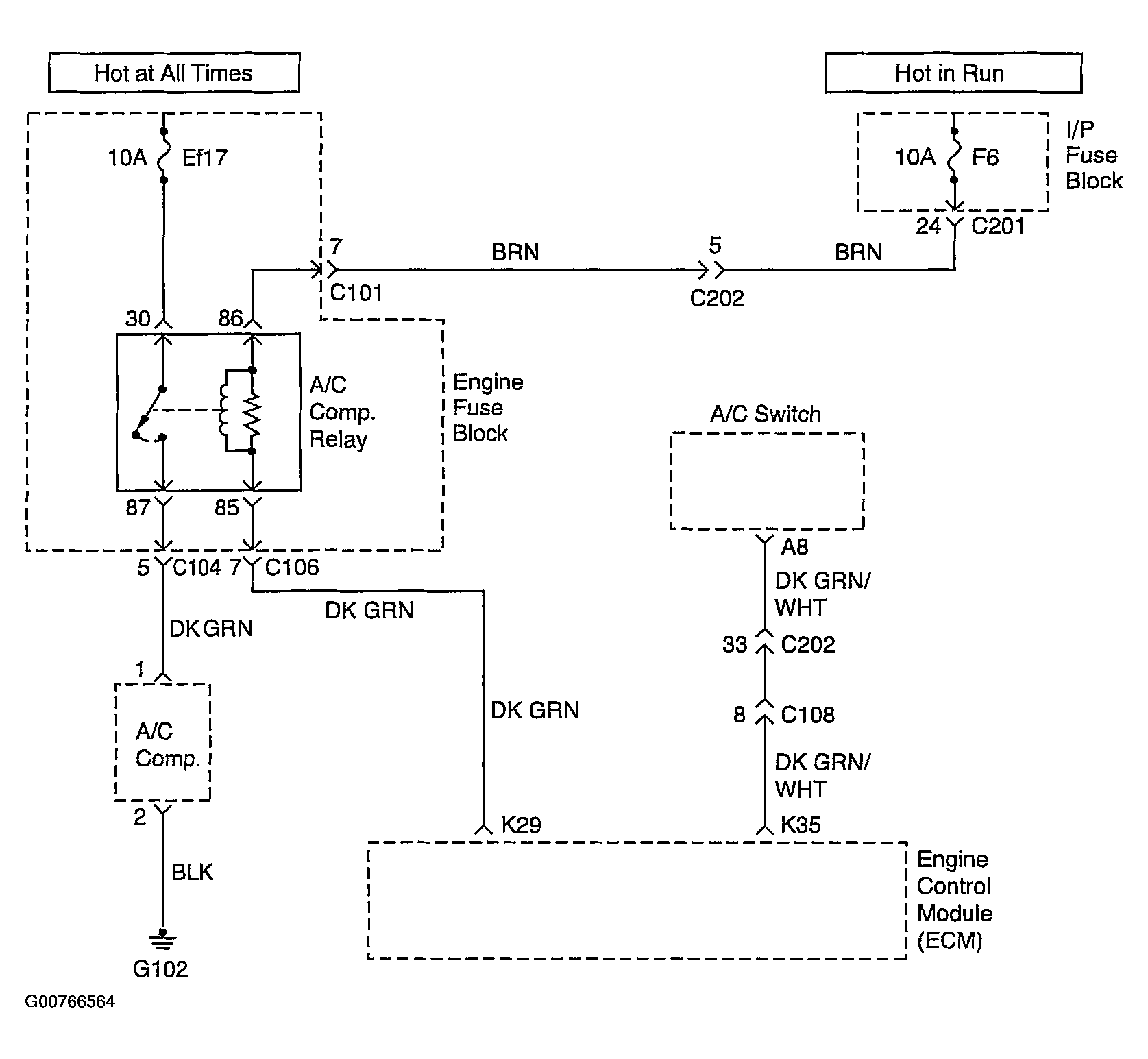

Fig 1: DTC P0645 A/C Clutch Output Circuit Fault - System Wiring Diagram
G00766564Courtesy of SUZUKI OF AMERICA CORP.
