DTC P0506: Idle Speed Rpm Lower than Desired Idle Speed: Notes

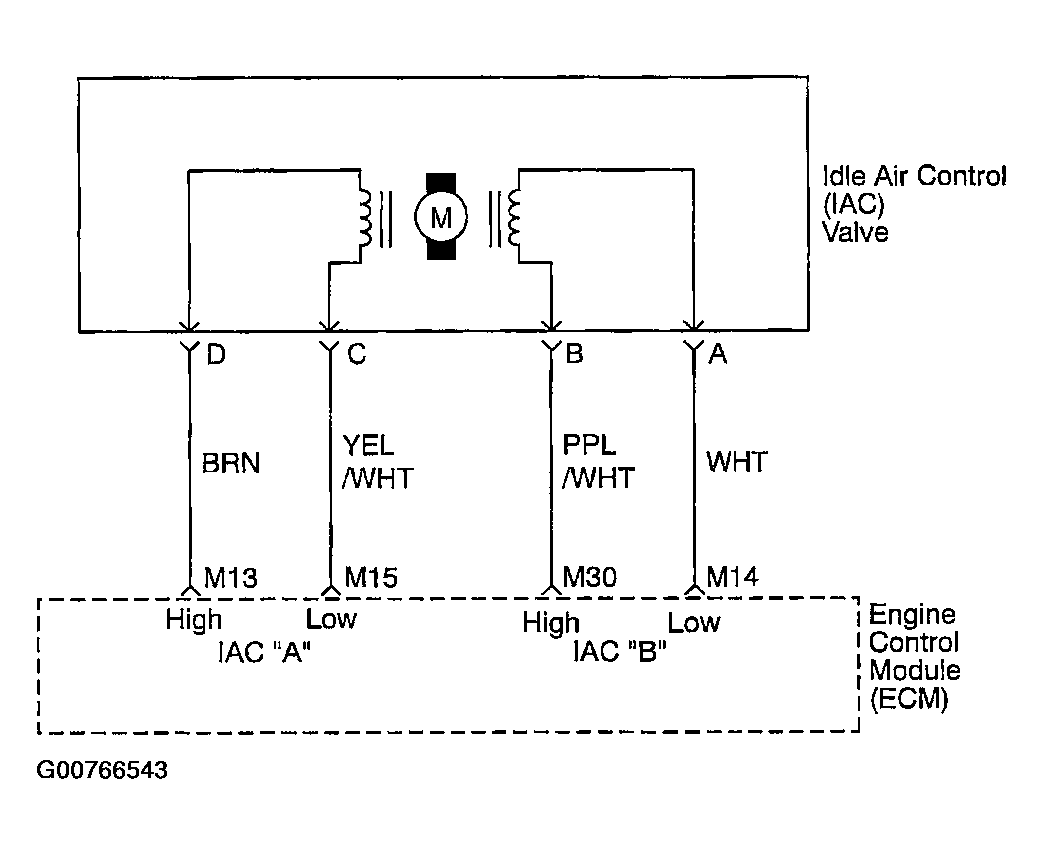

Fig 1: DTC P0506 Idle Speed Rpm Lower than Desired Idle Speed - System Wiring Diagram
G00766543Courtesy of SUZUKI OF AMERICA CORP.
