DTC P0461: Fuel Level Stuck: Notes

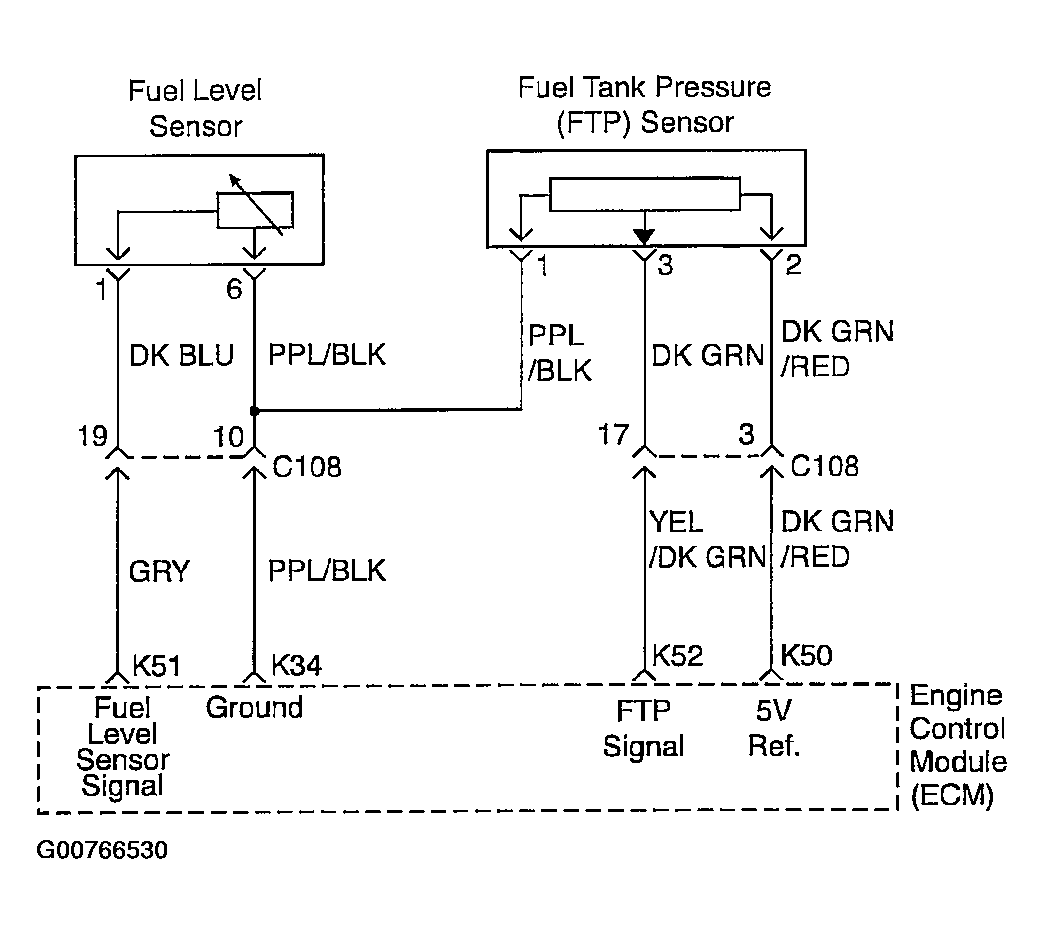

Fig 1: DTC P0461 Fuel Level Stuck - System Wiring Diagram
G00766530Courtesy of SUZUKI OF AMERICA CORP.
