DTC P0351: Ignition Control Circuit A Fault (Cylinder 1 and 4): Notes

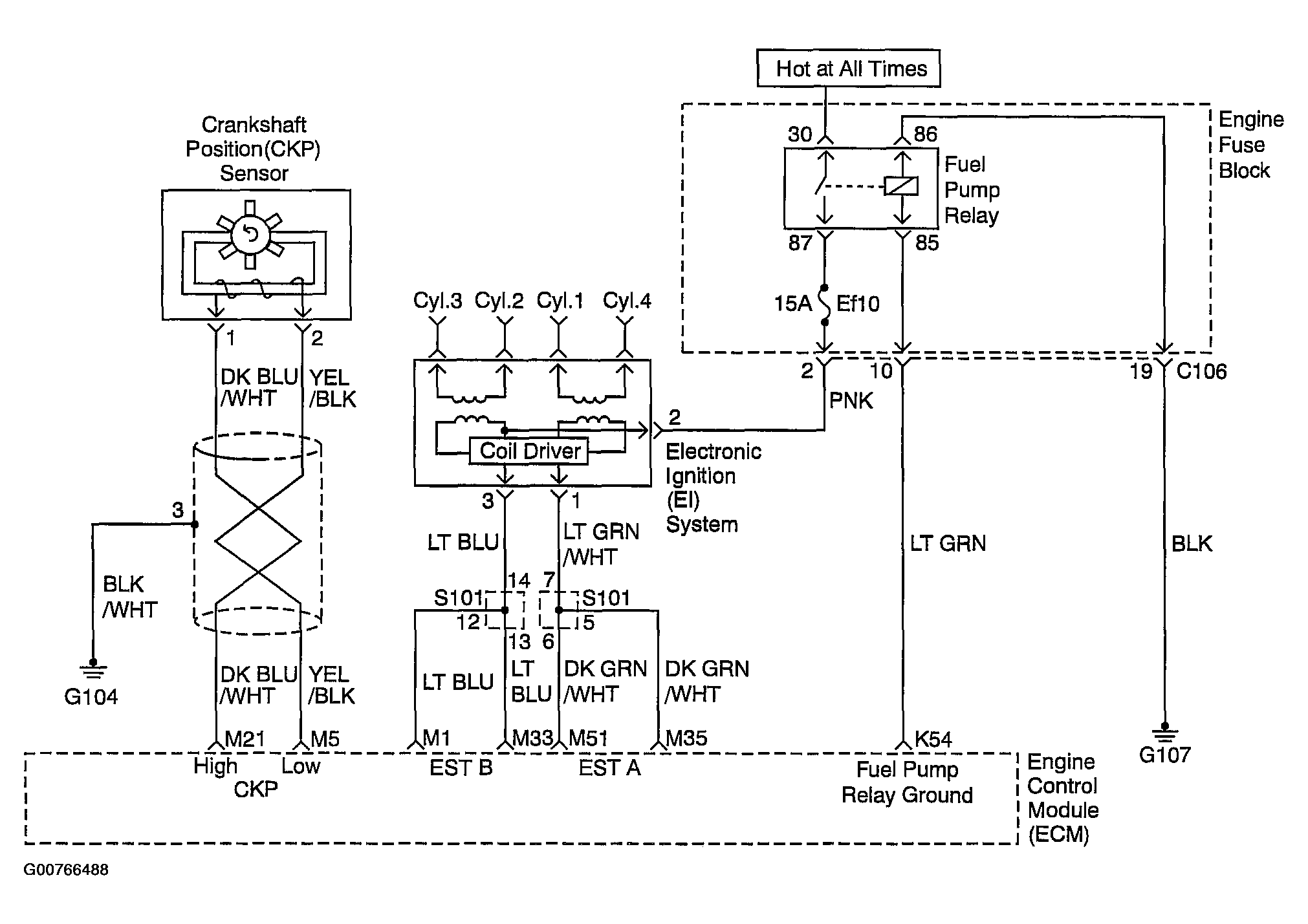

Fig 1: DTC P0351 Ignition Control Circuit A Fault (Cylinder 1 and 4) - System Wiring Diagram
G00766488Courtesy of SUZUKI OF AMERICA CORP.
