DTC P0304: Cylinder 4 Misfire: Notes

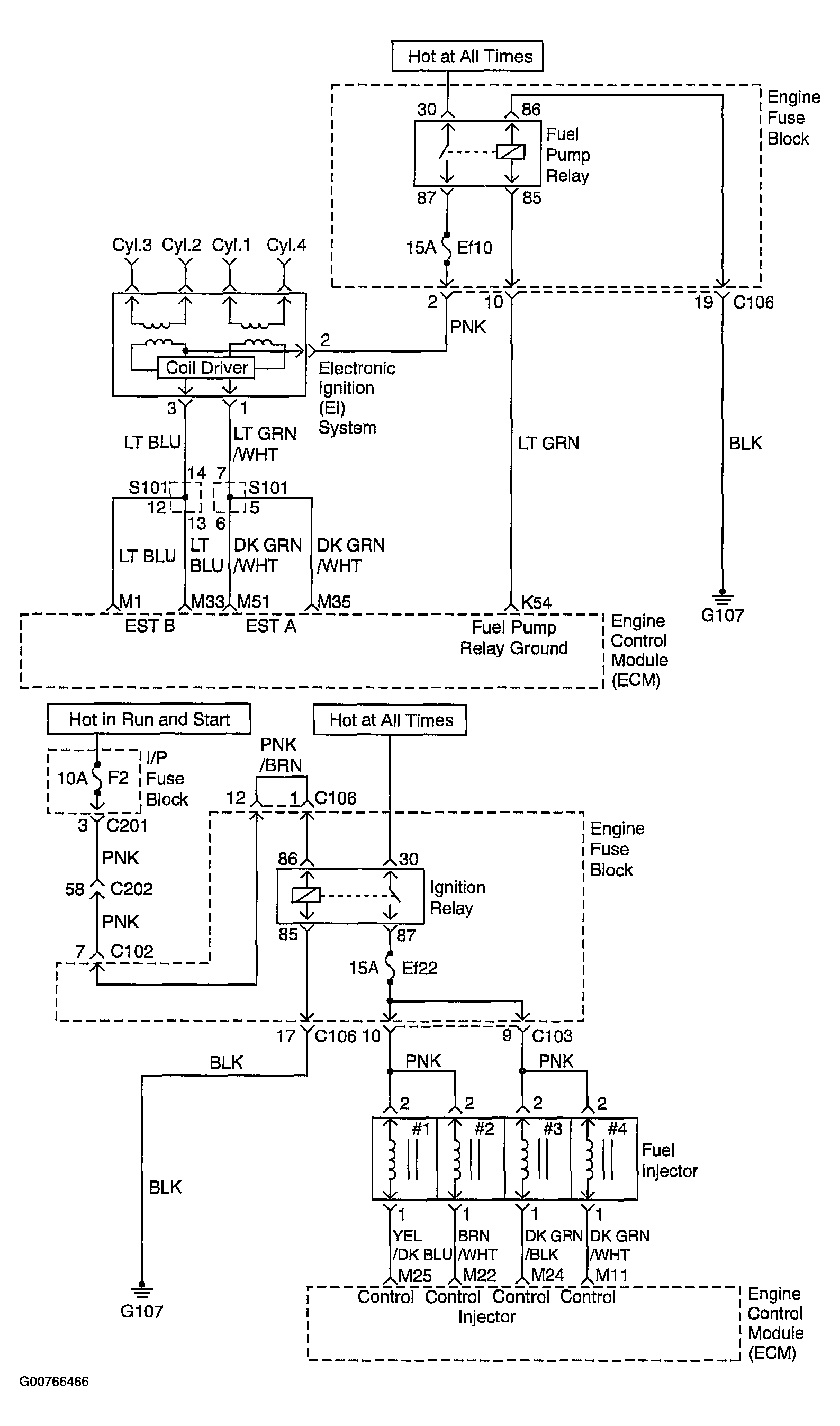

Fig 1: DTC P0304 Cylinder 4 Misfire - System Wiring Diagram

G00766466

Courtesy of SUZUKI OF AMERICA CORP.
