| Automatic Tensioner Bolt |
18 (25) |
| Camshaft Bearing Bridge & Oil Pan Scraper Bolt |
15 (20) |
| Connecting Pipe Retaining Nut |
26 (35) |
| Connecting Rod Bearing Cap Bolt |
26 (35) |
| Crankshaft Bearing Bridge/Oil Pan Scraper Bolt |
15 (20) |
| Crankshaft Bearing Cap Bolt |
37 (50) |
| Crankshaft Gear Bolt |
107 (145) |
| Crankshaft Pulley Bolt |
15 (20) |
| Cylinder Head Bolt |
18 (25) |
| Direct Ignition System Coil & Exhaust Gas Recirculation Mounting Bracket Bolt |
18 (25) |
| Engine Mount Bracket Retaining Bolt/Nut |
41 (55) |
| Engine Mount Retaining Bolt |
33 (45) |
| Engine-To-Intake Manifold Support Bracket Bolt |
15 (20) |
| Exhaust Camshaft Gear Bolt |
37 (50) |
| Exhaust Flex Pipe-To-Exhaust Manifold Retaining Nut |
26 (35) |

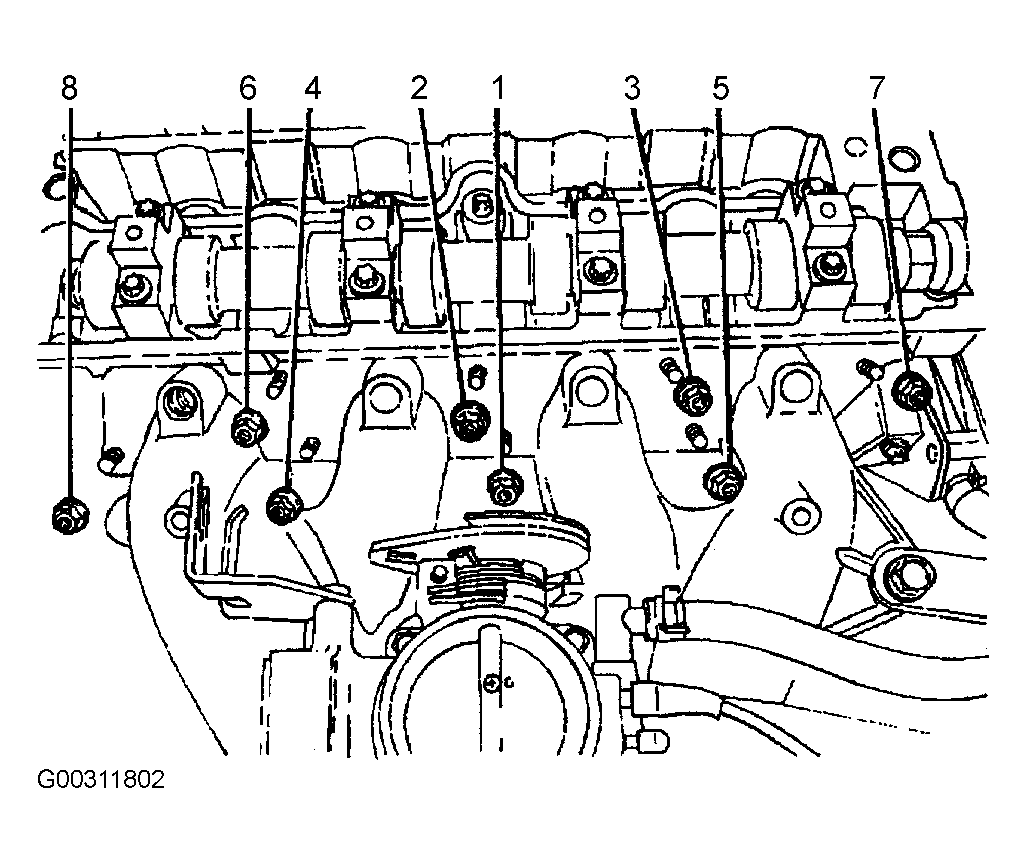

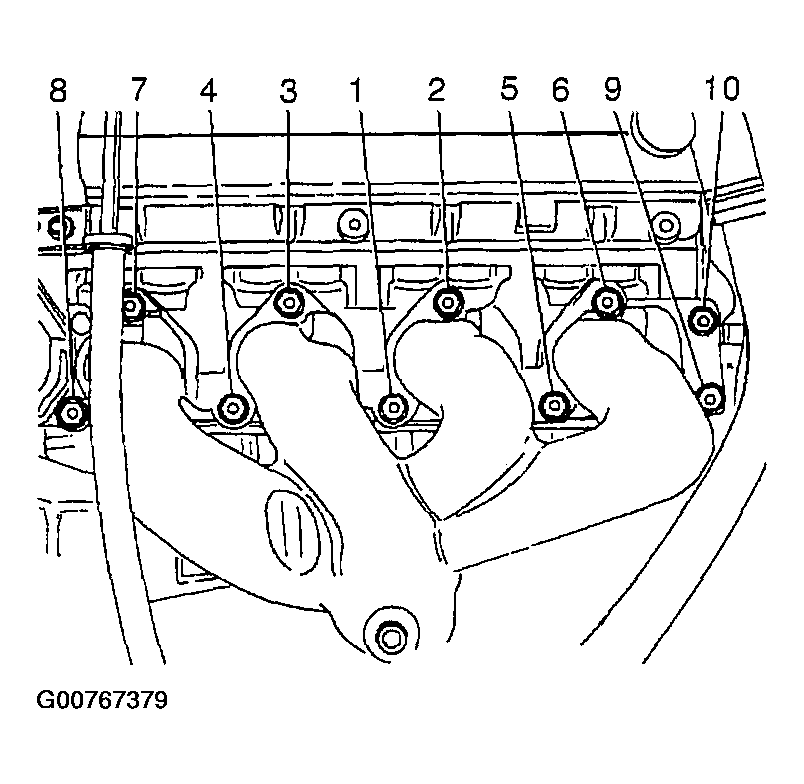

| Exhaust Manifold Retaining Nut |
16 (22) |
| Flexible Plate Bolt |
33 (45) |
| Flywheel Bolt |
48 (65) |
| Generator-To-Intake Manifold Strap Bracket Bolt |
16 (22) |
| Generator-To-Intake Manifold Support Bracket Bolt |
27 (37) |
| Intake Camshaft Gear Bolt |
37 (50) |
| Intake Manifold Retaining Bolt/Nut |
16 (22) |
| Intake Manifold Support Bracket Lower Bolt |
18 (25) |
| Intake Manifold Support Bracket Upper Bolt |
18 (25) |
| Lower Block Support Bracket & Splash Shield Bolt |
26 (35) |
| Lower Reaction Rod Bracket Bolt |
51 (69) |
| Lower Reaction Rod Mount Bolt |
41 (55) |
| Oil Pan Drain Plug |
26 (35) |
| Oil Pan Flange-To-Transaxle Bolt |
30 (40) |
| Oil Pressure Switch |
30 (40) |
| Safety Relief Valve Bolt |
26 (30) |
| Spark Plugs |
15 (20) |
| Timing Belt Automatic Tensioner Bolt |
18 (25) |
| Timing Belt Idler Pulley Bolt |
18 (25) |
| Timing Belt Idler Pulley Nut |
18 (25) |
| Transaxle Bell Housing Bolt |
55 (75) |
| Transaxle Torque Converter Bolt |
44 (60) |
| Water Pump Mounting Bolt |
18 (25) |
| INCH Lbs. (N.m) |
| Air Cleaner Housing Bolt |
88 (10) |

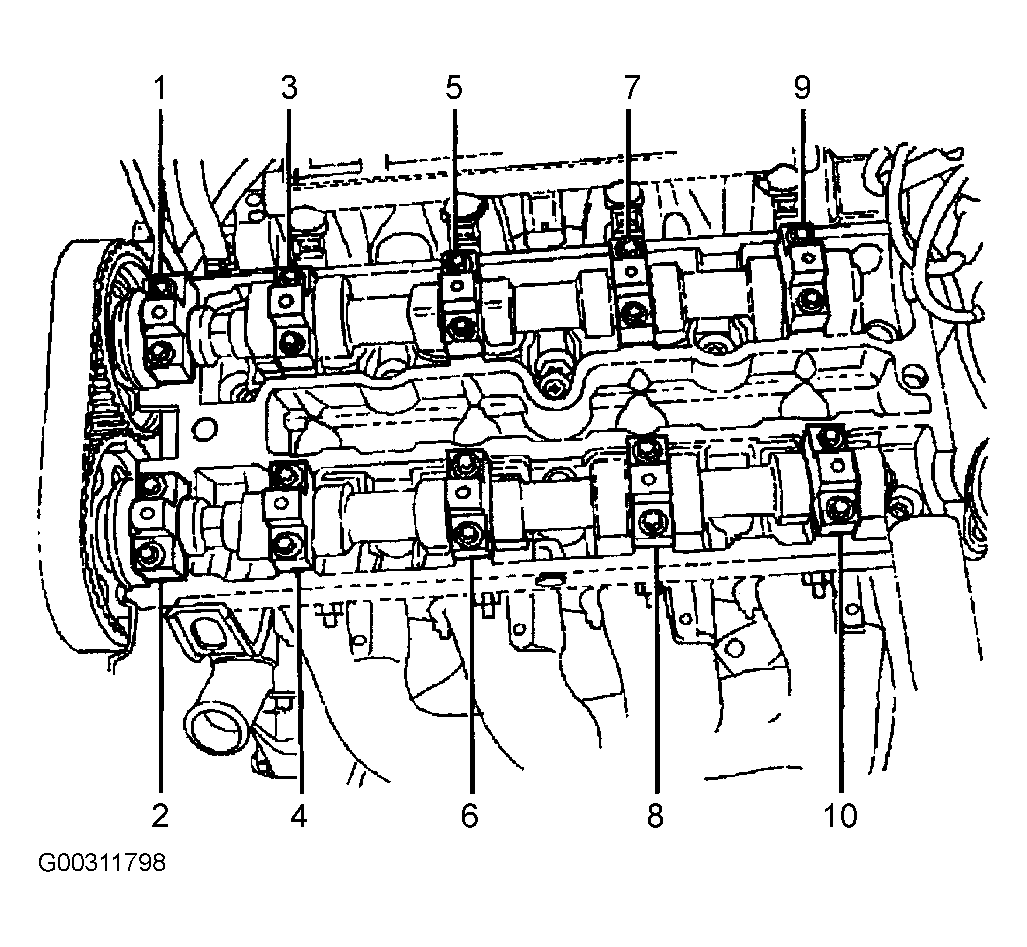

| Camshaft Bearing Cap Bolt |
71 (8) |
| Camshaft Cover Bolt |
71 (8) |
| Charcoal Canister Purge & Exhaust Gas Recirculation Solenoid Bracket Bolt |
71 (8) |
| Coolant By-Pass Housing & Mounting Bolt |
133 (15) |
| Exhaust Manifold Heat Shield Bolt |
71 (8) |
| Front Timing Belt Cover Bolt |
53 (6) |
| Oil Pan Retainer Bolt |
88 (10) |
| Oil Pump Rear Cover Bolt |
53 (6) |
| Oil Pump Retainer Bolt |
88 (10) |
| Oil Suction Pipe Bolt |
71 (8) |
| Oil Suction Pipe Support Bracket Bolt |
88 (10) |
| Pulse Pick-Up Sensor Disc |
115 (13) |
| Rear Timing Belt Cover Bolt |
62 (7) |
| Spark Plug Cover Bolt |
71 (8) |
| Thermostat Housing Mounting Bolt |
133 (15) |
| Throttle Cable Bracket Bolt |
71 (8) |
