Fuel Rail and Injectors Removal and Installation: Installation

CAUTION: Different injectors are calibrated for different flow rates. When ordering new fuel injectors, be certain to order the identical part number that is inscribed on the old injector.
  1. Lubricate the new fuel injector O-rings with engine oil. Install the new O-rings on the fuel injectors.
  2. Install the fuel injectors into the fuel rail sockets with the fuel injector terminals facing outward.
  3. Install the fuel injector retaining clips onto the fuel injector and the fuel rail ledge.
  4. Make sure that the clips are parallel to the fuel injector harness connector.
    Fig 1: Installing The Fuel Injector
    G00767026Courtesy of SUZUKI OF AMERICA CORP.
  5. Install the fuel rail assembly into the cylinder head.

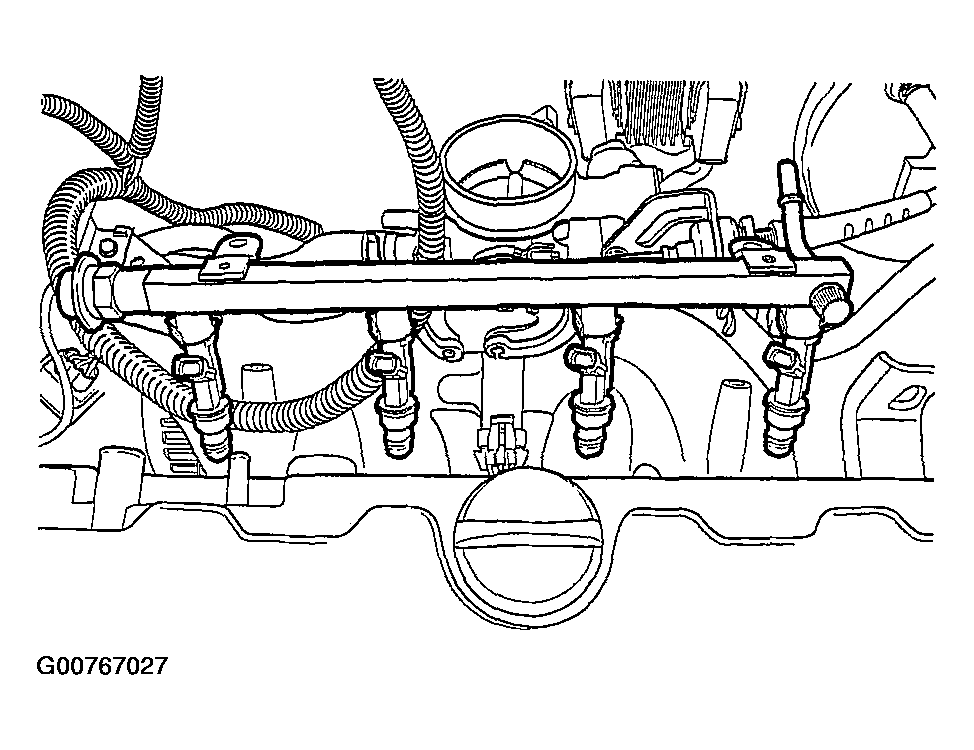

    Fig 2: Installing The Fuel Rail Assembly
    G00767027Courtesy of SUZUKI OF AMERICA CORP.
  6. Install the fuel rail retaining bolts.

    Tighten

    Tighten the fuel rail retaining bolts to 25 N.m (18 lb-ft).

  7. Connect the fuel feed line to the fuel rail.
  8. Connect the fuel injector connectors. Rotate each fuel injector as required.
  9. Connect the PCV hose to the valve cover.
  10. Connect the breather hose to the valve cover.
  11. Connect the IAT sensor connector.
  12. Connect the negative battery cable.
  13. Perform a leak check of the fuel rail and fuel injectors.

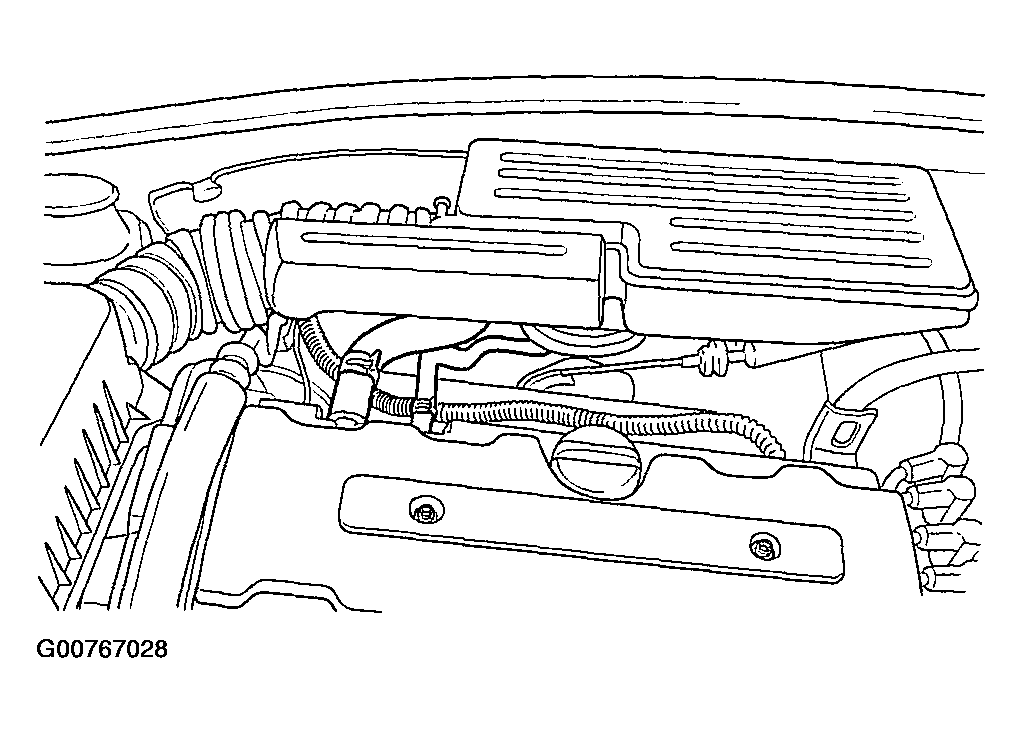

    Fig 3: Connecting The Breather Hose To The Valve Cover
    G00767028Courtesy of SUZUKI OF AMERICA CORP.
