Muffler - Front Removal and Installation: Installation

Connect the front muffler to the rubber hanger.
Attach the front muffler and the gasket to the rear muffler using the nuts. Secure the front muffler to the rubber hanger.
Tighten

Tighten the front muffler-to-rear muffler nuts to 30 N.m (22 Ft. Lbs.).

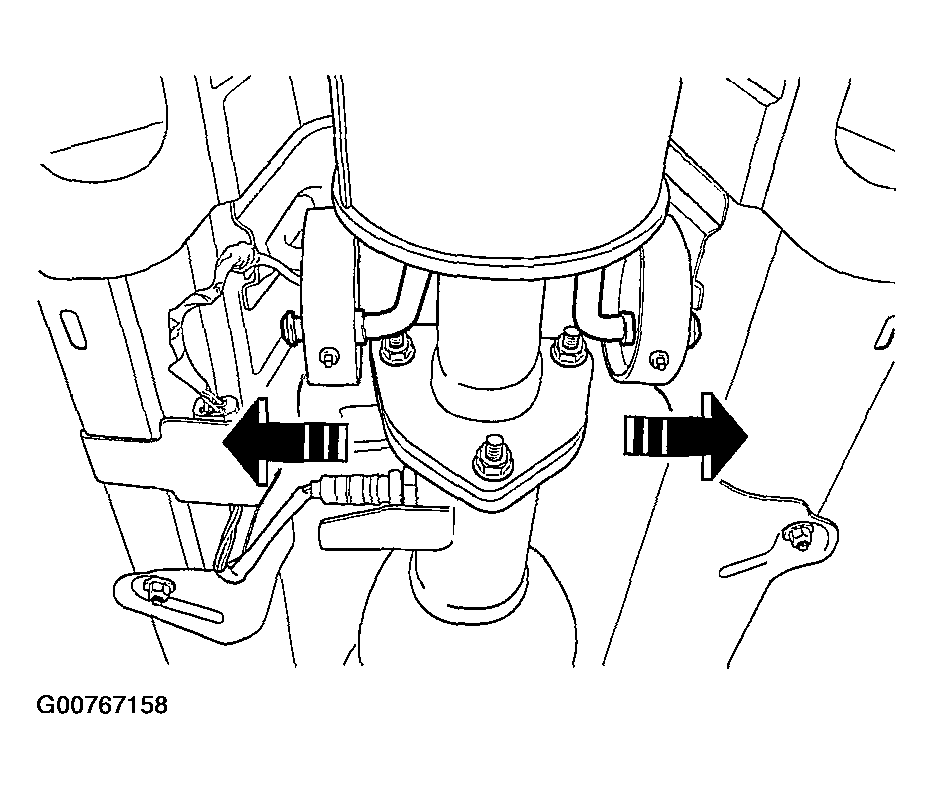

Fig 1: Attaching Front Muffler & Gasket To Rear Muffler
Courtesy of SUZUKI OF AMERICA CORP.
Loosely secure the front muffler assembly to the connecting pipe flange.
Secure the front muffler assembly to the connecting pipe flange with the nuts.
Tighten

Tighten the front muffler-to-exhaust front pipe nuts to 30 N.m (22 Ft. Lbs.).

Fig 2: Connecting Front Muffler To Rubber Hanger
Courtesy of SUZUKI OF AMERICA CORP.
