Exhaust Front Pipe Removal and Installation: Installation

Install the exhaust front pipe and the gasket.
Install the nuts from the exhaust front pipe-to-exhaust front muffler.
Tighten

Tighten the exhaust front pipe-to-exhaust front muffler nets to 30 N.m (22 Ft. Lbs.).
Connect the oxygen sensor connector.

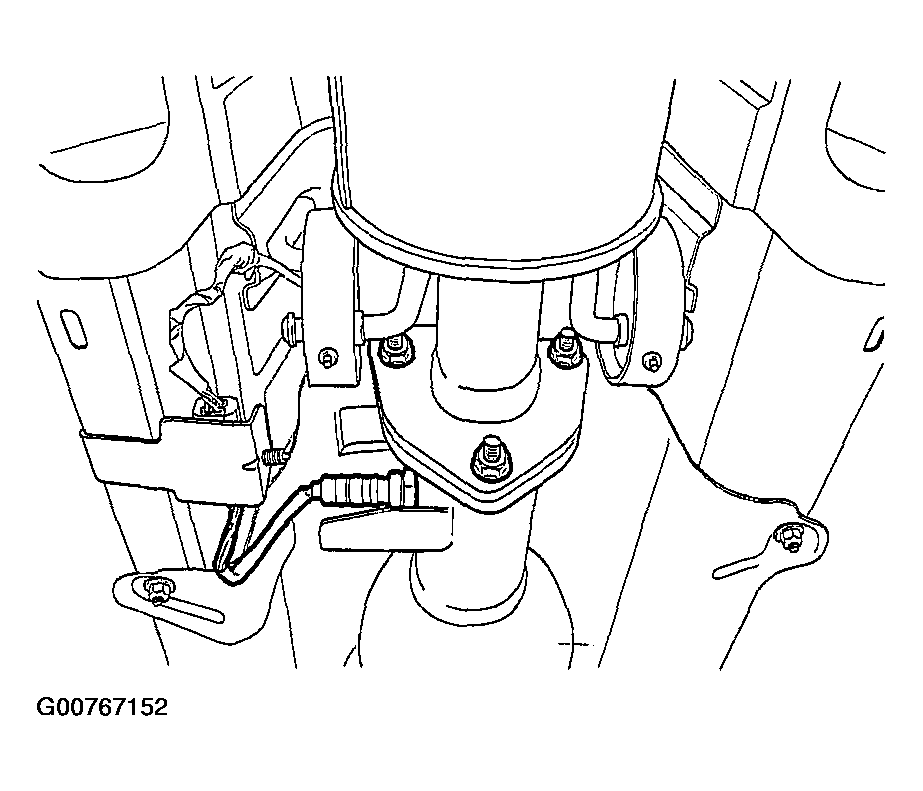

Fig 1: Connecting Oxygen Sensor Connector
Courtesy of SUZUKI OF AMERICA CORP.
Install the nuts from the exhaust front pipe-to-catalytic converter flange.
Install the exhaust front pipe mounting bracket bolt.
Tighten

Tighten the exhaust front pipe-to-catalytic converter nuts to 40 N.m (30 Ft. Lbs.).

Tighten the exhaust front pipe-to-cylinder block bolt to 50 N.m (37 Ft. Lbs.).

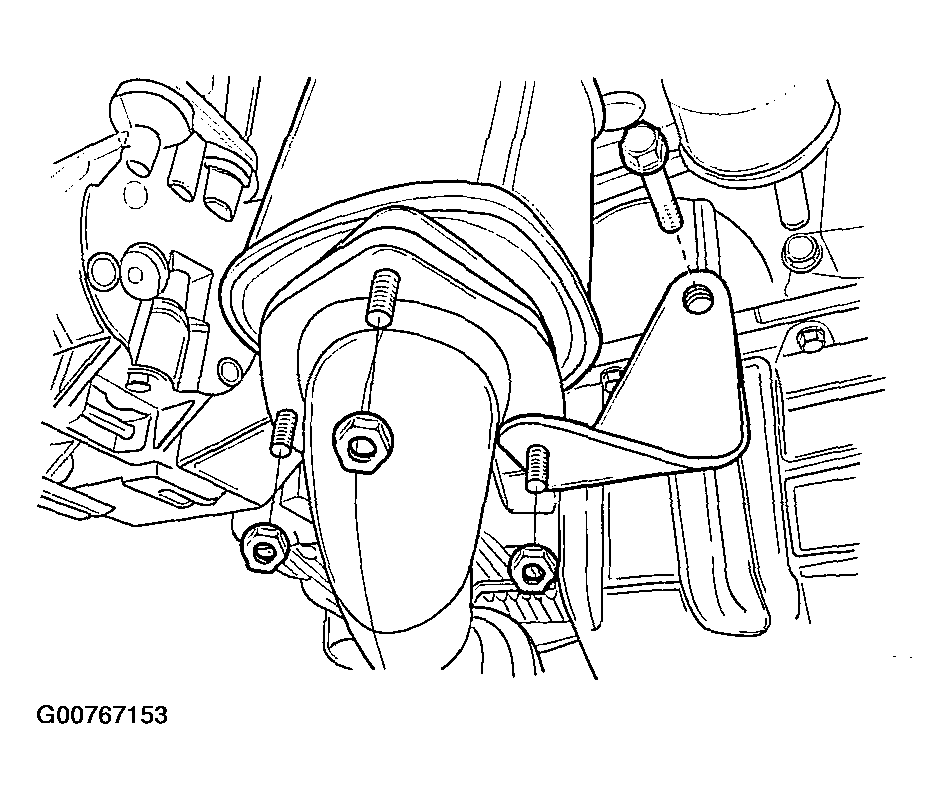

Fig 2: Installing Exhaust Front Pipe Mounting Bracket Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Install the crossmember lower bracket bolts to 35 N.m (26 Ft. Lbs.).

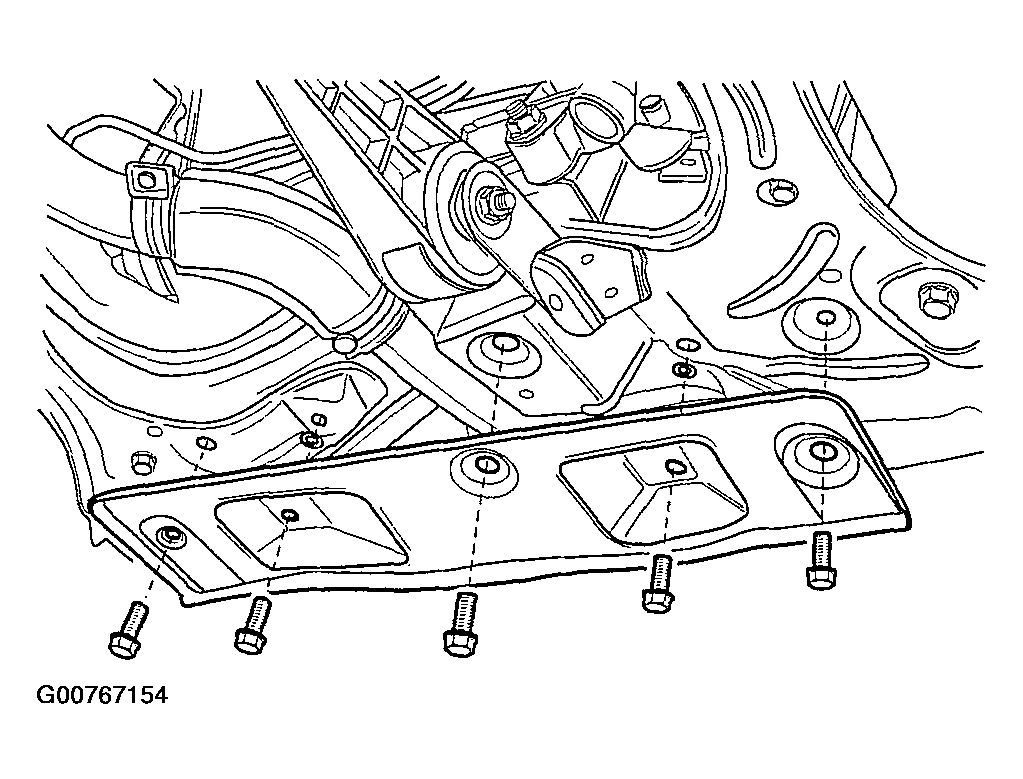

Fig 3: Installing Crossmember Lower Bracket Bolts
Courtesy of SUZUKI OF AMERICA CORP.
