Catalytic Converter Removal and Installation: Installation

Install the catalytic converter and the gasket to the exhaust front pipe flange.
Tighten

Tighten the exhaust front pipe-to-catalytic converter nuts to 40 N.m (30 Ft. Lbs.).

Tighten the exhaust front pipe-to-cylinder block bolt to 50 N.m (37 Ft. Lbs.).

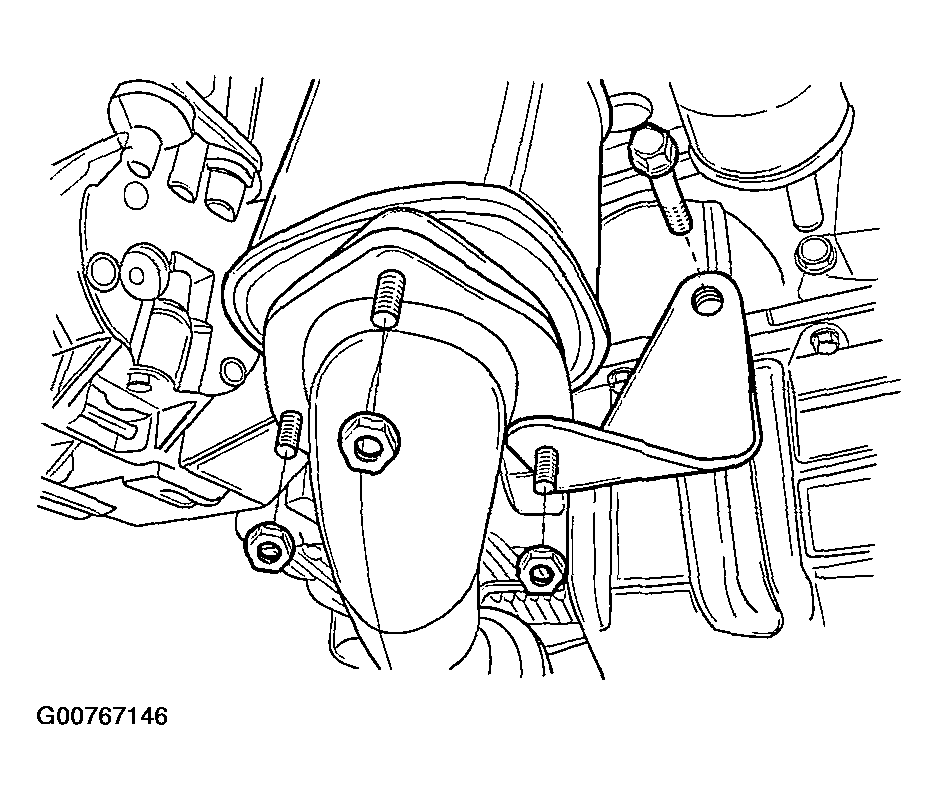

Fig 1: Installing Catalytic Converter & Gasket
Courtesy of SUZUKI OF AMERICA CORP.
Install the catalytic converter to exhaust manifold nuts and the gasket.
Tighten

Tighten the catalytic converter to exhaust manifold nuts to 40 N.m (30 Ft. Lbs.).

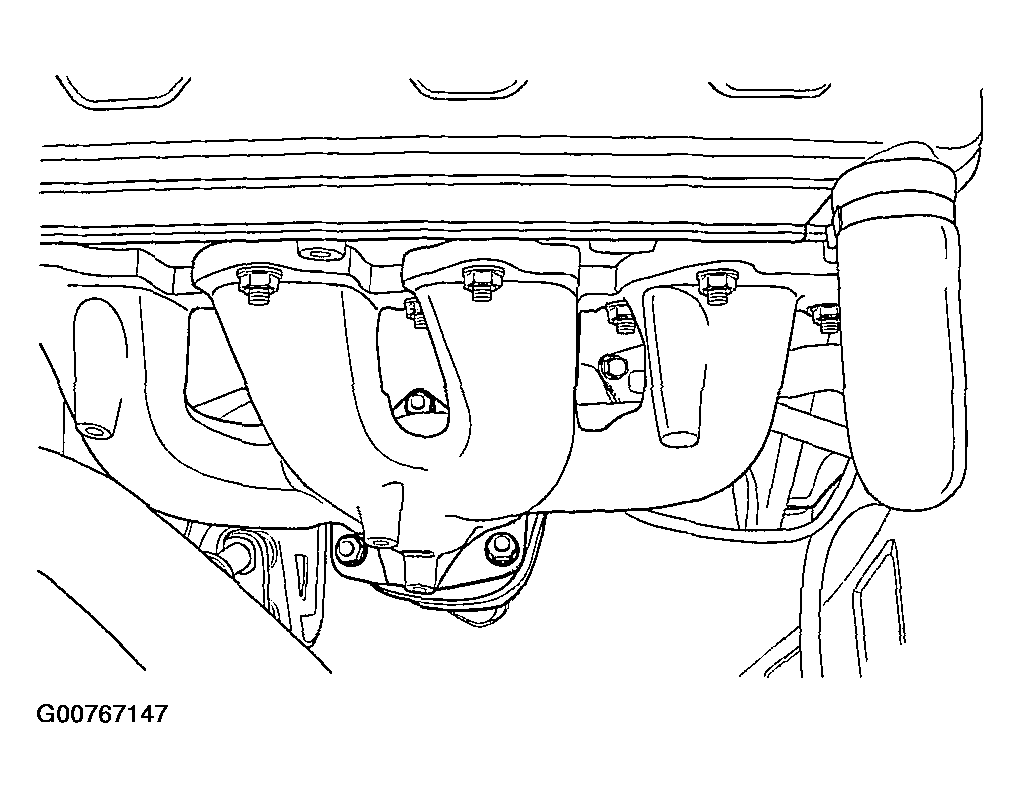

Fig 2: Installing Catalytic Converter To Exhaust Manifold Nuts & Gasket
Courtesy of SUZUKI OF AMERICA CORP.
Install the exhaust manifold conver bolts.
Tighten

Tighten the exhaust manifold cover bolts to 15 N.m (11 Ft. Lbs.).
Connect the oxygen sensor electrical connector.
Connect the negative battery cable.

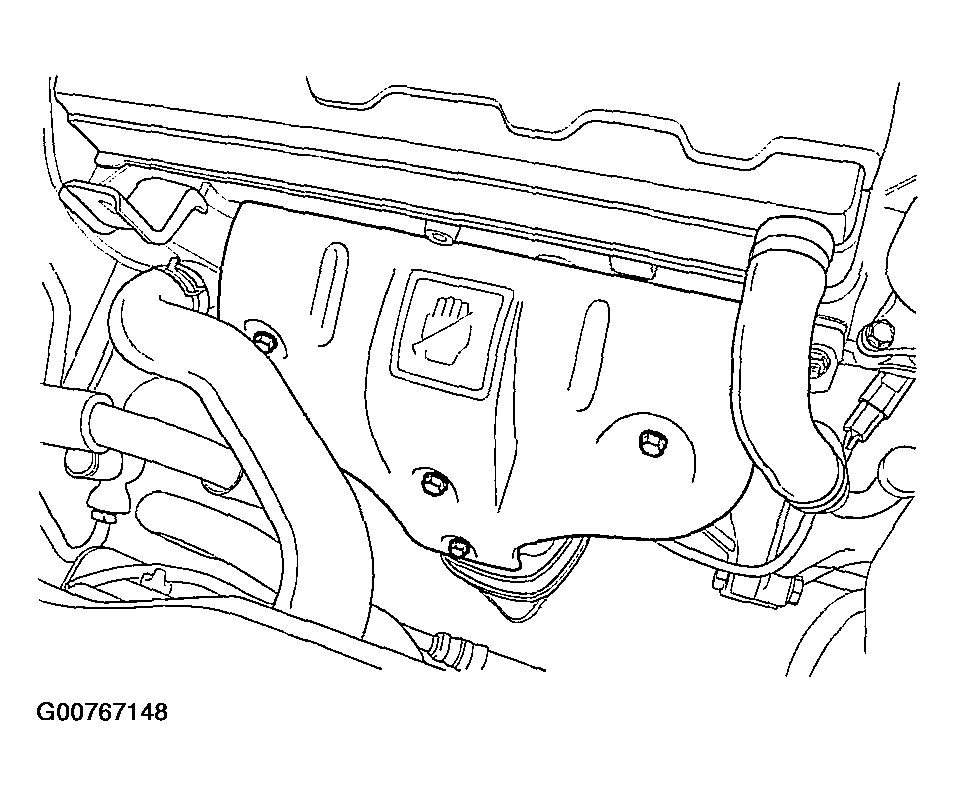

Fig 3: Installing Exhaust Manifold Conver Bolts
Courtesy of SUZUKI OF AMERICA CORP.
