Surge Tank Removal and Installation: Installation

  1. Install the surge tank to the support mount.

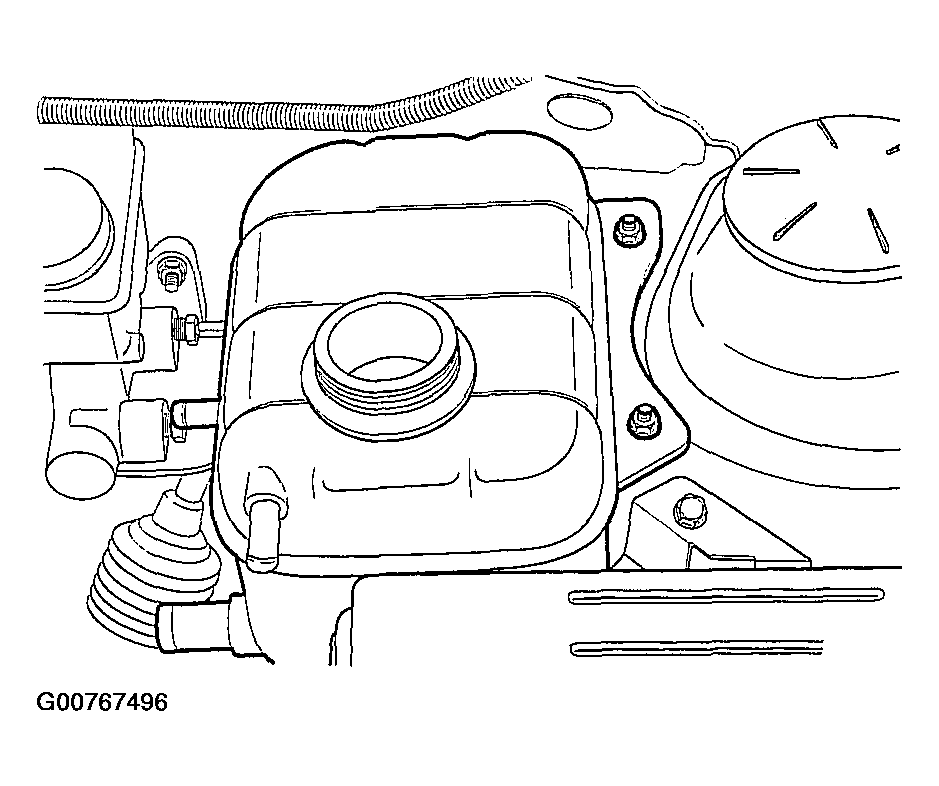

    Fig 1: Installing The Surge Tank
    G00767496Courtesy of SUZUKI OF AMERICA CORP.
  2. Secure the surge tank with the attaching bolt.

    Tighten

    Tighten the surge tank attaching bolt to 5 N.m (44 lb-in).

  3. Connect the return hose and the throttle body hose to the top of the surge tank.
  4. Connect the feed hose to the bottom of the surge tank.
  5. Secure the return hose, the throttle body hose, and the feed hose to the surge tank with the hose clamps.
  6. Fill the surge tank with the coolant to the center ridge, or to the MAX mark.

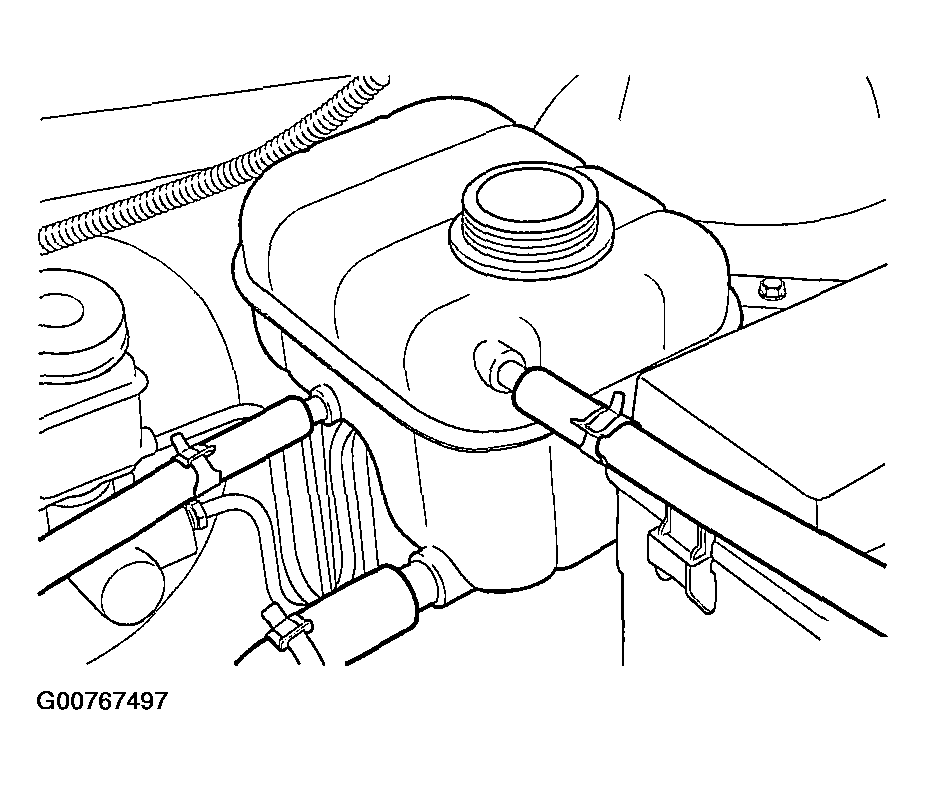

    Fig 2: Connecting The Hoses To The Surge Tank
    G00767497Courtesy of SUZUKI OF AMERICA CORP.
