Engine Overheats

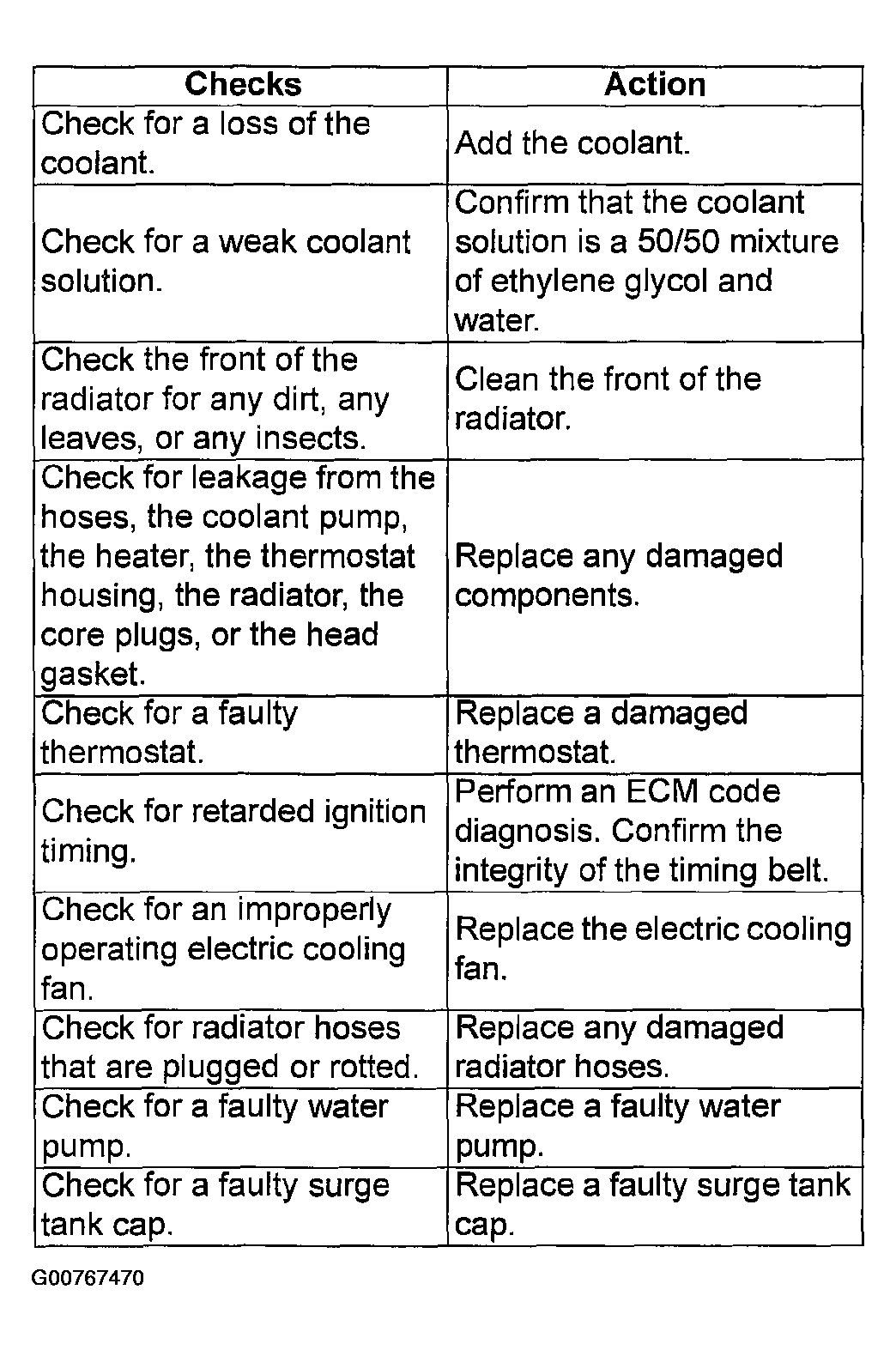

Fig 1: Engine Overheats Diagnosis Chart (1 Of 2)
G00767470Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Engine Overheats Diagnosis Chart (2 Of 2)
G00767471Courtesy of SUZUKI OF AMERICA CORP.
