No Crank

To trouble shoot a no crank condition, see Fig 1 and Fig 2 .

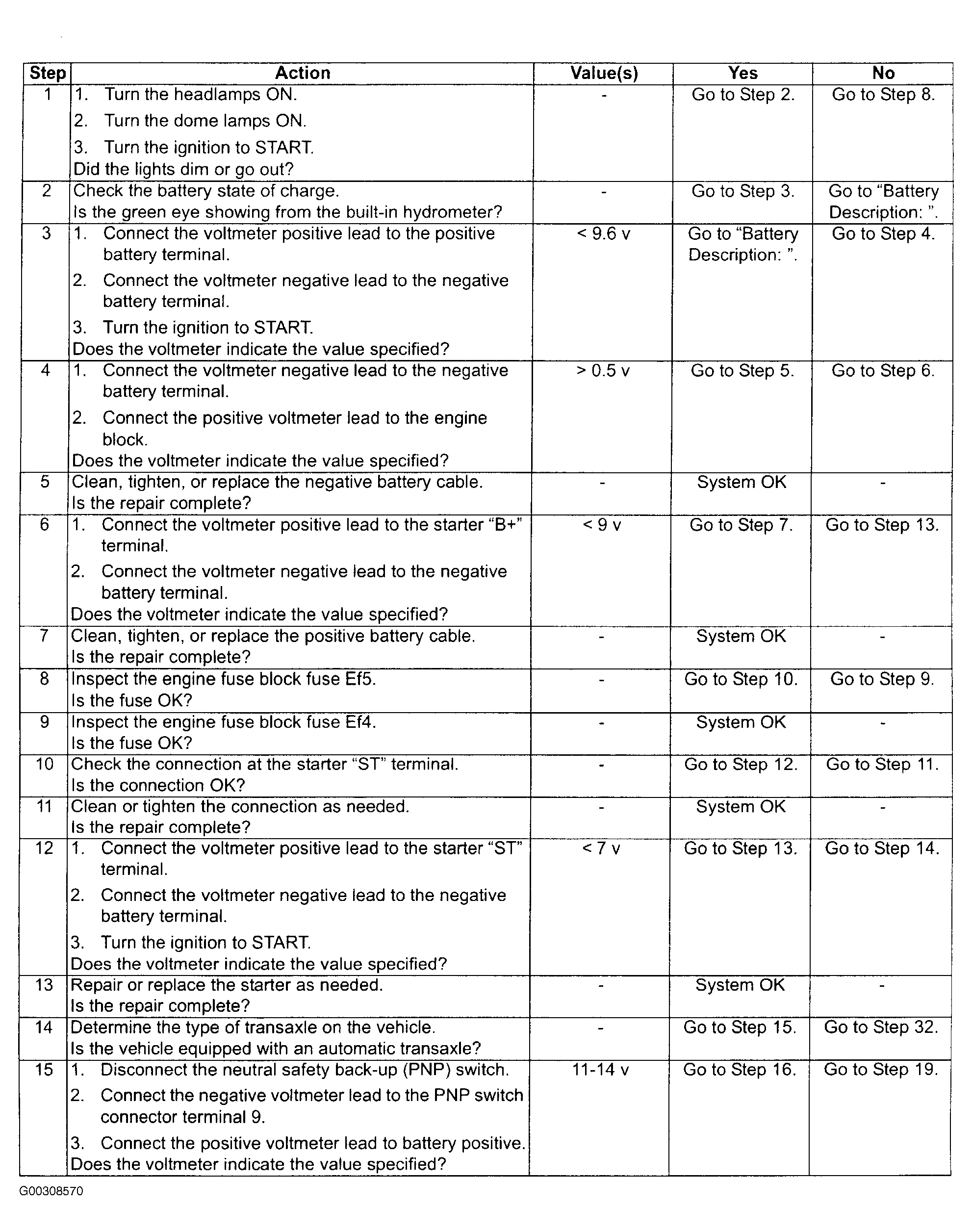

Fig 1: Identifying Trouble Shooting For No Crank (1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

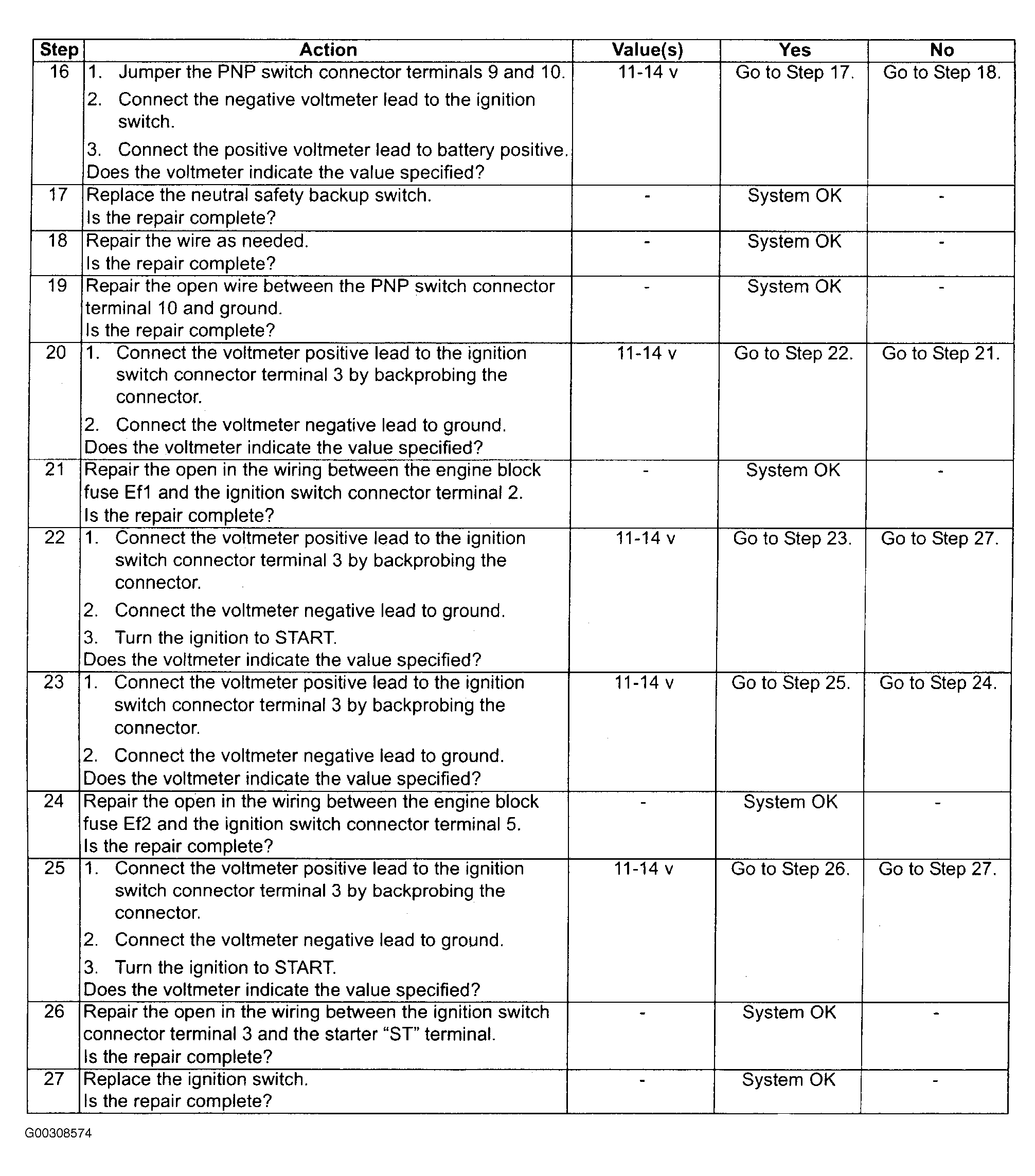

Fig 2: Identifying Trouble Shooting For No Crank (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
