Removal & Installation: Starter: Installation

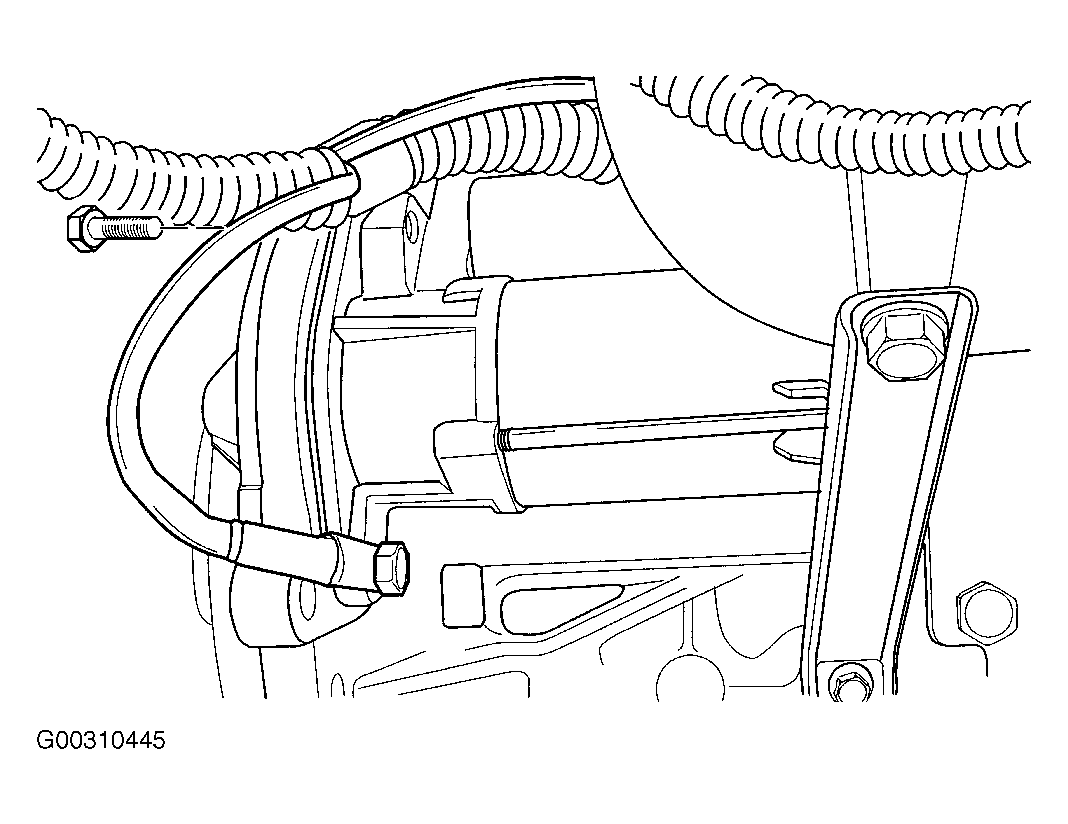

  1. Install the starter to engine block mounting bolt and the transmission to starter mounting bolt. See Figure.
  2. Position the starter electrical wire on the solenoid terminals and the ground wire.
  3. Install the starter solenoid nut.

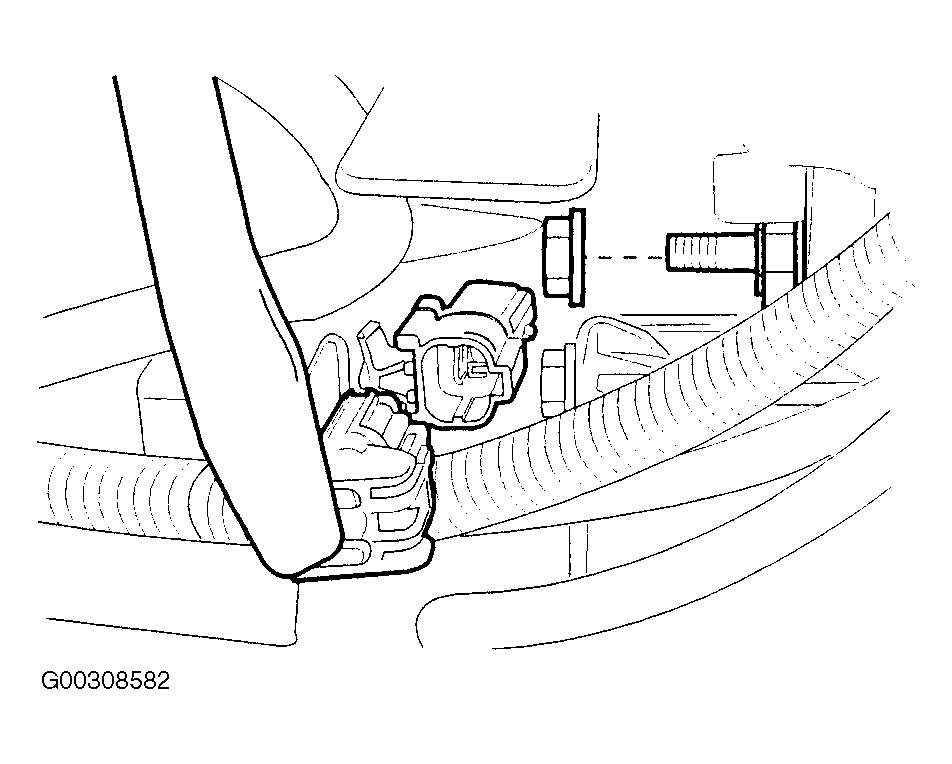

  4. Connect the starter solenoid connector. See Figure.

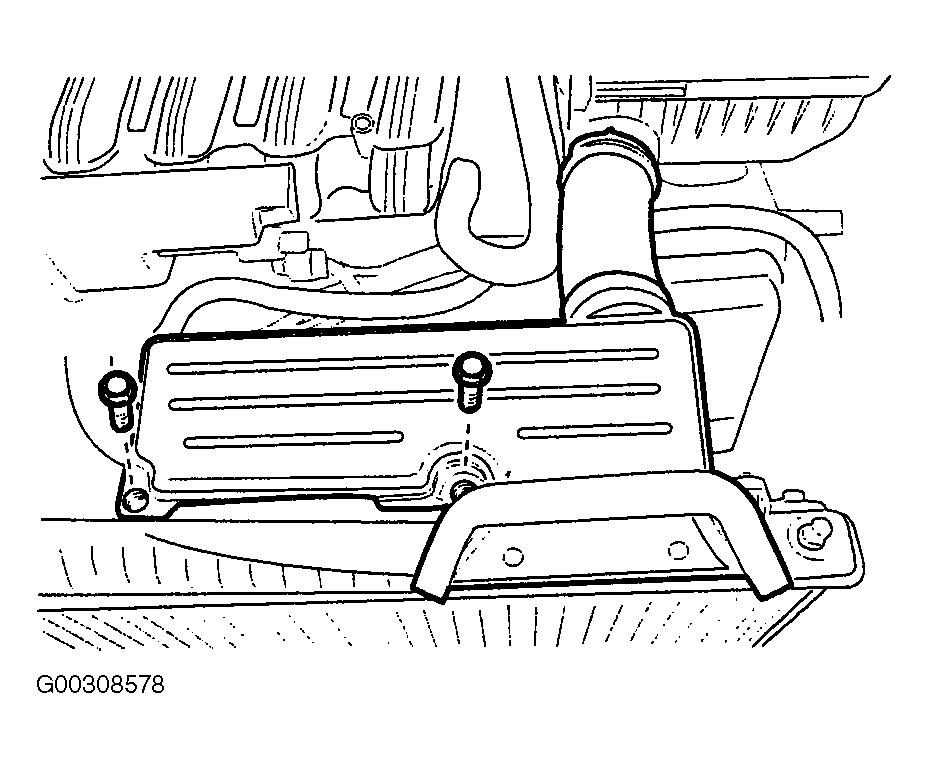

  5. Install the air inlet hose and hose bolts.
  6. Connect the negative battery cable. See Figure.


  1. Place the starter assembly in position using an assistant to prop up the starter to aid in installing the upper stud with the weld nut.

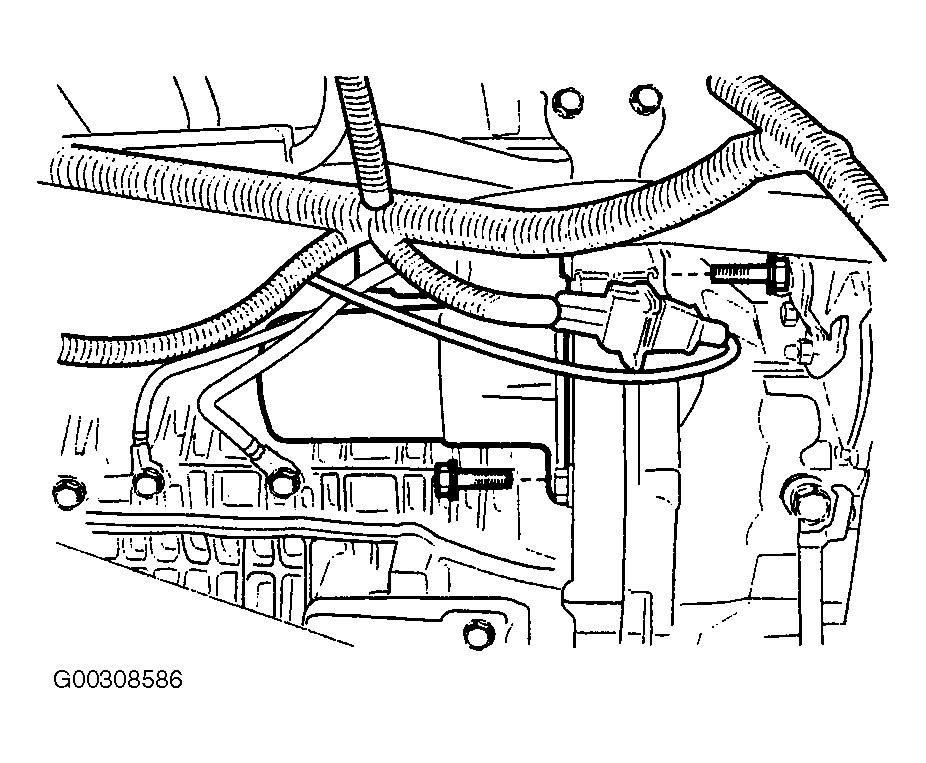

  2. Install the starter mounting bolts. See Figure.
  3. Position the starter electrical wire on the solenoid terminals and the ground wire on the lower stud.

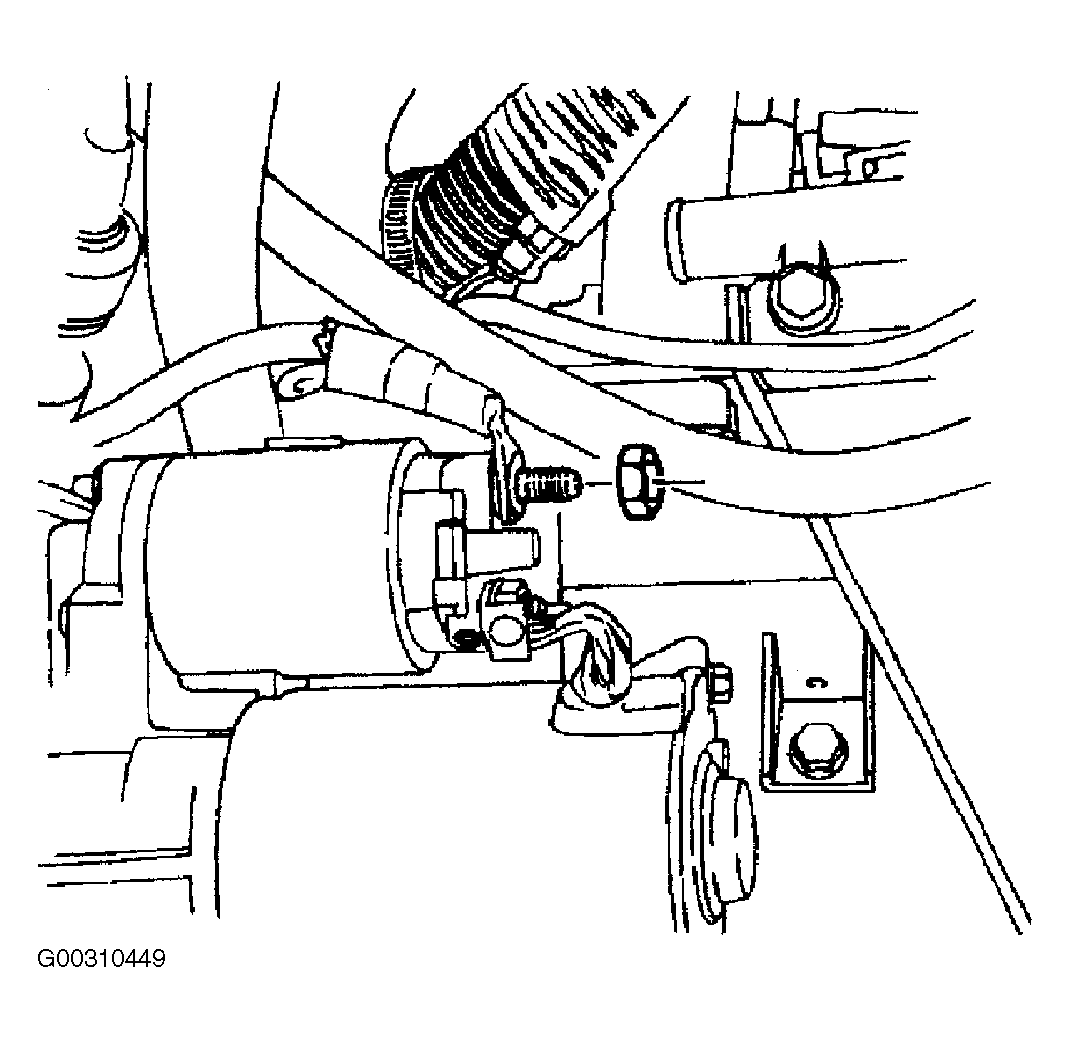

  4. Install the starter solenoid nuts and the ground wire nut. See Figure.
