Digital Clock Diagnosis: Notes

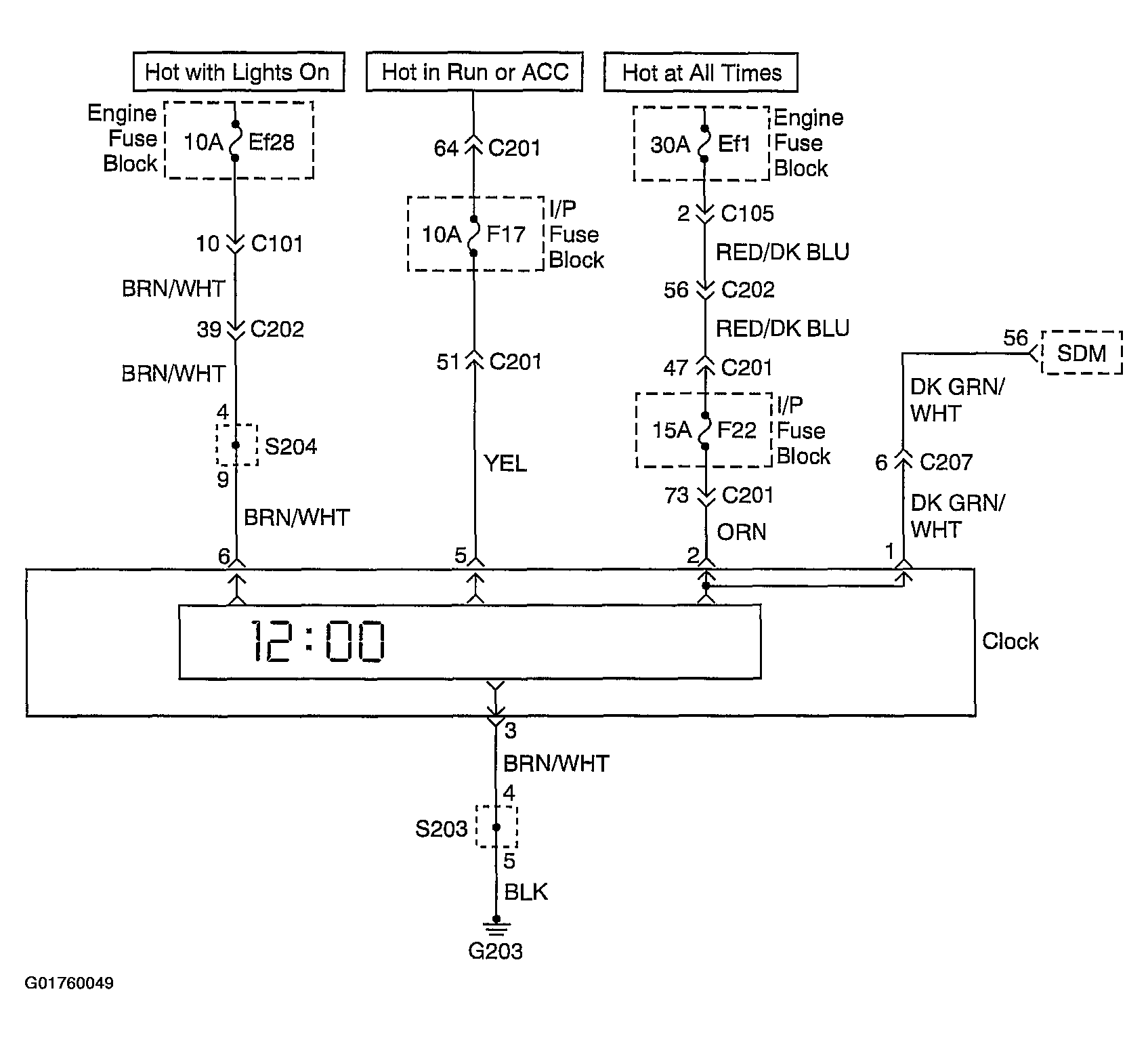

Fig 1: Digital Clock Wiring Diagram

G01760049

Courtesy of SUZUKI OF AMERICA CORP.
