Front Wheel Speed Sensor Jumper Harness Removal and Installation: Removal
- Disconnect the negative battery cable.
- Disconnect connector from the EBCM.
- Remove the appropriate terminals from connector:
- Right-side - terminals 4 (WHT) and 5 (GRY).
- Left-side - terminals 6 (BRN) and 7 (LT BLU).
Courtesy of SUZUKI OF AMERICA CORP.
- Both speed sensor harnesses break out of the ABS wiring harness just beyond the ABS connector. The right-side speed sensor harness crosses the top of the fire wall to the right-side fender area. The left-side speed sensor harness goes directly to the left-side fender area.
- Free the speed sensor harness from the wiring harness.

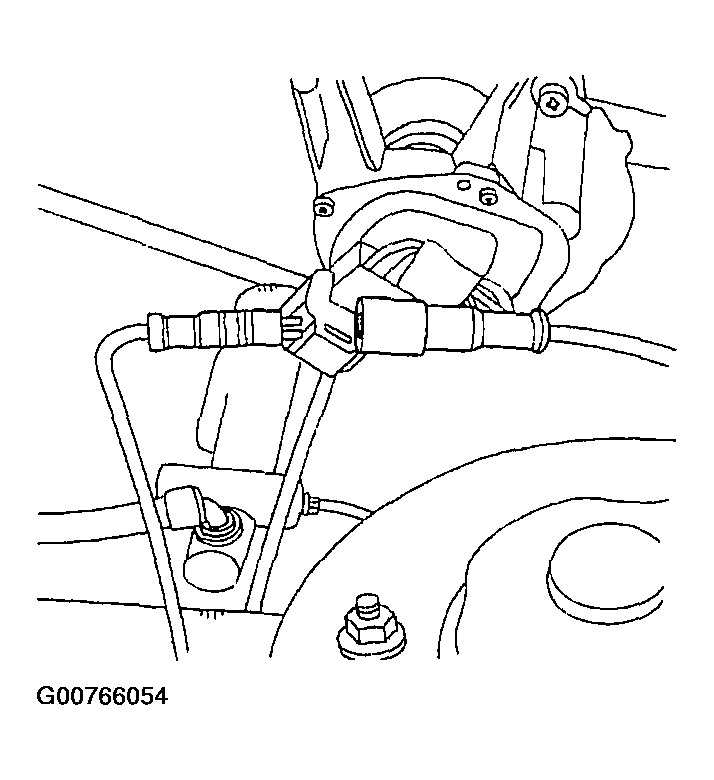

- Remove the front wheel speed sensor electrical connector from the retaining clamps and disconnect the harness from the sensor connector.
Courtesy of SUZUKI OF AMERICA CORP.
