Electronic Brake-Force Distribution (EBD) Failure Matrix

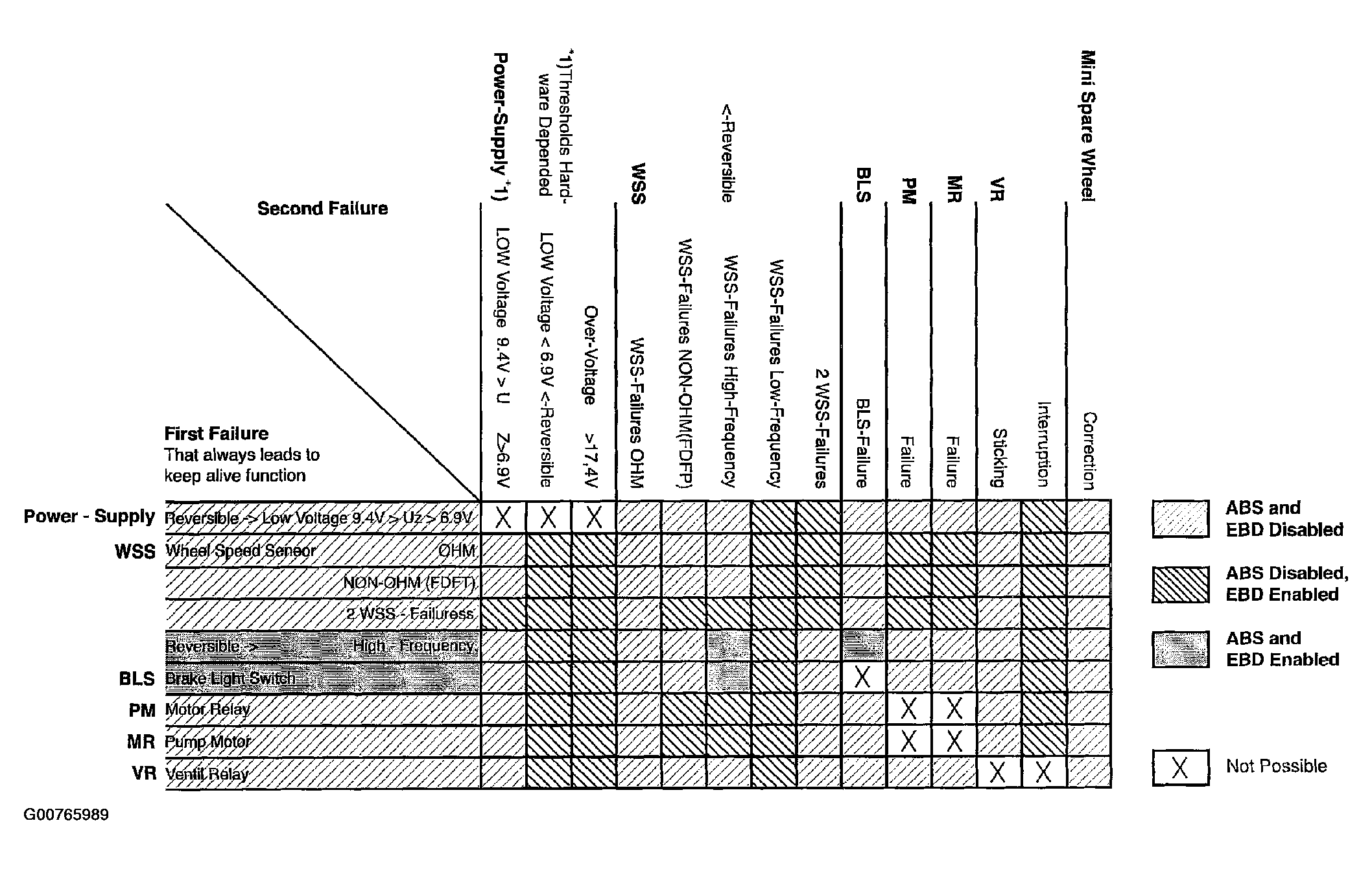

Fig 1: Electronic Brake-Force Distribution (EBD) Failure Matrix
G00765989Courtesy of SUZUKI OF AMERICA CORP.
