Diagnostic Aids

It is very important to perform a thorough inspection of the wiring and the connectors. Failure to do so may result in misdiagnosis, causing part replacement with a reappearance of the malfunction.

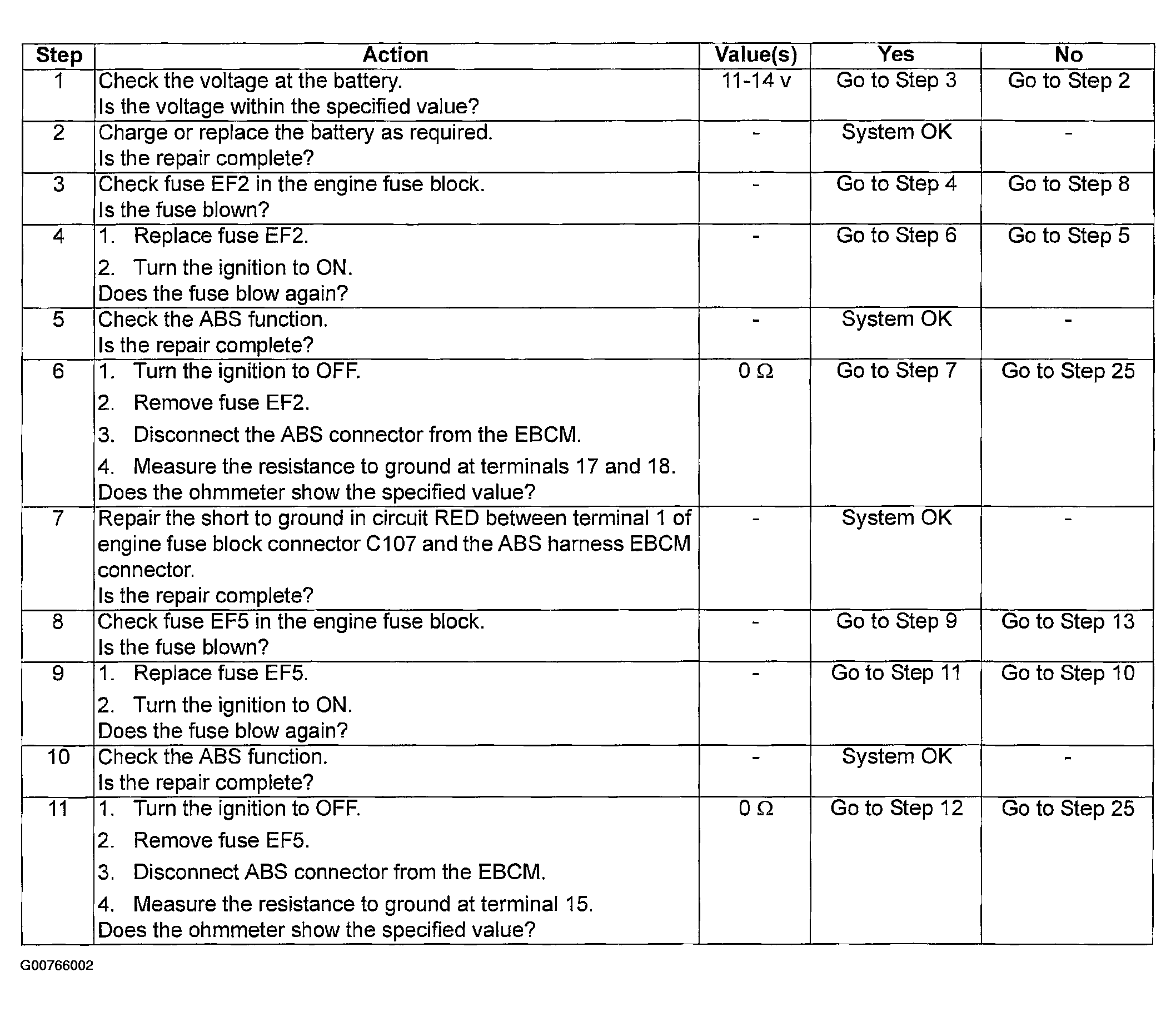

Fig 1: Power Supply to Control Module, No DTCs Stored Chart (1 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

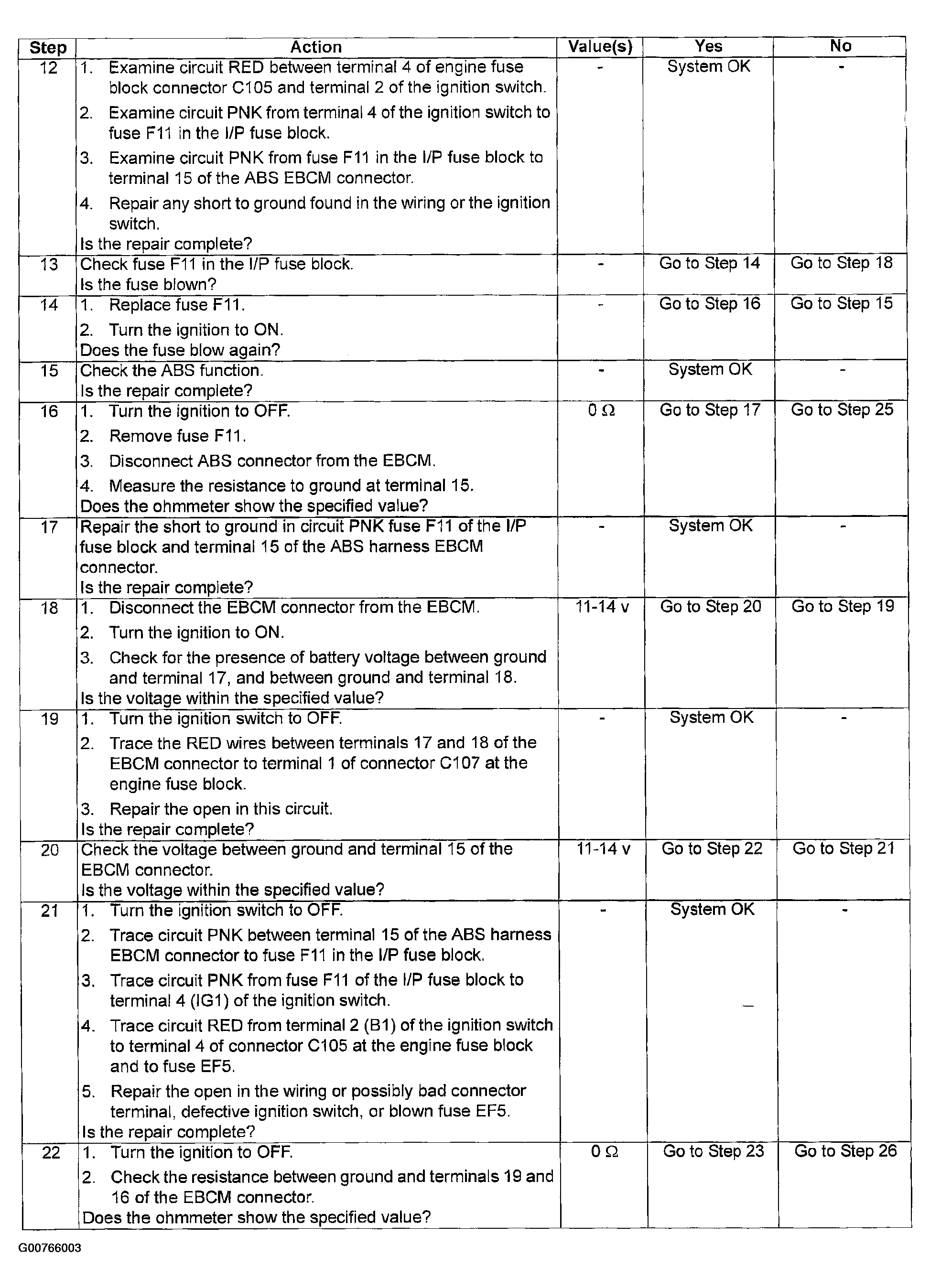

Fig 2: Power Supply to Control Module, No DTCs Stored Chart (2 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

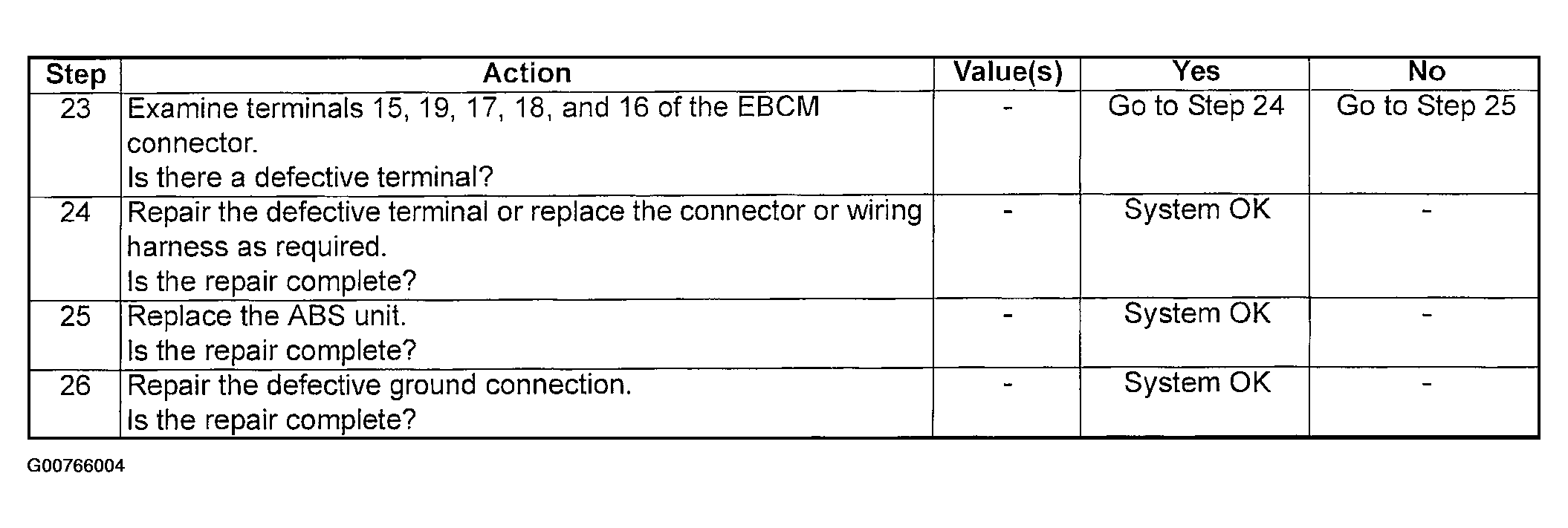

Fig 3: Power Supply to Control Module, No DTCs Stored Chart (3 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.
