Diagnostic Aids

Be sure that the speed sensor wiring is properly routed and retained. This will help to prevent false signals due to the pickup of electrical noise.

It is very important to perform a thorough inspection of the wiring and the connectors. Failure to inspect the wiring and the connectors carefully and completely may result in misdiagnosis, causing part replacement with the reappearance of the malfunction.

You can use the scan tool to monitor wheel speeds during a road test. Watch the wheel speeds being displayed on the scan tool to see if any of the readings is unusual, such as one sensor varying in speed from the other three, a signal going intermittently high or low, etc. If this does not identify the intermittent, wet the speed sensor harness on the underside of the vehicle and perform a road test, monitoring the wheel speeds with the scan tool.

NOTE: If the WSS signal fault input to the EBCM, the ABS warning lamp turns on. As if a sensor signal fault can be removed by the scan tool, the ABS warning lamp doesn't turn off. In order to turn ABS warning lamp off, you should driver a car up to 12 km/h.

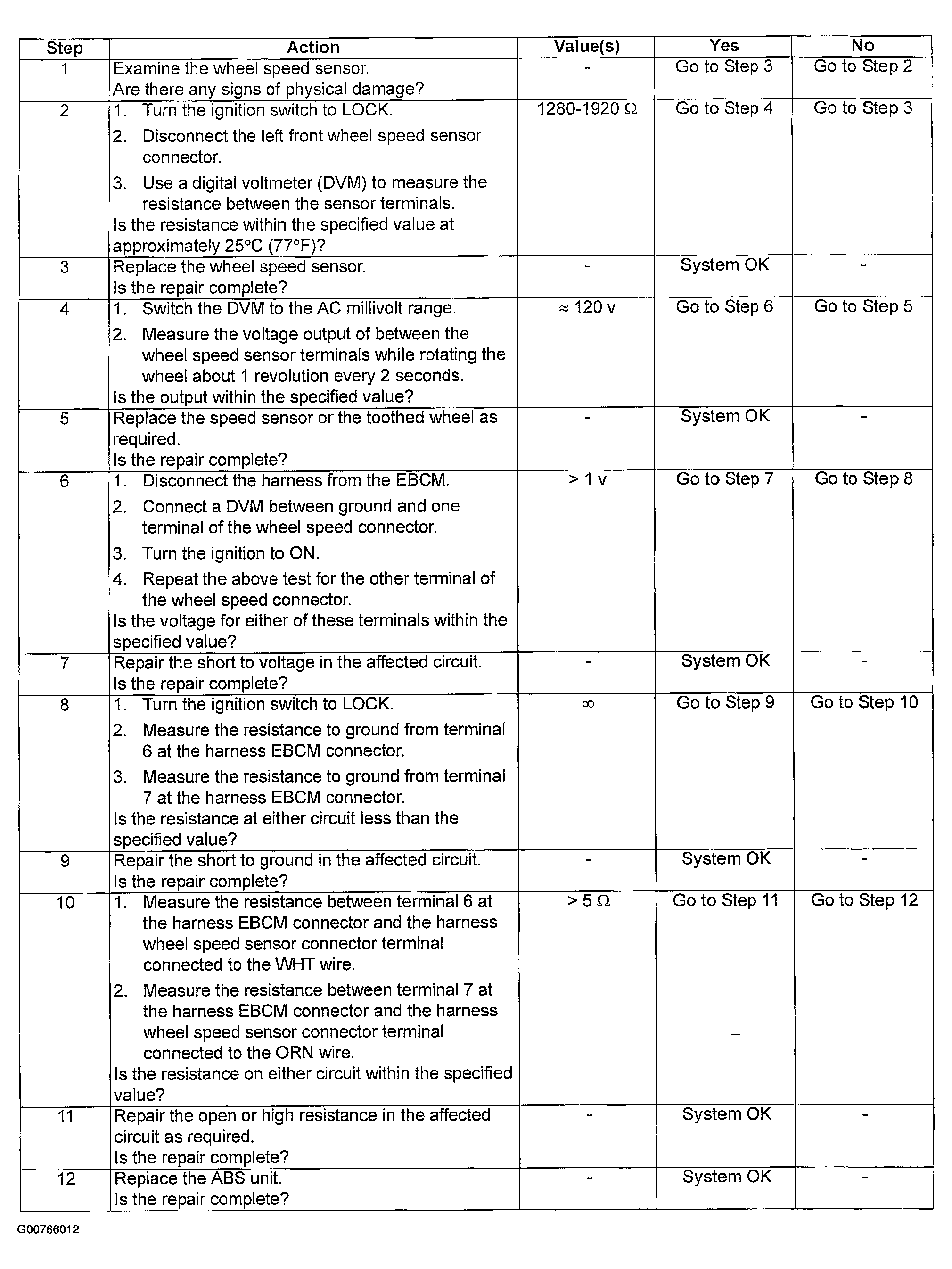

Fig 1: DTC C0035 Left Front Wheel Speed Sensor Circuit Malfunction Chart

Courtesy of SUZUKI OF AMERICA CORP.
