Formed Headliner Removal and Installation: Installation

  1. Recline both front seats.
  2. Install the headliner behind the seats around the doors.

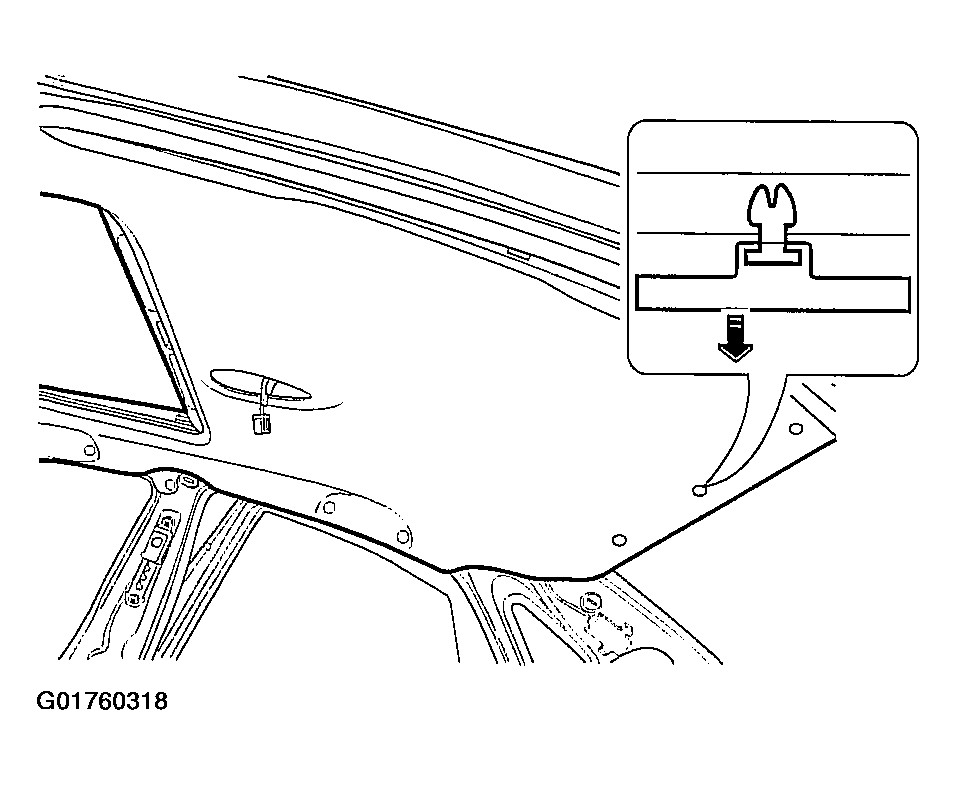

    3. Fig 1: Installing Headliners
    G01760318Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the plastic retainers.
  4. Install the A-, B-, and C-pillar trim panels. Refer to A-PILLAR TRIM PANEL REMOVAL AND INSTALLATION , UPPER B-PILLAR TRIM PANEL REMOVAL AND INSTALL and C-PILLAR TRIM PANEL REMOVAL AND INSTALLATION .
  5. Install the power sunroof control switch, if equipped. Refer to Power Sunroof Control Switch Removal and Installation  .
  6. Install the sun visors. Refer to Sun Visors with Vanity Mirror Removal and Installation  .
  7. Install the plastic retainers in the headliner on the driver's side.
  8. Install the passenger assist handles. Refer to Passenger Assist Handles Removal and Installation  .
    9. Fig 2: Installing Passenger Assist Handles
    G01760319Courtesy of SUZUKI OF AMERICA CORP.
  9. Install the sunroof molding, if equipped.
  10. Connect the negative battery cable.
