Wiper Switch and Lever Removal and Installation: Installation

Connect the electrical connector to the wiper switch.
Install the wiper switch by snapping it into the switch housing.

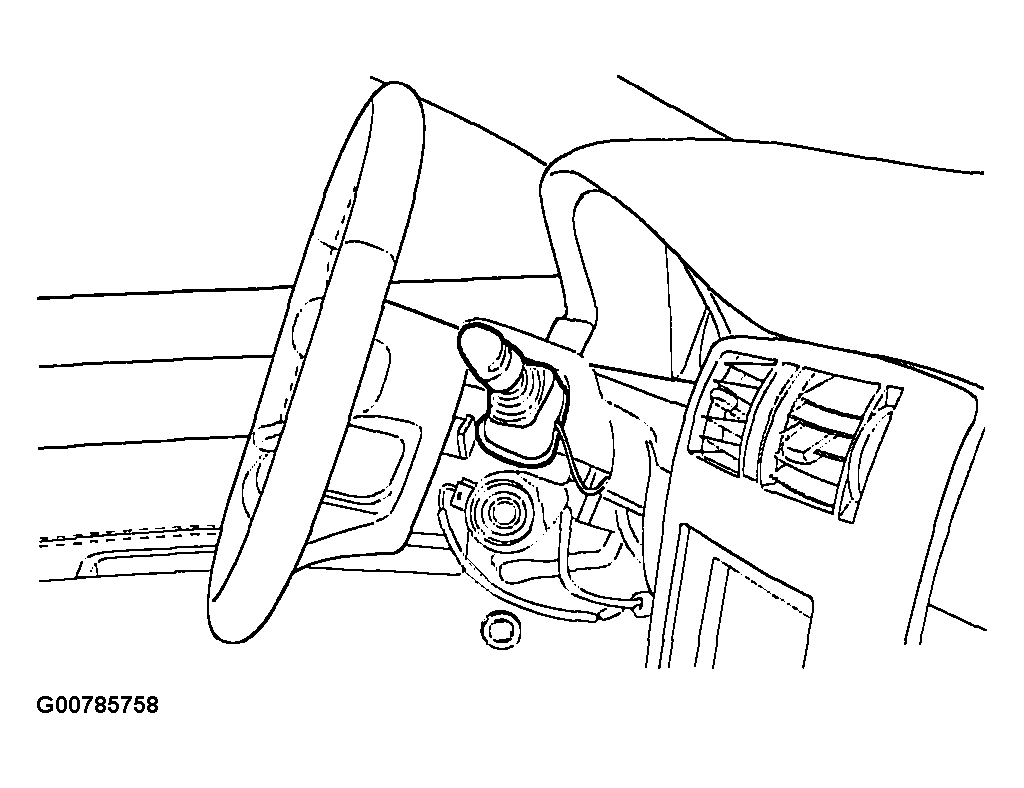

Fig 1: Installing The Wiper Switch
Courtesy of SUZUKI OF AMERICA CORP.
Install the upper and the lower steering column cover panels. Install the upper and the lower steering column cover panel screws.

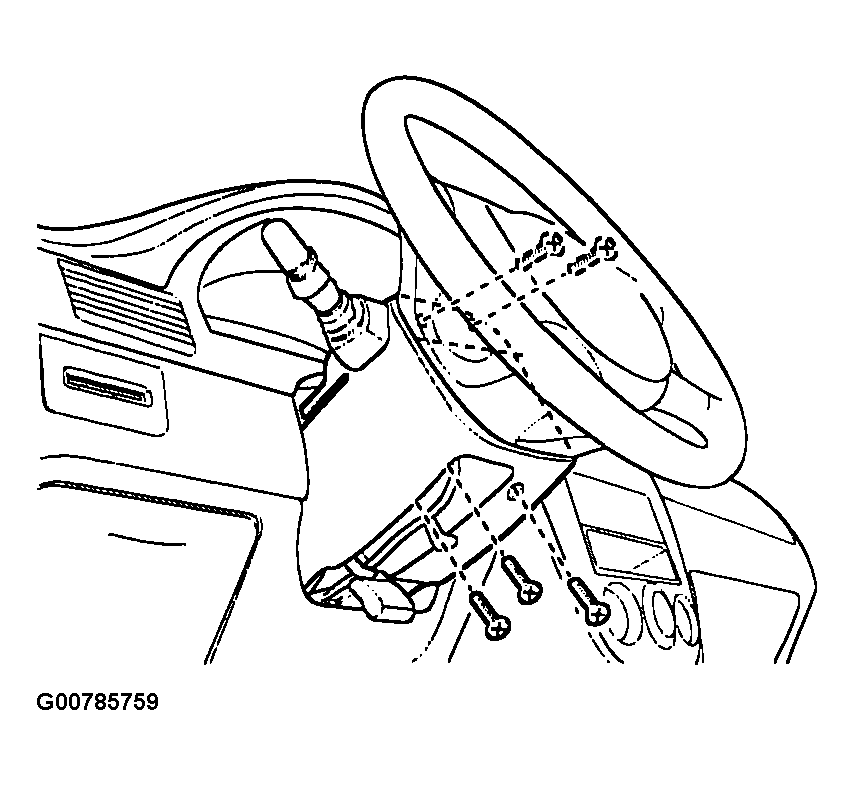

Fig 2: Installing The Upper And The Lower Steering Column Cover Panel Screws
Courtesy of SUZUKI OF AMERICA CORP.

Tighten

Tighten the upper and the lower steering column cover panel screws to 2.5 N.m (22 lb-in).
Connect the negative battery cable.
