Ignition Lock Cylinder and Switch Removal and Installation: Installation

Install the ignition switch with the ignition switch retaining screw.

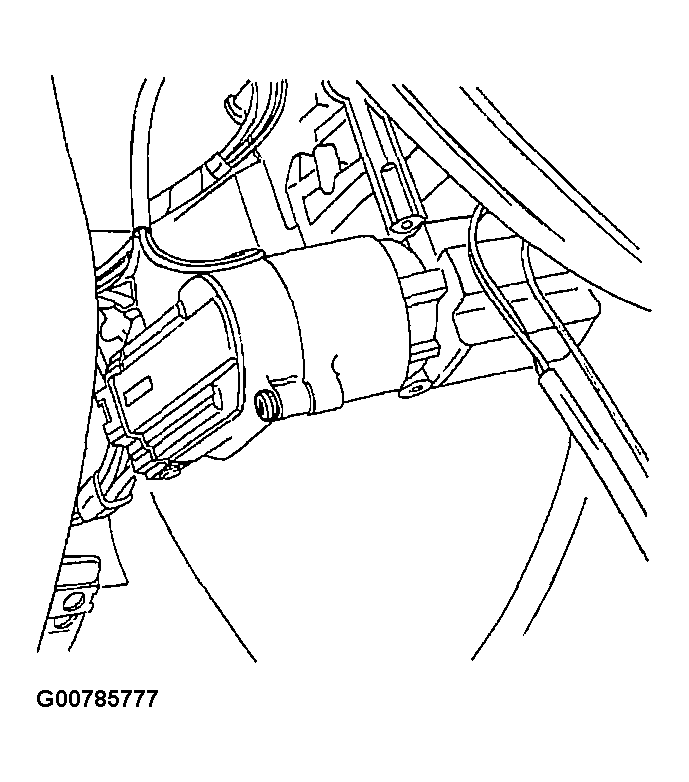

Fig 1: Installing The Ignition Switch
Courtesy of SUZUKI OF AMERICA CORP.

Tighten

Tighten the ignition switch retaining screw to 2.5 N.m (22 lb-in).
Connect the wiring to the ignition switch.
Install the lock cylinder.
Install the upper and the lower steering column cover panel with the screws.
Tighten

Tighten the upper and the lower steering column cover panel screws to 2.5 N.m (22 lb-in).
Connect the negative battery cable.

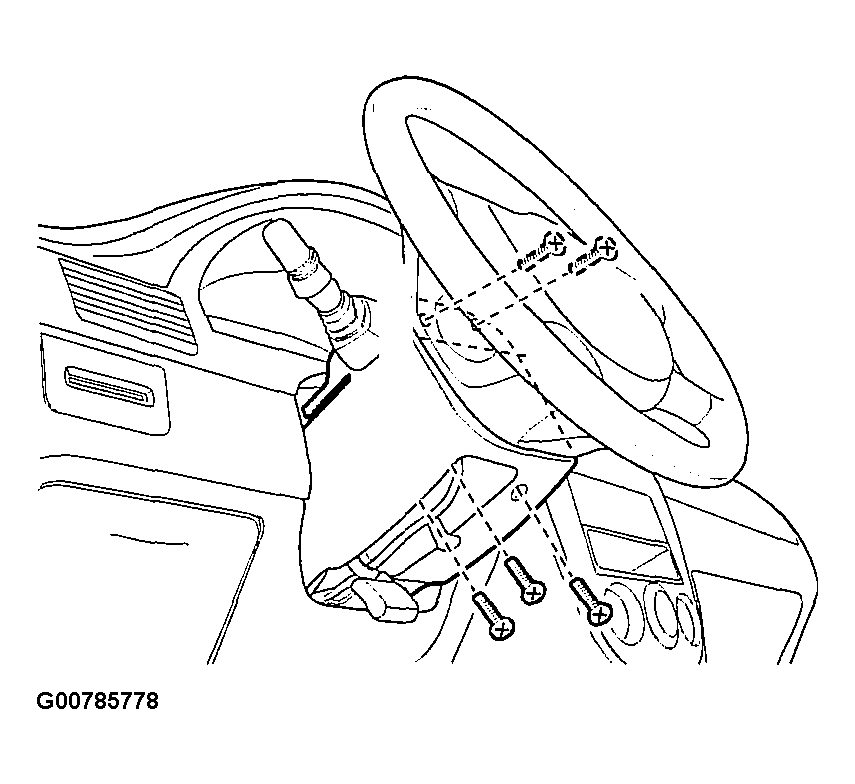

Fig 2: Installing The Upper And Lower Steering Column Cover Panel Screws
Courtesy of SUZUKI OF AMERICA CORP.
