Front and Rear

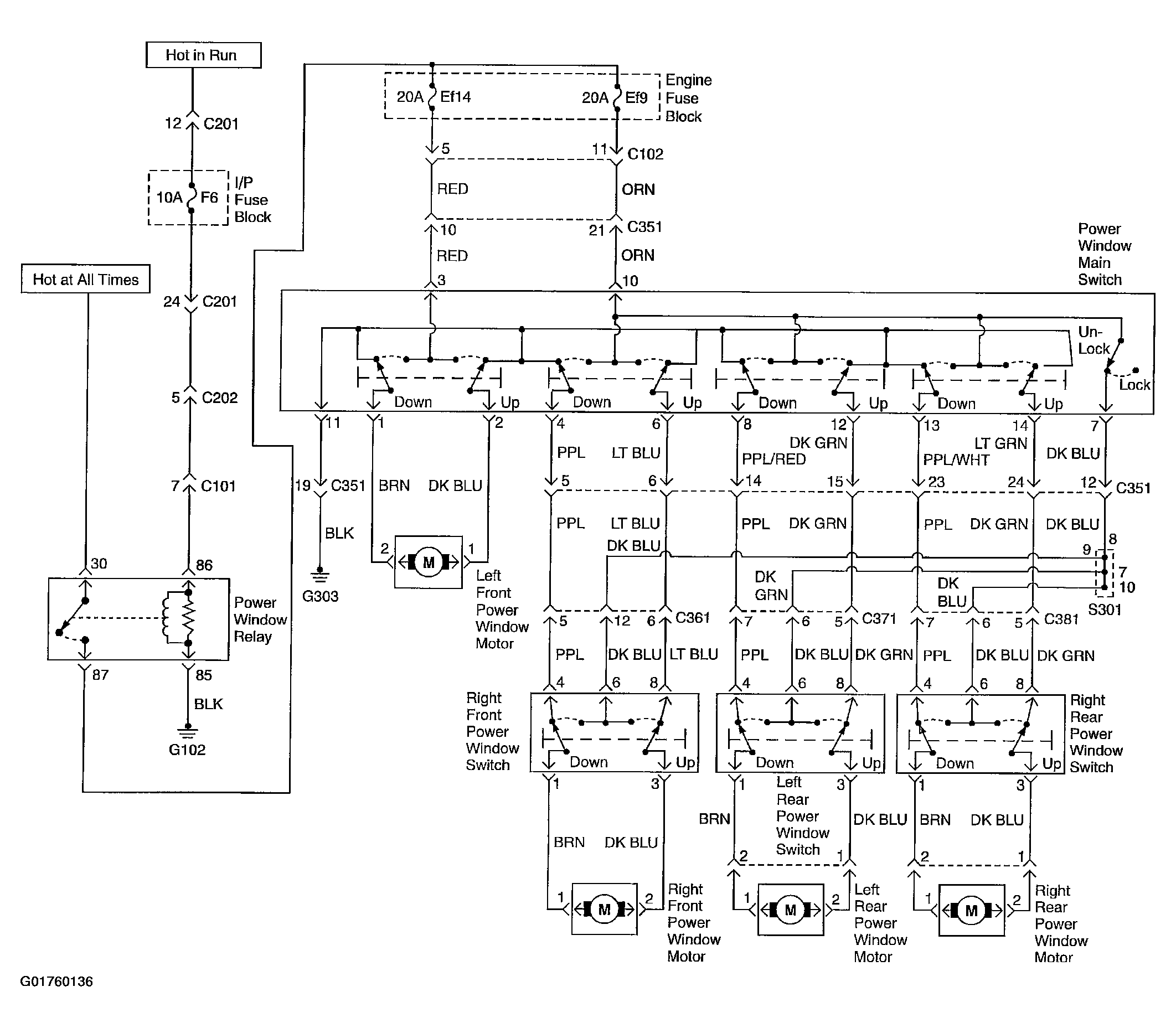

Fig 1: Identifying Power Windows Circuit Wiring Diagram (Front & Rear)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
