Power Windows Circuit Wiring Diagram
>>
Front Only
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Front Only

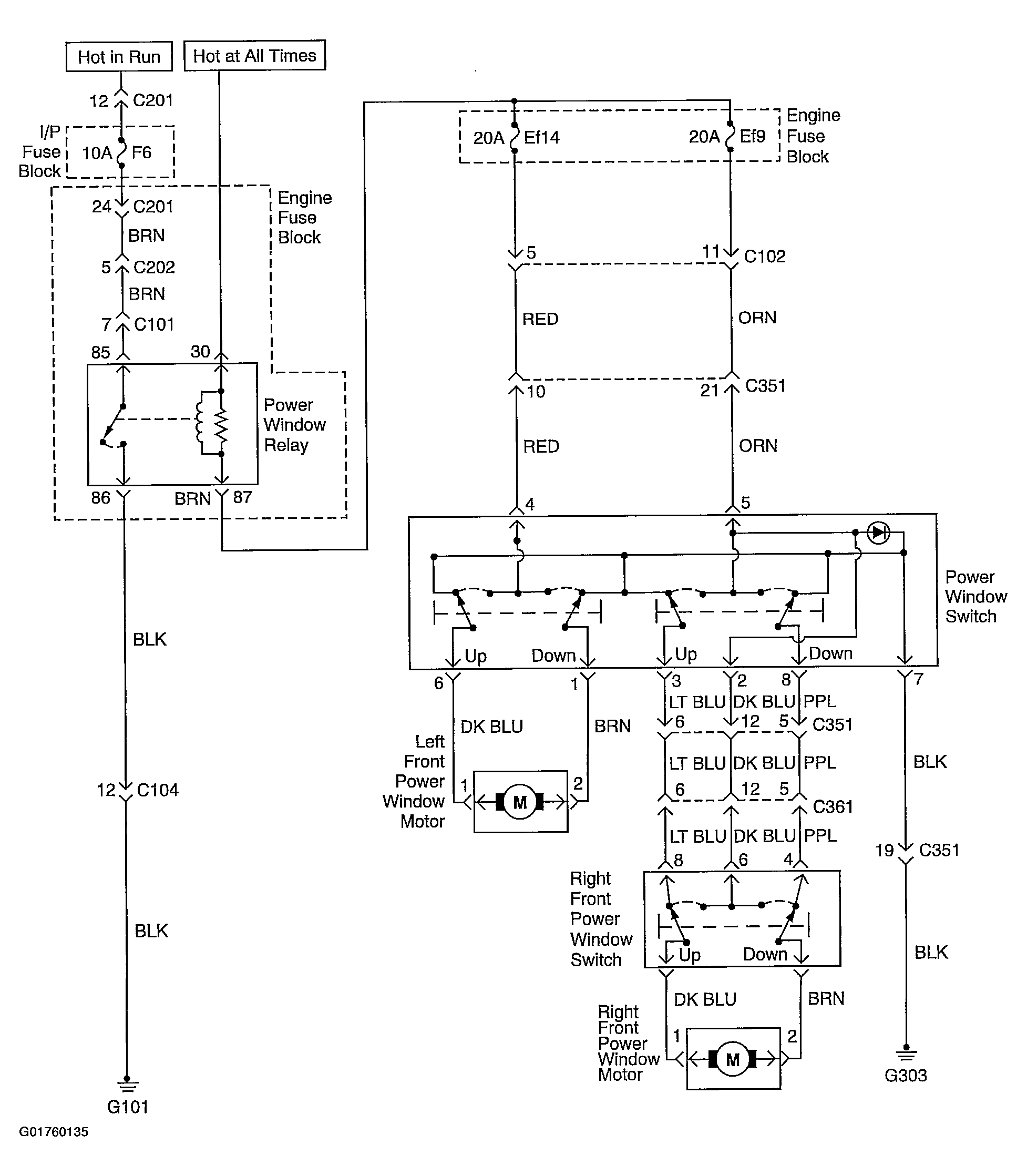

Fig 1: Identifying Power Windows Circuit Wiring Diagram (Front Only)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
