Defogger System Circuit Wiring Diagram

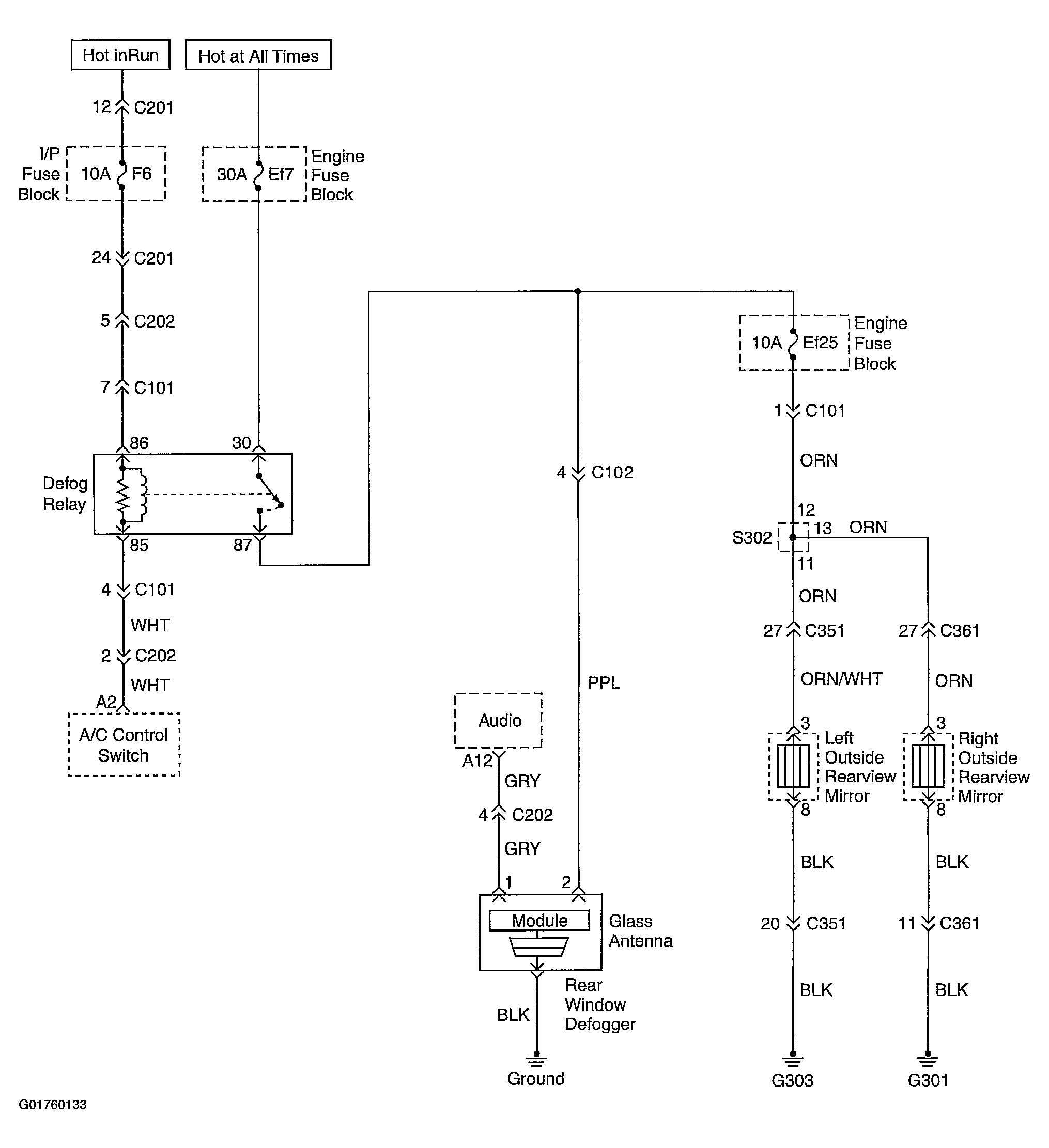

Fig 1: Identifying Defogger System Circuit Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
