Windshield Removal and Installation: Removal

Remove the cowl vent grille. Refer to COWL VENT GRILLE REMOVAL AND INSTALLATION .
Remove the inside rearview mirror. Refer to Inside Rearview Mirror Installation .
Remove the weatherstrip around the windshield.

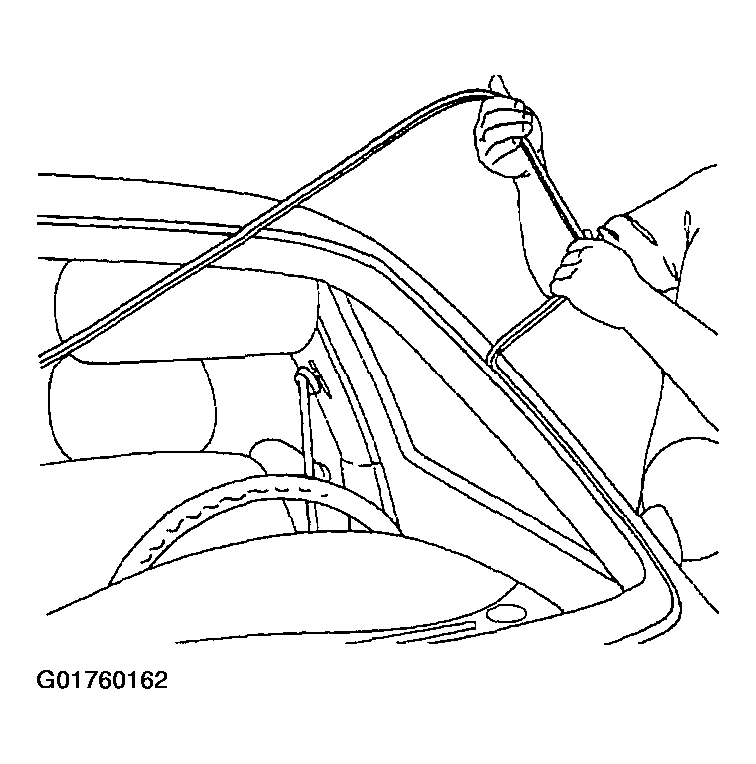

Fig 1: Removing Weatherstrip Around Windshield
Courtesy of SUZUKI OF AMERICA CORP.
Using the glass sealant remover J-24402, cut the adhesive around the windshield.

Fig 2: Cutting Adhesive Around Windshield By Using Glass Sealant Remover
Courtesy of SUZUKI OF AMERICA CORP.
Remove the windshield from the vehicle.
Using a knife, remove the adhesive from the windshield.
Using a knife, remove the adhesive from the windshield frame.

Fig 3: Removing Adhesive From Windshield Frame
Courtesy of SUZUKI OF AMERICA CORP.
