Rear Door Quarter Glass Removal and Installation: Removal

  1. Remove the C-pillar trim panel. Refer to C-PILLAR TRIM PANEL REMOVAL AND INSTALLATION .
  2. Remove the nuts and the rear door quarter glass.

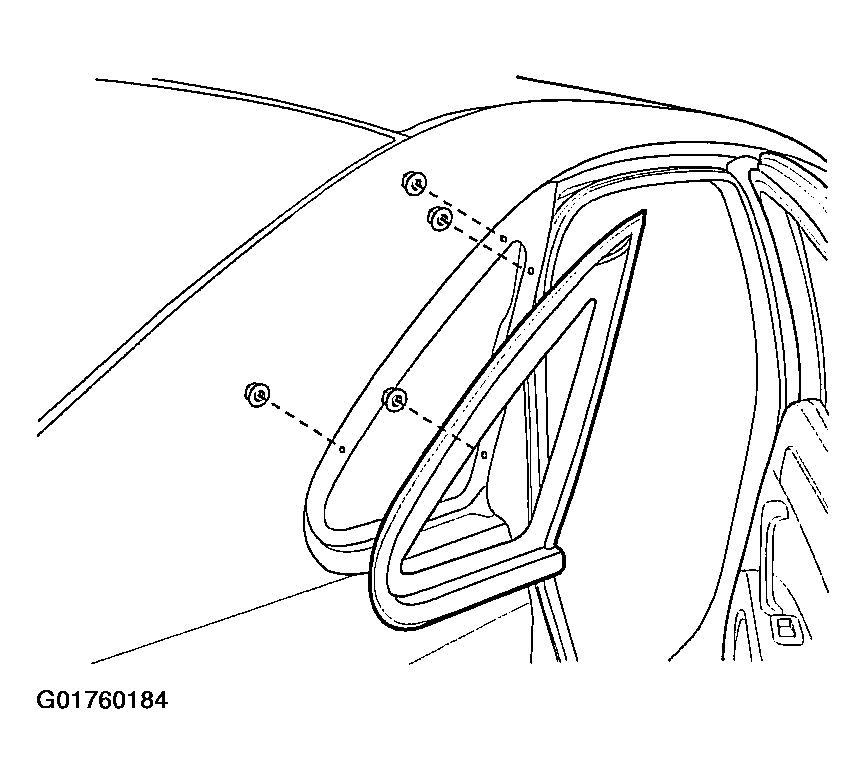

    Fig 1: Removing Nuts & Rear Door Quarter Glass
    G01760184Courtesy of SUZUKI OF AMERICA CORP.
