Power Window Regulator Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Remove the door glass. Refer to Front Door Glass Removal and Installation  .
  3. Disconnect the electrical connector.
  4. Remove the nuts and the window regulator.

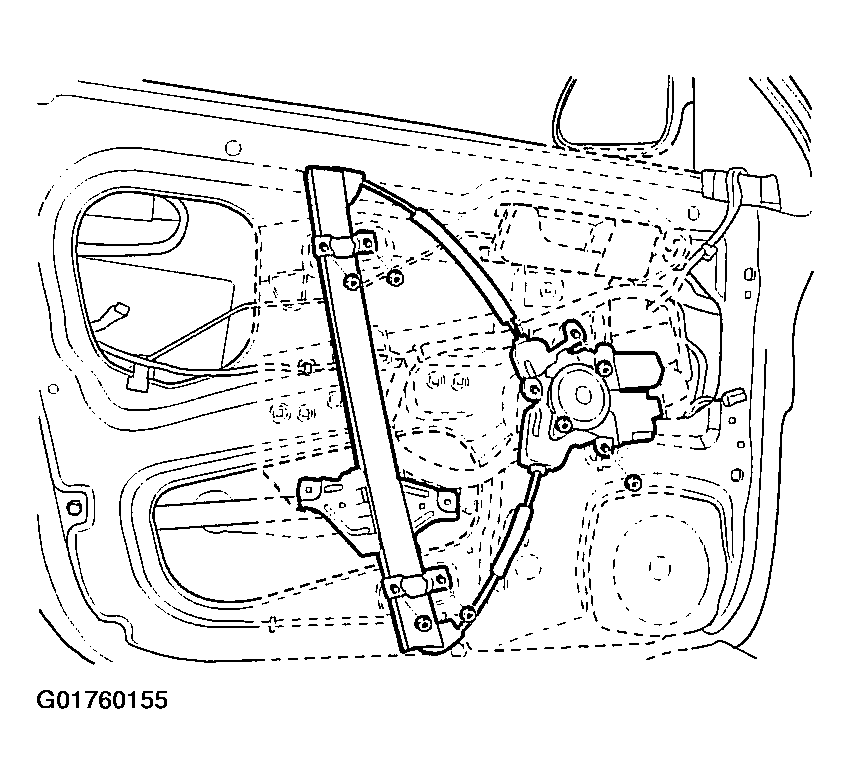

    Fig 1: Removing Nuts & Window Regulator
    G01760155Courtesy of SUZUKI OF AMERICA CORP.
