Outside Rearview Mirrors Removal and Installation: Removal

  1. Remove the front door escutcheon.
  2. Disconnect the mirror electrical connector if the mirror is electronically controlled.
  3. Remove the bolts and the outside rearview mirror assembly from the door.

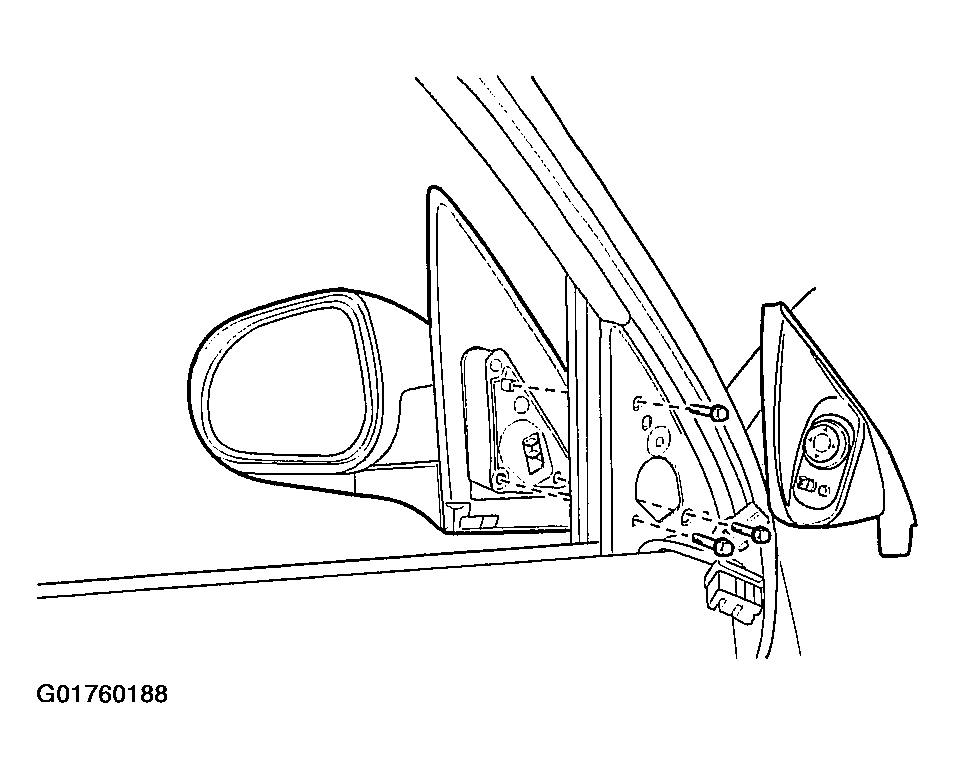

    Fig 1: Removing Bolts & Outside Rearview Mirror Assembly From Door
    G01760188Courtesy of SUZUKI OF AMERICA CORP.
