System with Front and Rear Power Windows, One or Both Front Windows Are Inoperative

CAUTION: When powering the window motors directly from a battery with jumper wires, make sure one of the jumper wires contains a fuse. If the jumpers are accidentally touched together, the fuse will prevent sparking and burns from sudden terminal heating.

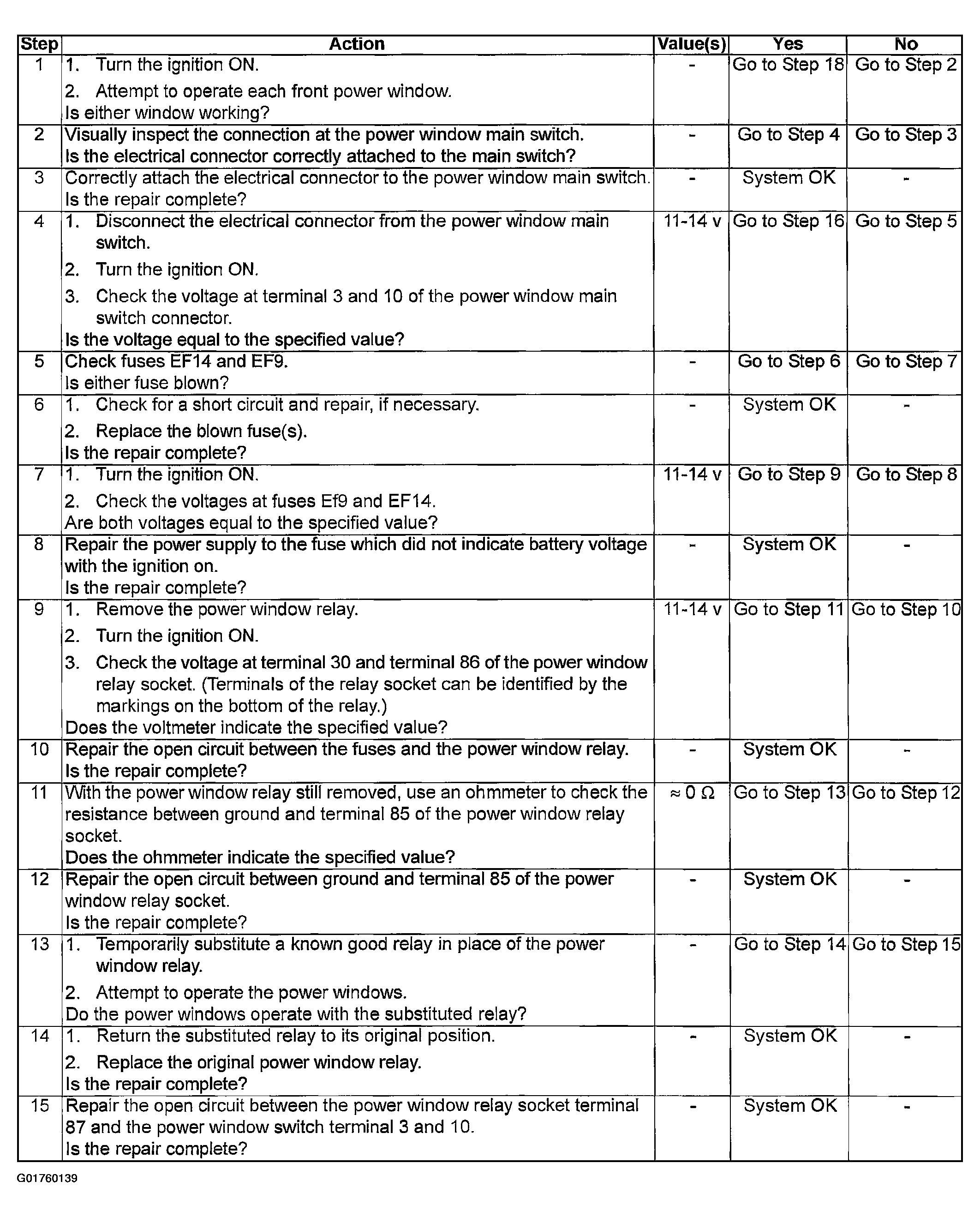

Fig 1: System With Front & Rear Power Windows, One Or Both Front Windows Are Inoperative - Diagnosis Table (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

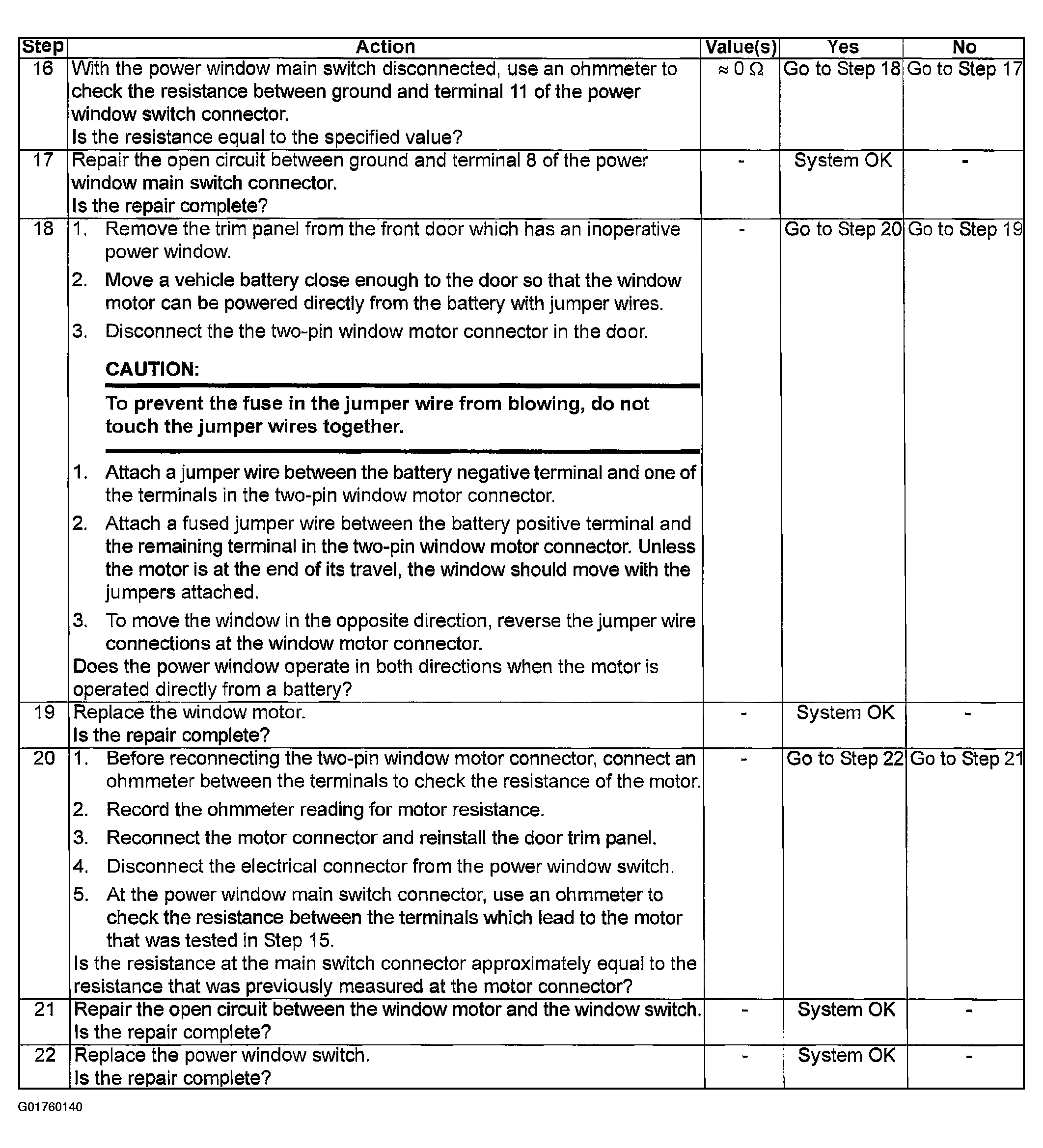

Fig 2: System With Front & Rear Power Windows, One Or Both Front Windows Are Inoperative - Diagnosis Table (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.
