Outside Rearview Mirror Defoggers

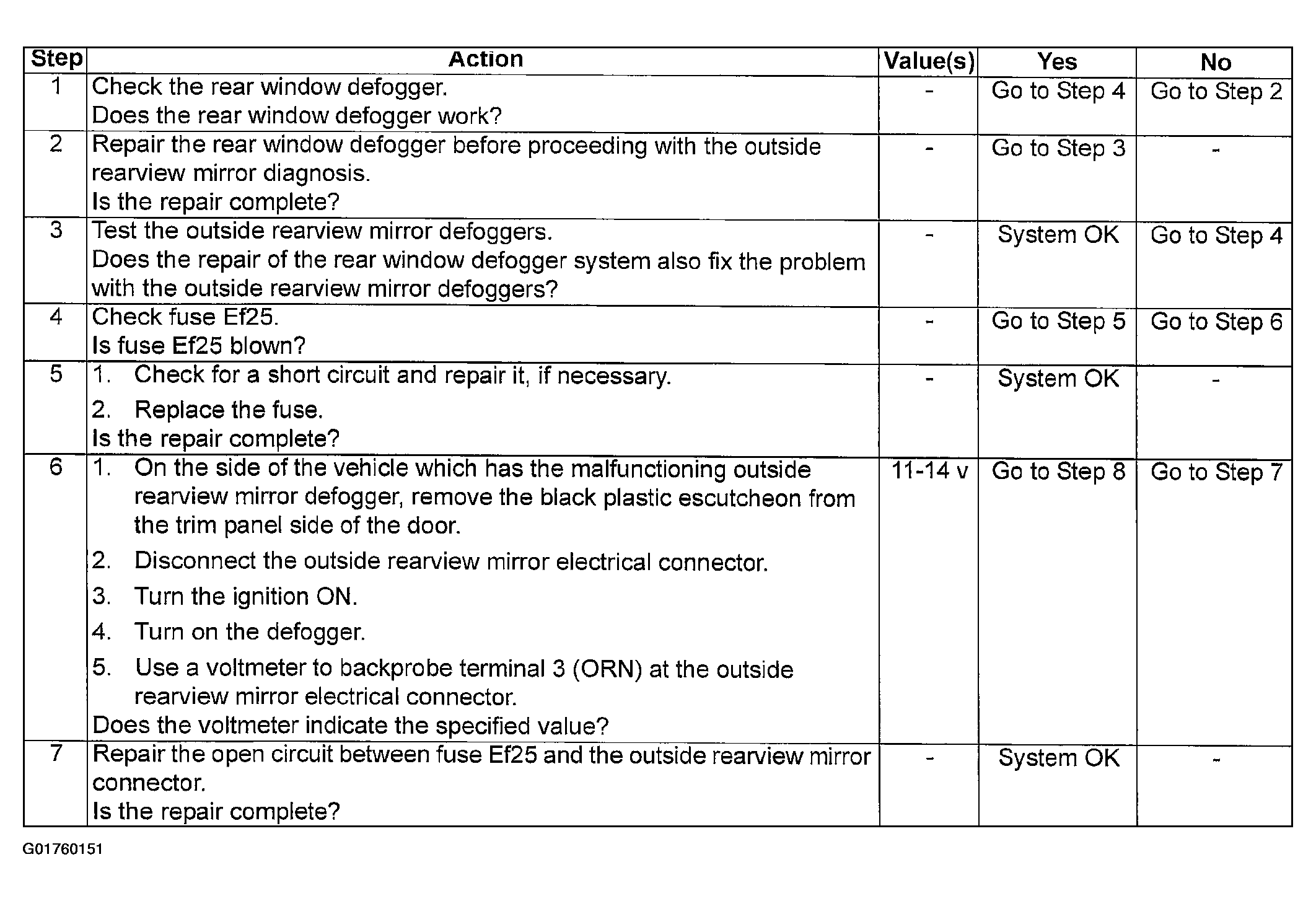

Fig 1: Identifying Outside Rearview Mirror Defoggers - Diagnosis Table (1 of 2)
Courtesy of SUZUKI OF AMERICA CORP.

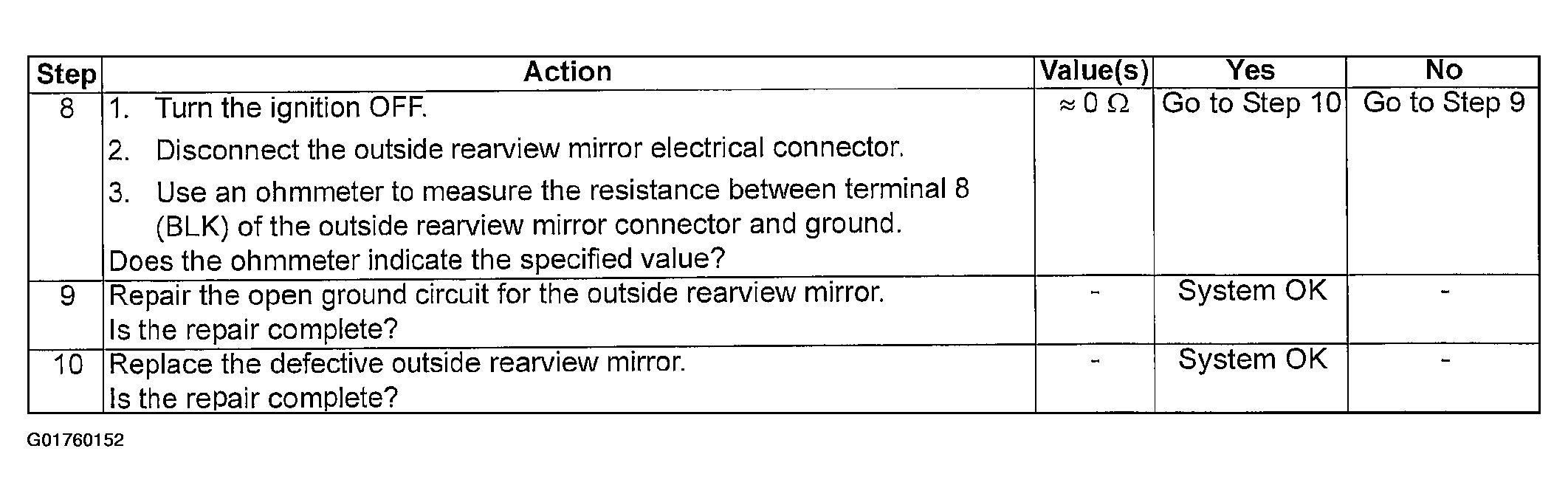

Fig 2: Outside Rearview Mirror Defoggers - Diagnosis Table (2 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
