Electric Control Outside Rearview Mirrors Do Not Adjust

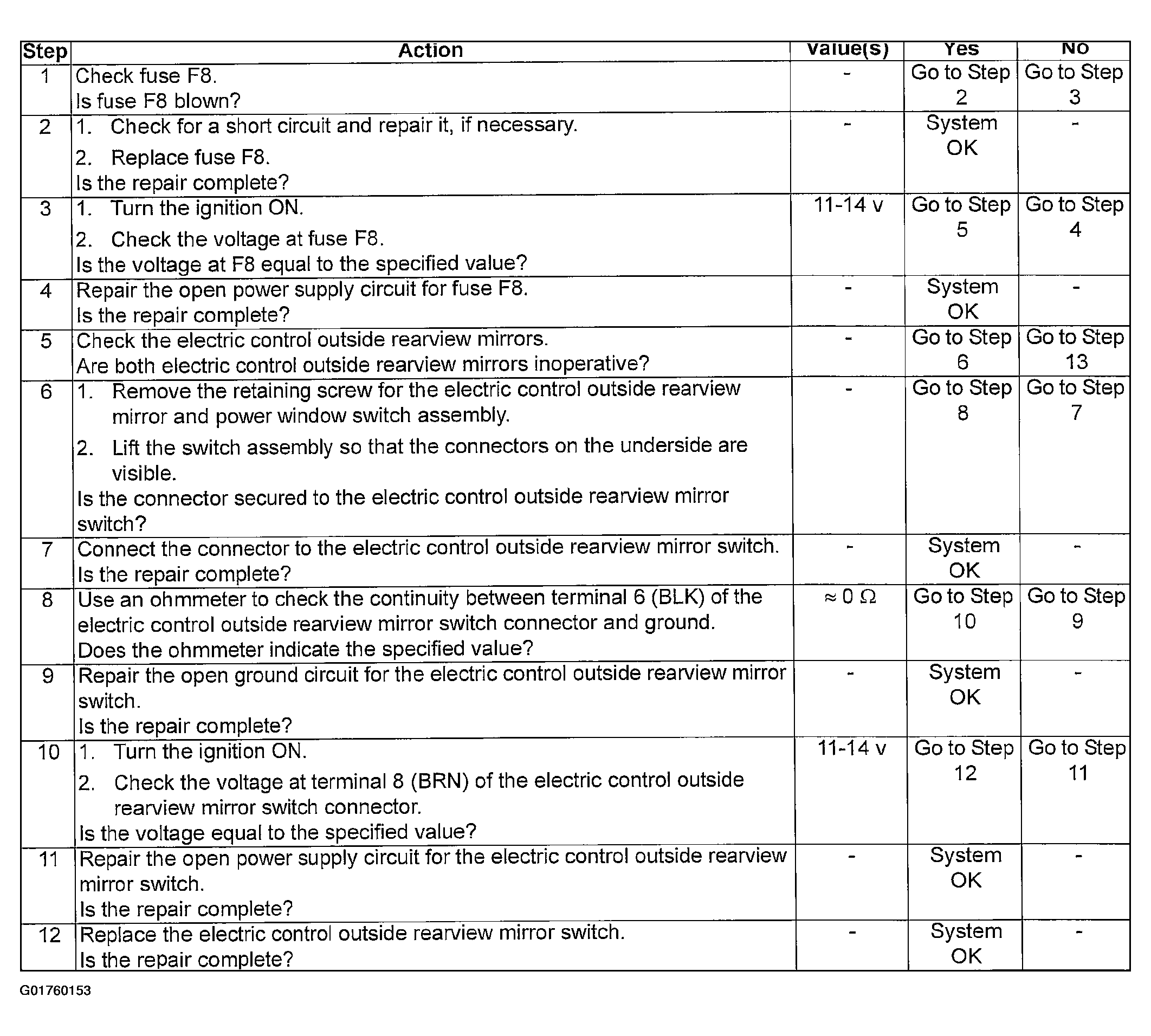

Fig 1: Electric Control Outside Rearview Mirrors Do Not Adjust - Diagnosis Table (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

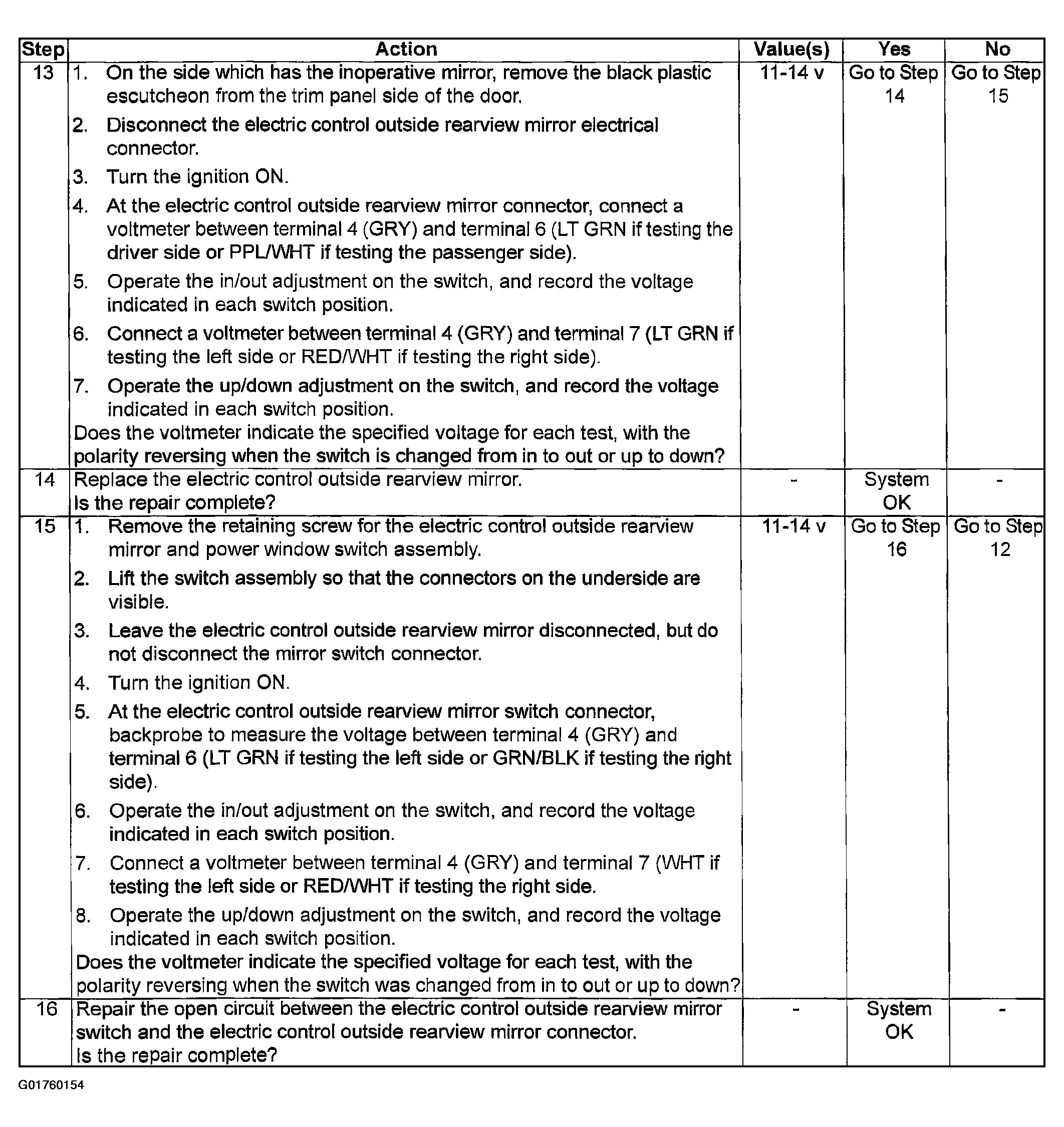

Fig 2: Electric Control Outside Rearview Mirrors Do Not Adjust - Diagnosis Table (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.
