Remote Keyless Entry and Anti-Theft System Circuit Wiring Diagram

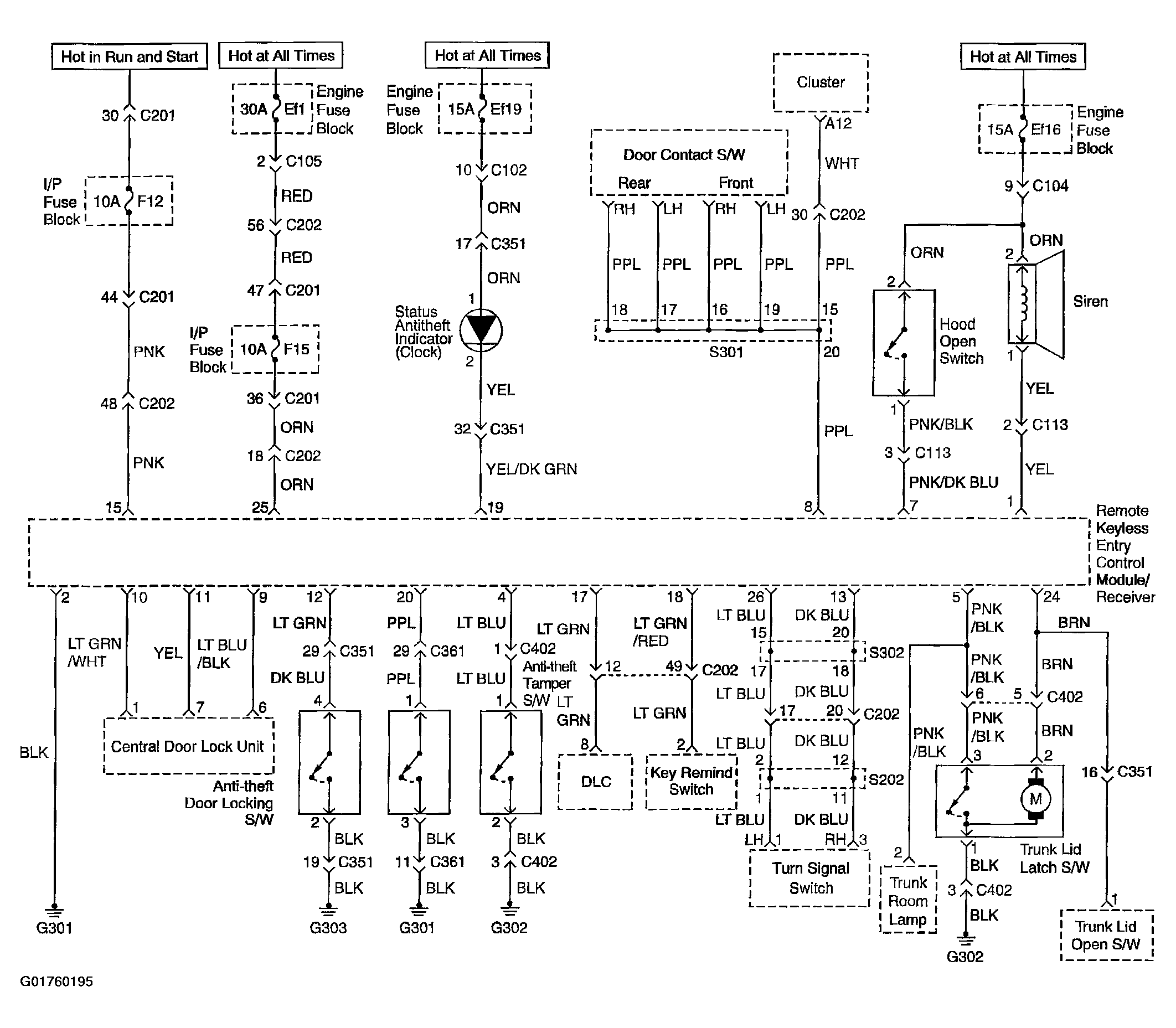

Fig 1: Identifying Remote Keyless Entry & Anti-Theft System Circuit Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
