Inside Lock Rod Removal and Installation: Removal

  1. Remove the door seal trim. Refer to DOOR SEAL TRIM REMOVAL AND INSTALLATION .
  2. Remove the inside door handle. Refer to Inside Door Handle Removal and Installation  .
  3. Disconnect the inside lock rods from the lock.

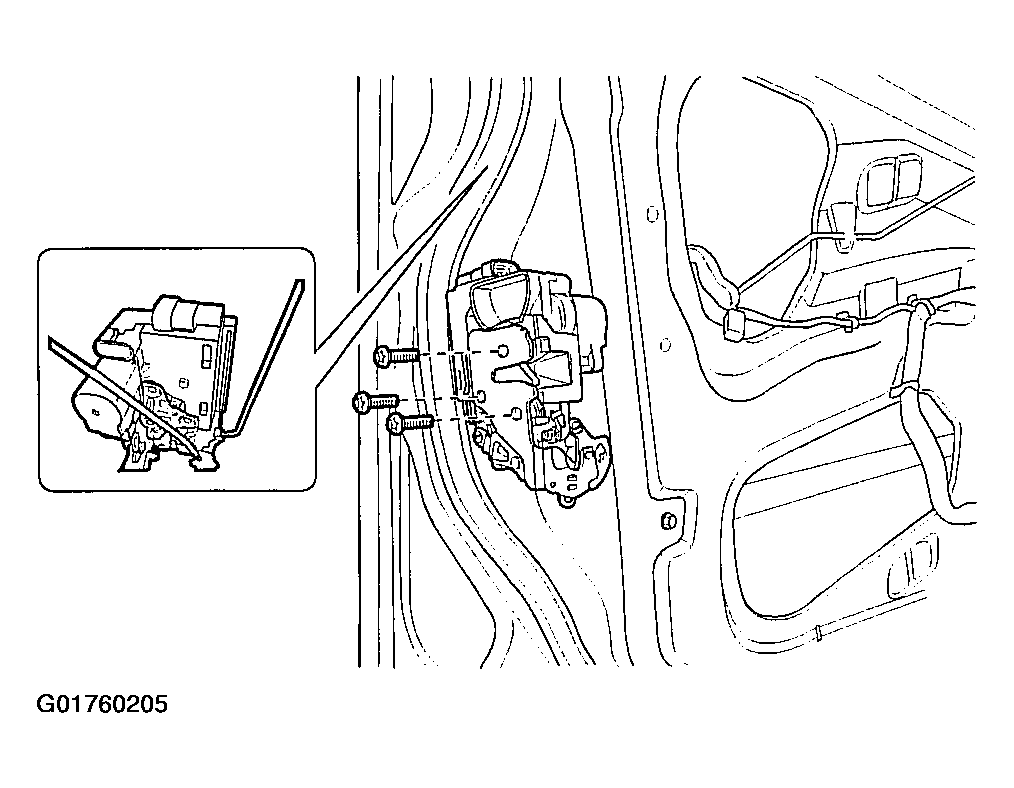

    Fig 1: Removing Inside Lock Rods
    G01760205Courtesy of SUZUKI OF AMERICA CORP.
