Wipers and Washer System Circuit Wiring Diagram

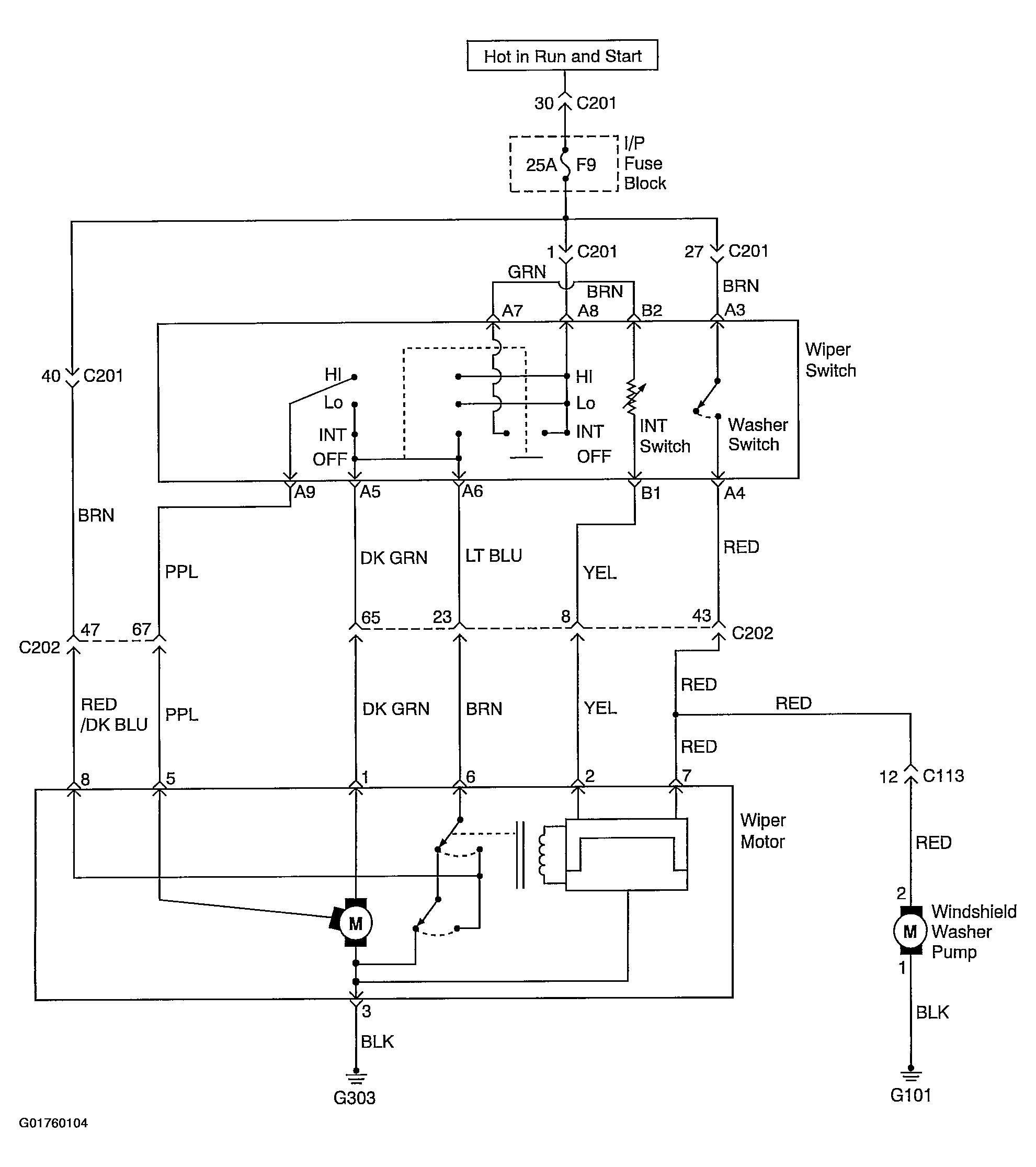

Fig 1: Identifying Wipers & Washer System Circuit Wiring Diagram
G01760104Courtesy of SUZUKI OF AMERICA CORP.
