Windshield Wiper Arm Removal and Installation: Removal

  1. Open the hood.
  2. Remove the cap to reveal the wiper arm nut, if necessary.
  3. Remove the nut from the wiper arm.
  4. Pull the wiper arm off.

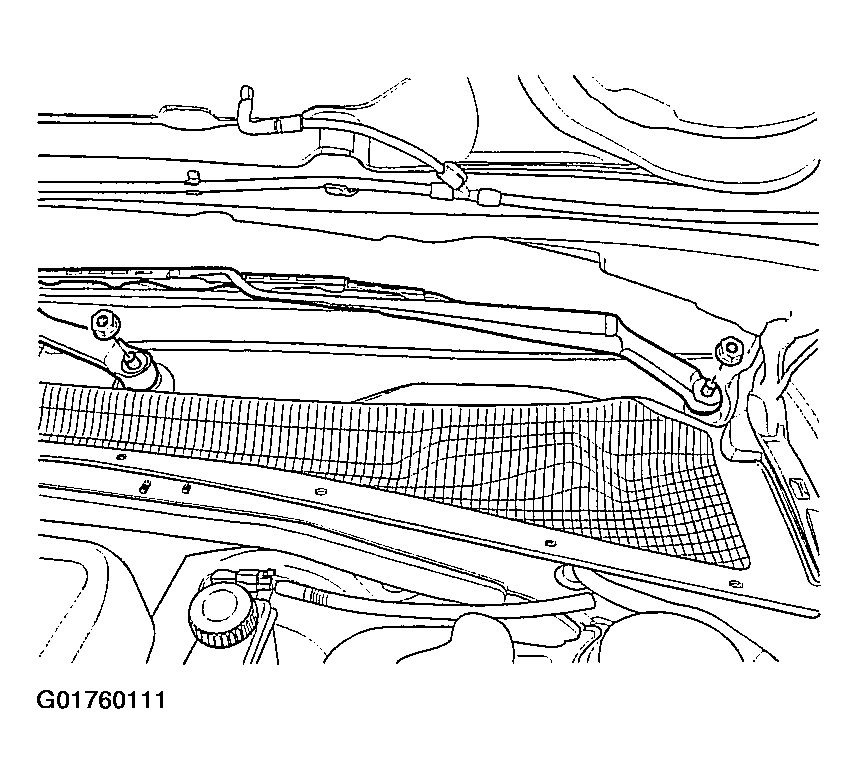

    Fig 1: Removing Wiper Arm
    G01760111Courtesy of SUZUKI OF AMERICA CORP.
