Windshield Wipers Diagnosis

Fig 1: Windshield Wipers Do Not Work At Any Speed - Diagnosis Table

Courtesy of SUZUKI OF AMERICA CORP.

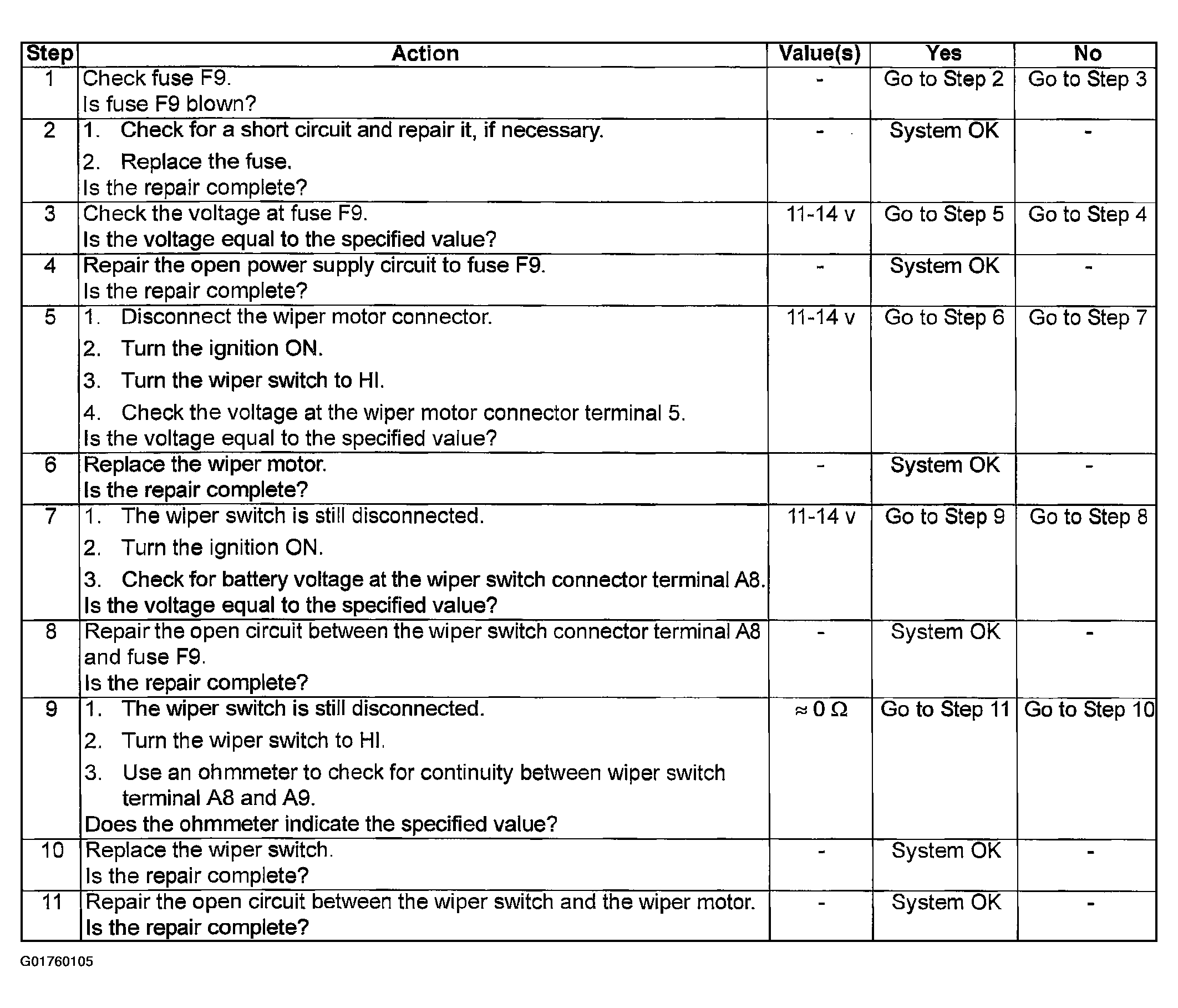

Fig 2: Wipers Do Not Work On HI Speed, LO Speed OK - Diagnosis Table

Courtesy of SUZUKI OF AMERICA CORP.

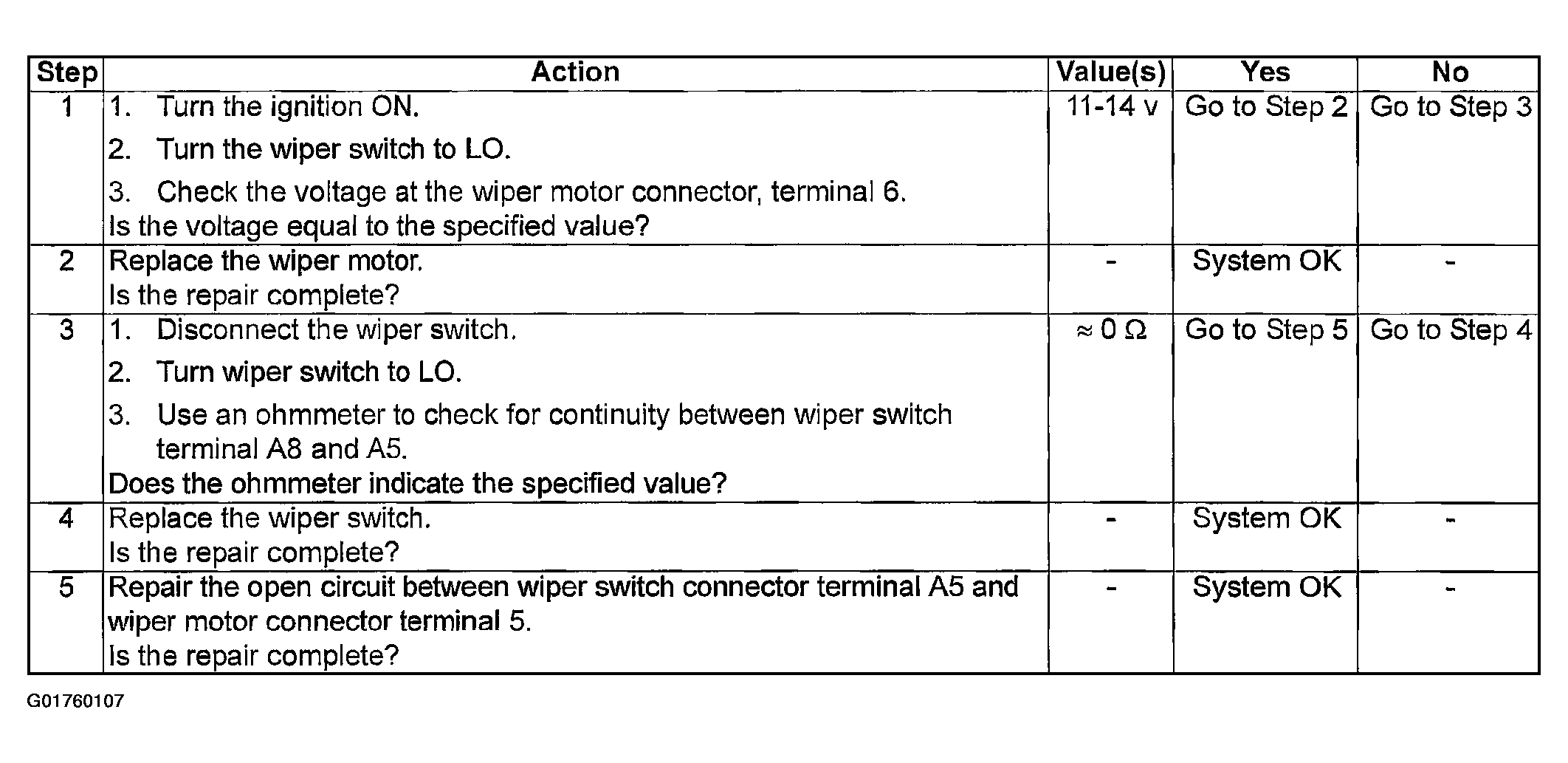

Fig 3: Wipers Do Not Work On LO Speed, HI Speed OK - Diagnosis Table

Courtesy of SUZUKI OF AMERICA CORP.

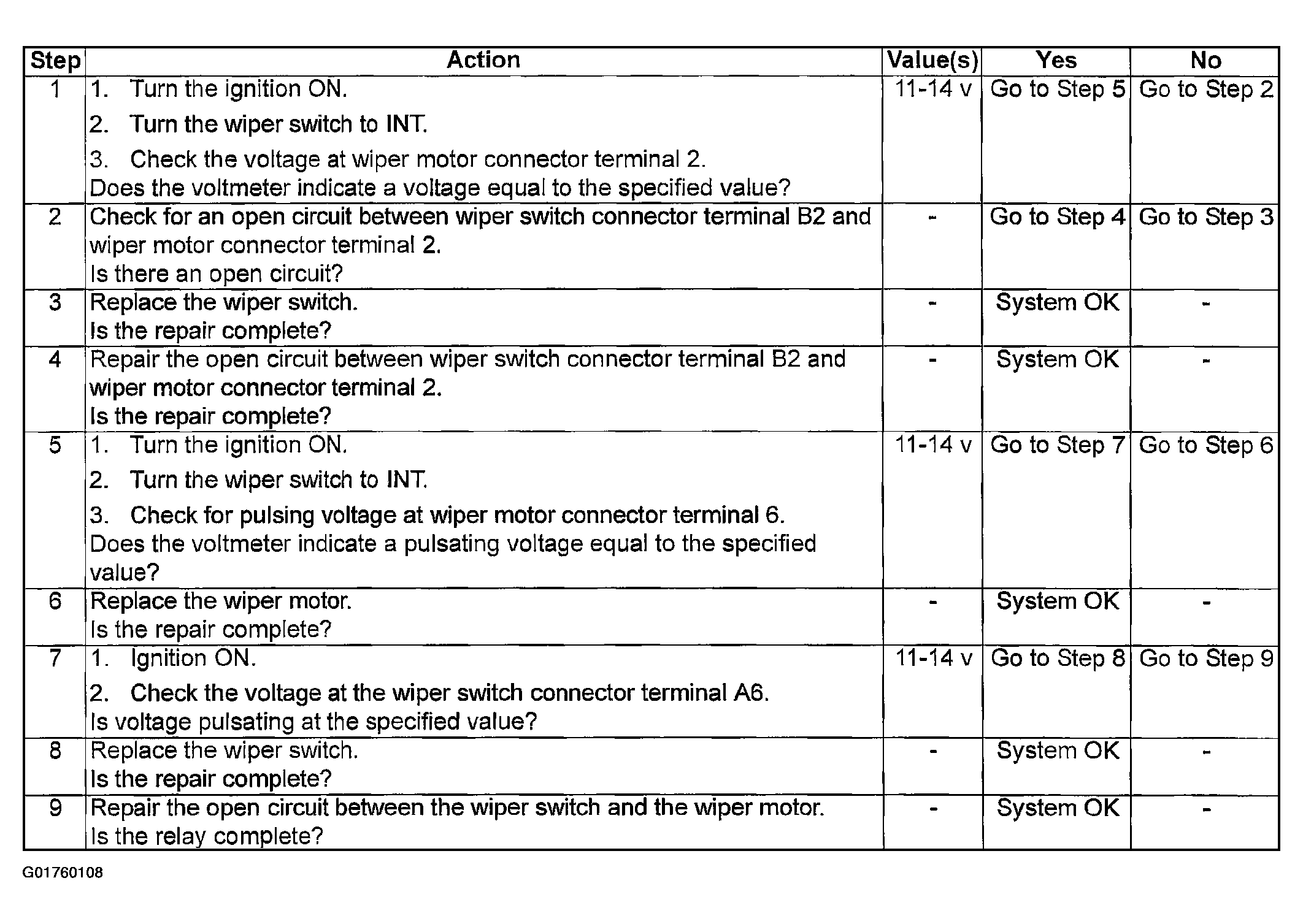

Fig 4: Wipers Do Not Work On Intermittent (INT), Other Speeds OK - Diagnosis Table

Courtesy of SUZUKI OF AMERICA CORP.

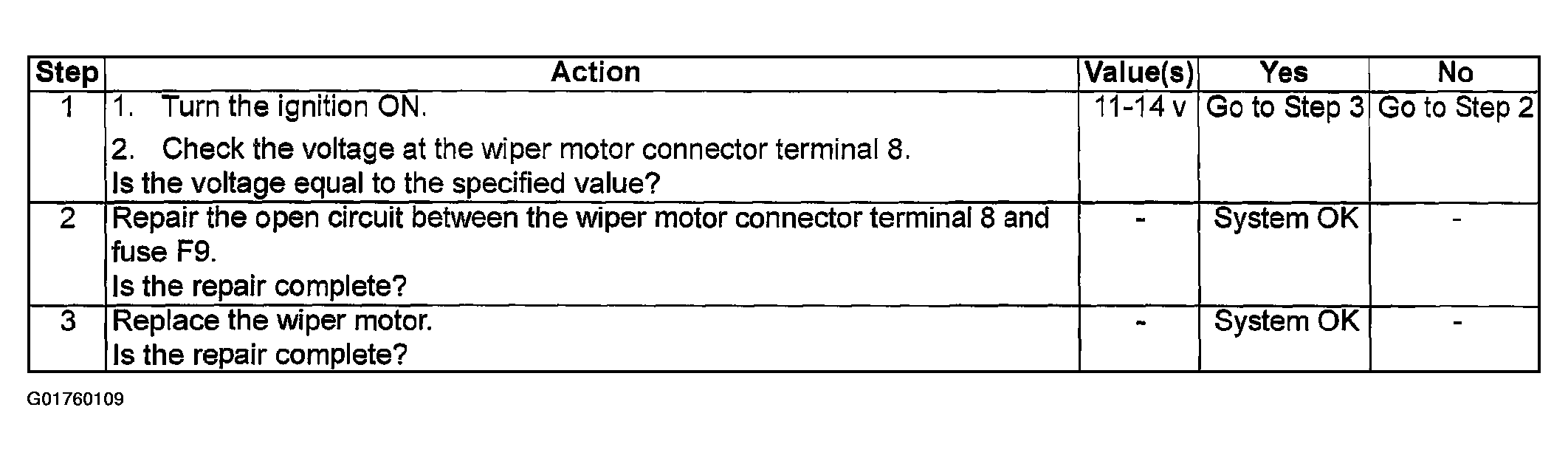

Fig 5: Windshield Wipers Do Not Return To Park Position - Diagnosis Table

Courtesy of SUZUKI OF AMERICA CORP.
