Daytime Running Lamp Module Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Remove the instrument panel under cover and the knee bolster.
  3. Remove the bolts and the daytime running lamp module.

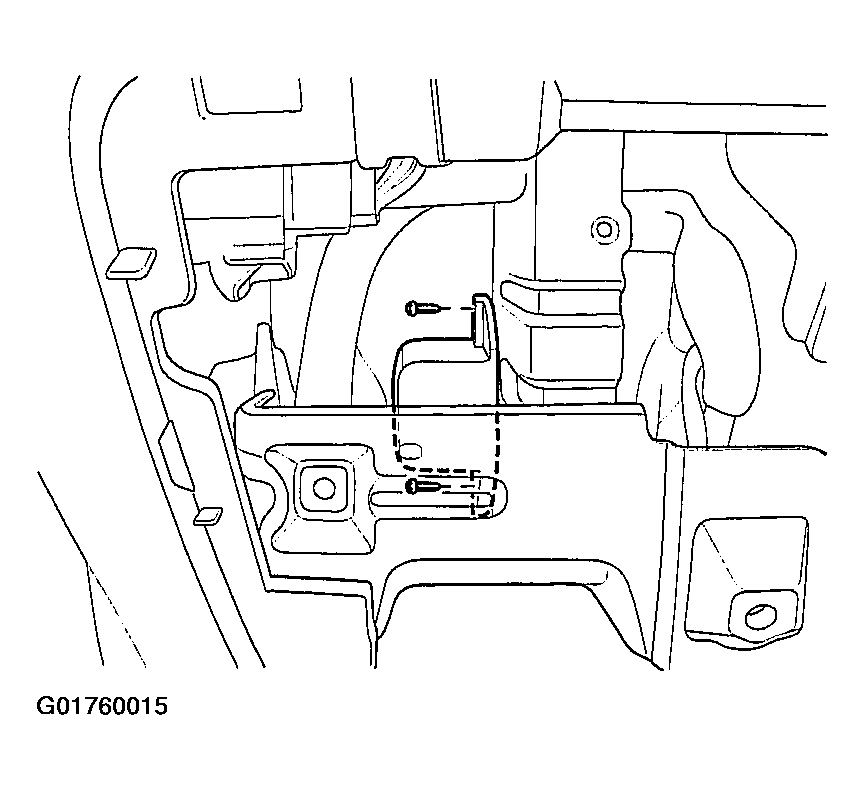

    4. Fig 1: Removing Bolts & Daytime Running Lamp Module
    G01760015Courtesy of SUZUKI OF AMERICA CORP.
  4. Disconnect the electrical connector.
