Tweeter Speakers Removal and Installation: Installation

  1. Connect the electrical connector.
  2. Install the tweeter speaker into the door trim panel.
  3. Connect the negative battery cable.

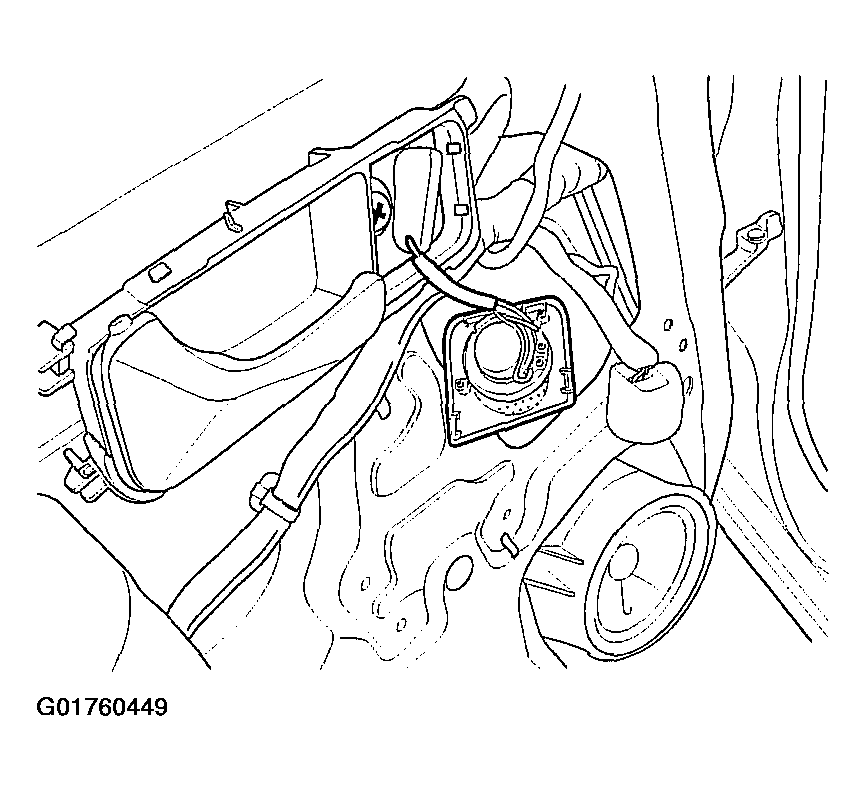

    Fig 1: Installing Tweeter Speaker
    G01760449Courtesy of SUZUKI OF AMERICA CORP.
